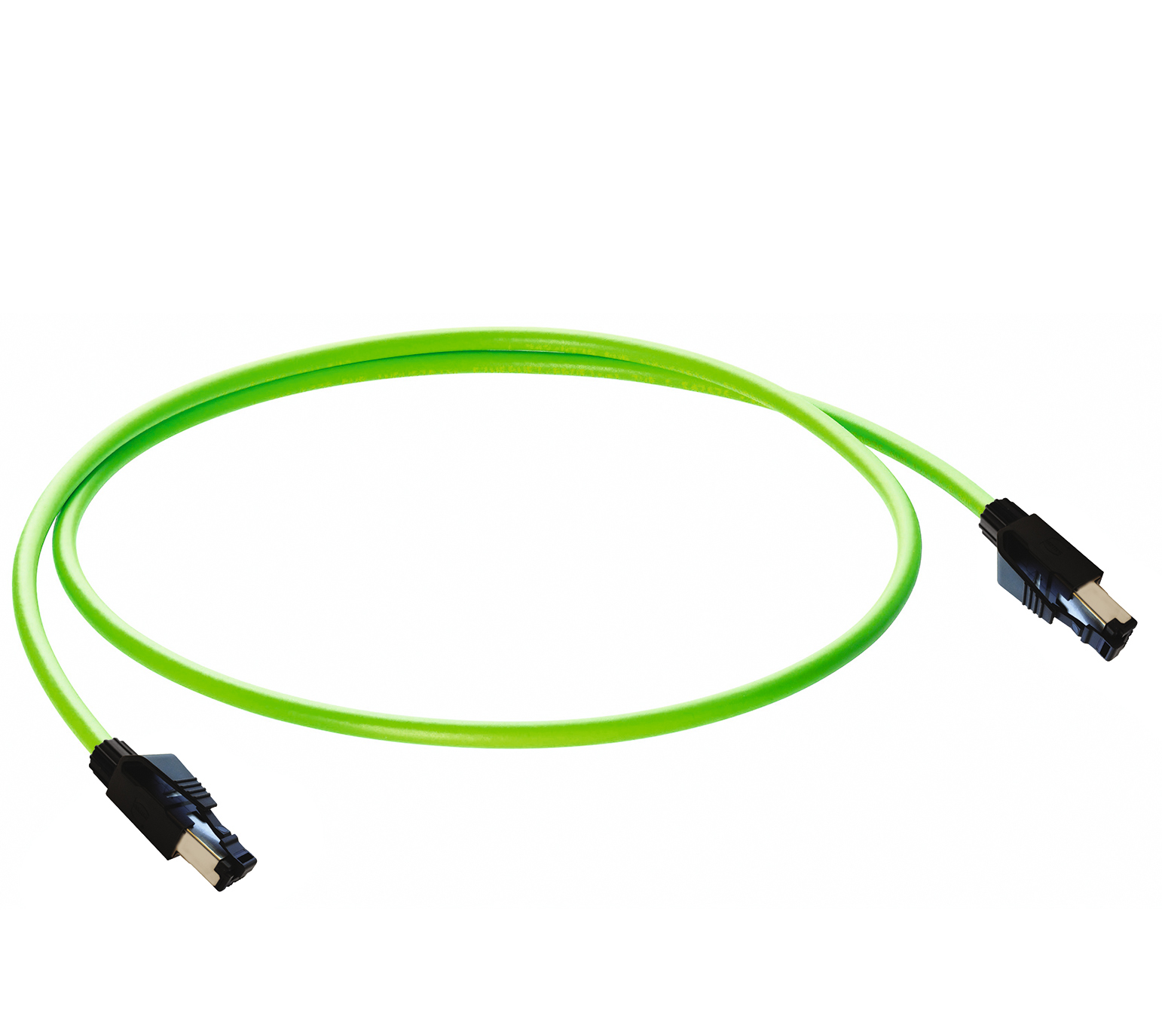

Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45-coded black RJ45 Field Attachable to male straight RJ45-coded black RJ45 Field Attachable, shielded, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm2
Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45-coded black RJ45 Field Attachable to male straight RJ45-coded black RJ45 Field Attachable, shielded, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 22
Part numbers
0985 S4742 502 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 2141 | 0985 S4742 502/90 M | Order online |
| 2121 | 0985 S4742 502/0,5 M | Order online |
| 2123 | 0985 S4742 502/1 M | Order online |
| 8833 | 0985 S4742 502/1,5 M | Order online |
| 2126 | 0985 S4742 502/2 M | Order online |
| 2127 | 0985 S4742 502/3 M | Order online |
| 2128 | 0985 S4742 502/5 M | Order online |
| 2130 | 0985 S4742 502/8 M | Order online |
| 2131 | 0985 S4742 502/10 M | Order online |
| 2132 | 0985 S4742 502/15 M | Order online |
| 2133 | 0985 S4742 502/20 M | Order online |
| 5413 | 0985 S4742 502/25 M | Order online |
| 2134 | 0985 S4742 502/30 M | Order online |
| 2136 | 0985 S4742 502/35 M | Order online |
| 9249 | 0985 S4742 502/40 M | Order online |
| 2137 | 0985 S4742 502/45 M | Order online |
| 2138 | 0985 S4742 502/50 M | Order online |
| 21102 | 0985 S4742 502/55 M | Order online |
| 2139 | 0985 S4742 502/60 M | Order online |
| 910002139 | 0985 S4742 502/60 M | Order online |
| 2140 | 0985 S4742 502/70 M | Order online |
| 12684 | 0985 S4742 502/80 M | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1 kV |
| Operating Voltage | 30 V AC / 42 V DC |
| Current Rating | 1.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
| Update and Revision | Revision Number: 0.55 Revision Date: 02-20-2026 |
Face View Side 1
| Pin 1 | yellow |
|---|---|
| Pin 2 | orange |
| Pin 3 | white |
| Pin 4 | blue |
Face View Side 2
| Pin 1 | yellow |
|---|---|
| Pin 2 | orange |
| Pin 3 | white |
| Pin 4 | blue |
Technical Data Side 1
| Side 1 Product Sub Family | RJ45 Field Attachable |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | RJ45 |
| Side 1 Contact Resistance | ≤ 20 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 750 |
| Ambient Temperature (Operation)* | - 40 °C - + 70 °C |
| Protection Degree / IP Rating** | IP20 |
| Side 1 Design Standard | IEC 60603-7 |
| Overvoltage Category | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Material | PA |
| Housing Color | Black |
| Flammability Class (Housing) | UL 94 V-0 |
| Shielding Material | Copper, nickel-plated |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 542 |
|---|---|
| Conductor Size | 0.38 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 30 mm |
| Minimal Bending Radius (Flexible Inst) | ˃ 60 mm |
| Cycles (Bending) | ˃ 5 M |
| Conductor Material | Cu |
| Cable Jacket Material | TPE |
| Cable Jacket Color | green matt similarly RAL 6018 |
| Cable Diameter D | ø 6.50 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.50 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation) | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| Flammability Class (Cable Jacket) | CM (UL 1685) |
| Cable Characteristics | Exclusion of dangerous materials; Sunlight resistance: UL 1581 sec. 1200 |
| Core Colors | white, blue, yellow, orange |
Technical Data Side 2
| Side 2 Product Sub Family | RJ45 Field Attachable |
|---|---|
| Side 2 Type of Contact/Gender | Male |
| Connector Design, Side 2 | Straight |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | RJ45 |
| Contact Resistance, Side 2 | ≤ 20 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 750 |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 70 °C |
| Protection Degree / IP Rating, Side 2** | IP20 |
| Design Standard, Side 2 | IEC 60603-7 |
| Overvoltage Category, Side 2 | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuSn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PA |
| Contact Bearer Color, Side 2 | Black |
| Flammability Class (Contact Bearer), Side 2 | UL 94 V-0 |
| Housing Material, Side 2 | PA |
| Housing Color, Side 2 | Black |
| Flammability Class (Housing), Side 2 | UL 94 V-0 |
| Shielding Material, Side 2 | Copper, nickel-plated |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | UL OIL RES I |
|---|
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
History
| Update and Revision | Revision Number: 0.55 Revision Date: 02-20-2026 |
|---|
