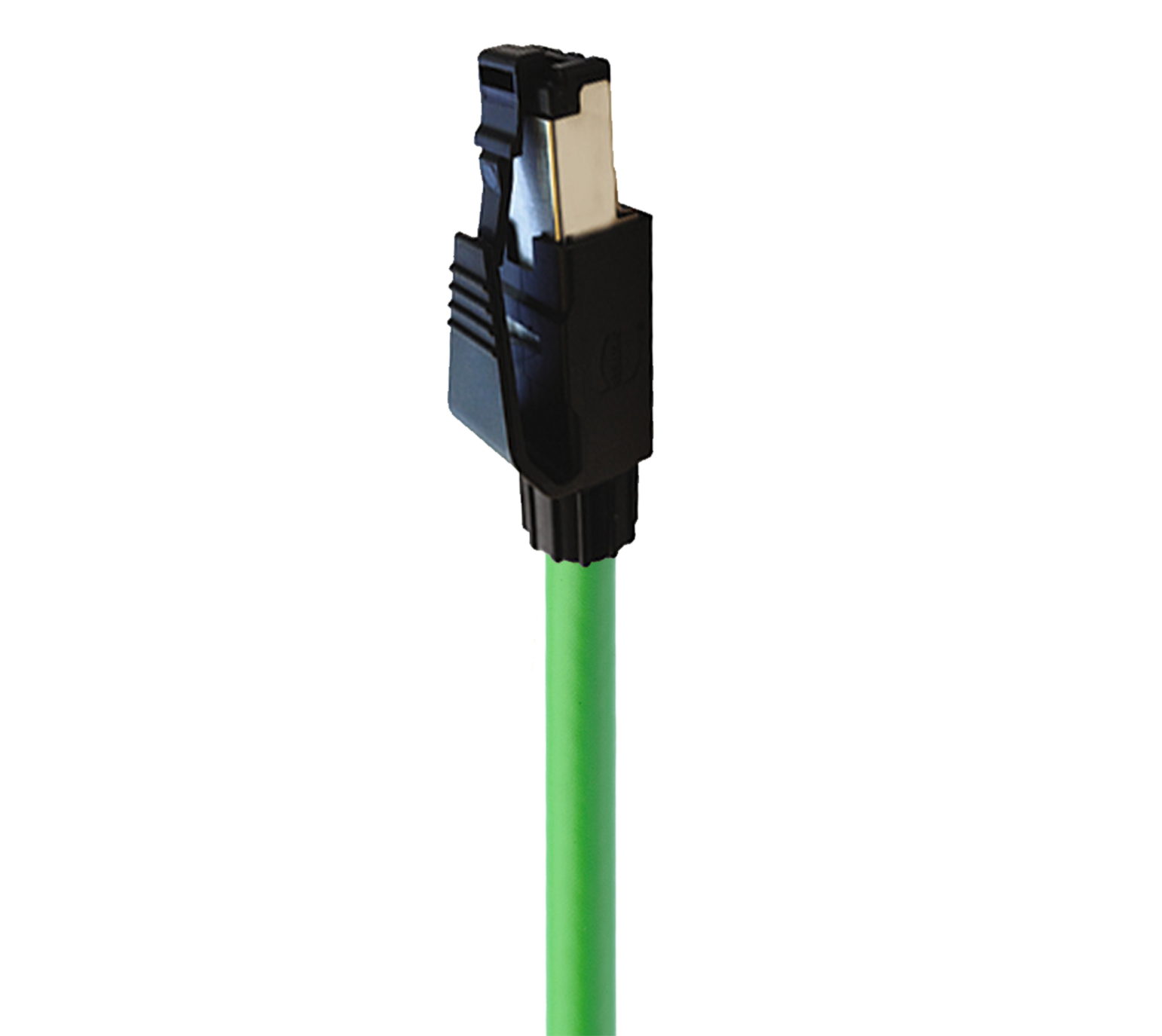

Fast Ethernet Cat5e Data Single-Ended Cordset: RJ45 Field Attachable, male, straight, 4-pin, RJ45-coded, shielded, black housing, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm2
Fast Ethernet Cat5e Data Single-Ended Cordset: RJ45 Field Attachable, male, straight, 4-pin, RJ45-coded, shielded, black housing, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
0985 S4742 501 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 6965 | 0985 S4742 501/0,5 M | 0.5 m | Order online |
| 6968 | 0985 S4742 501/3 M | 3 m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | RJ45 Field Attachable |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | RJ45 |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1 kV |
| Operating Voltage | 30 V AC / 42 V DC |
| Current Rating | 1.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
| Side 1 Contact Resistance | ≤ 20 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 750 |
| Ambient Temperature (Operation)* | - 40 °C - + 70 °C |
| Protection Degree / IP Rating** | IP20 |
| Side 1 Design Standard | IEC 60603-7 |
| Overvoltage Category | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | yellow |
|---|---|
| Pin 2 | orange |
| Pin 3 | white |
| Pin 4 | blue |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Material | PA |
| Housing Color | Black |
| Flammability Class (Housing) | UL 94 V-0 |
| Shielding Material | Copper, nickel-plated |
Cable Data
| Cable Number | 542 |
|---|---|
| Conductor Size | 0.38 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 30 mm |
| Minimal Bending Radius (Flexible Inst) | ˃ 60 mm |
| Cycles (Bending) | ˃ 5 M |
| Conductor Material | Cu |
| Cable Jacket Material | TPE |
| Cable Jacket Color | green matt similarly RAL 6018 |
| Cable Diameter D | ø 6.50 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.50 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation) | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| Flammability Class (Cable Jacket) | CM (UL 1685) |
| Cable Characteristics | Exclusion of dangerous materials; Sunlight resistance: UL 1581 sec. 1200 |
| Core Colors | white, blue, yellow, orange |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | UL OIL RES I |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
