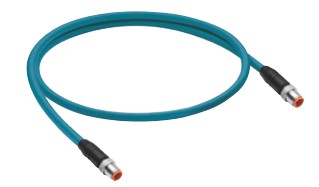

Industrial Ethernet double-ended cord set, high-flex, male, M12 to M12 straight, 4 Bonded-Twisted pairs, 24 AWG, TPE cable, stranded/shielded with teal jacket and orange inserts.
Industrial Ethernet double-ended cord set, high-flex, male, M12 to M12 straight, 4 Bonded-Twisted pairs, 24 AWG, TPE cable, stranded/shielded with teal jacket and orange inserts.
- Availability
- Global
- Status
- Active
- Orderable items
- 24
Part numbers
0985 856 100 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 900016027 | 0985 856 100/0.3M | 0.3 m | Order online |
| 900016291 | 0985 856 100/0.5M | 0.5 m | Order online |
| 900016028 | 0985 856 100/0.6M | 0.6 m | Order online |
| 900016029 | 0985 856 100/1M | 1 m | Order online |
| 900016030 | 0985 856 100/1.5M | 1.5 m | Order online |
| 900016031 | 0985 856 100/2M | 2 m | Order online |
| 900016032 | 0985 856 100/2.5M | 2.5 m | Order online |
| 900016034 | 0985 856 100/3M | 3 m | Order online |
| 900016035 | 0985 856 100/4M | 4 m | Order online |
| 900016036 | 0985 856 100/5M | 5 m | Order online |
| 900016037 | 0985 856 100/6M | 6 m | Order online |
| 900016038 | 0985 856 100/8M | 8 m | Order online |
| 900016039 | 0985 856 100/10M | 10 m | Order online |
| 900016040 | 0985 856 100/12M | 12 m | Order online |
| 900016041 | 0985 856 100/15M | 15 m | Order online |
| 900016042 | 0985 856 100/20M | 20 m | Order online |
| 900016043 | 0985 856 100/25M | 25 m | Order online |
| 900016044 | 0985 856 100/30M | 30 m | Order online |
| 900016279 | 0985 856 100/35M | 35 m | Order online |
| 900016045 | 0985 856 100/40M | 40 m | Order online |
| 900016046 | 0985 856 100/50M | 50 m | Order online |
| 900016047 | 0985 856 100/60M | 60 m | Order online |
| 900016048 | 0985 856 100/70M | 70 m | Order online |
| 900016049 | 0985 856 100/80M | 80 m | Order online |
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 600V according to UL 20626 |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
Technical Data Side 1
| Connector Design | Straight |
|---|---|
| Attachment Type | Coupling Screw |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | -40° C(-40°F) to +75° C(+167°F) |
| Protection Degree / IP Rating** | IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | Copper and Tin (CuSn) |
| Side 1 Contact Plating | Copper over Gold (Cu/Au) |
| Contact Bearer Material | PUR |
| Contact Bearer Color | Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | PUR, black |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Brass (Cu/Zn) |
| Attachment Plating | Nickel (Ni) |
Cable Data
| Cable Number | 856 |
|---|---|
| Conductor Size | 24 AWG |
| Number of Wires | 8 (4 twisted Pairs) |
| Minimal Bending Radius (Fixed Inst) | 3.0" |
| Cycles (Bending) | ˃ 5 M |
| Cable Jacket Material | Thermoplastic Elastomer (TPE) |
| Cable Jacket Color | Teal |
| Cable Diameter D | 7.6 mm nominal |
| Foil shield | Aluminum/polyester/aluminum foil, 100% coverage |
| UL Cable Type | Cat 5e |
| Flammability Class (Cable Jacket) | AWM 20626, C(UL)US CMR, CSA FT4 |
| Cable Characteristics | 600 V AWM 20626, C(UL) US CMR, CSA FT4 |
| Core Colors | white/orange, orange, white/blue, blue, white/green, green, white/brown,brown |
Technical Data Side 2
| Attachment Type, Side 2 | Coupling Screw |
|---|---|
| Number of Pins, Side 2 | 8 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 101 |
| Ambient Temperature (Operation), Side 2* | -40° C(-40°F) to +75° C(+167°F) |
| Protection Degree / IP Rating, Side 2** | IP67 |
| Design Standard, Side 2 | IEC 61076-2-101 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | Copper and Tin (CuSn) |
| Contact Plating, Side 2 | Copper over Gold (Cu/Au) |
| Contact Bearer Material, Side 2 | PUR |
| Flammability Class (Contact Bearer), Side 2 | UL 94 HB |
| Molded Body Material, Side 2 | PUR, black |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Attachment Material, Side 2 | Brass (Cu/Zn) |
| Attachment Plating, Side 2 | Nickel (Ni) |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
History
| Update and Revision | Revision Number: 0.19 Revision Date: 03-02-2026 |
|---|
