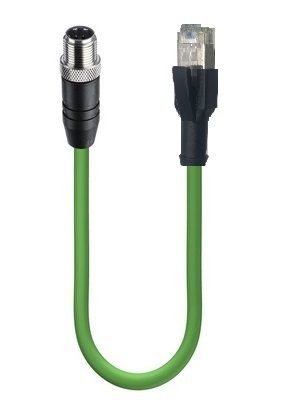

Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight D-coded black M12 standard to male straight RJ45-coded black RJ45, shielded, 30 V AC / 42 V DC, 1.5 A; PUR green cable, 4-wires, 4x0.34 mm2
Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight D-coded black M12 standard to male straight black RJ45, shielded, 30 V AC / 42 V DC, 1.5 A; PUR green cable, 4-wires, 4x0.34 mm2
- Availability
- Asia Pacific
- Status
- Active
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 30 V AC / 42 V DC |
| Current Rating | 1.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Coupling Screw |
| Number of Pins | 4 |
| Coding, Side 1 | D |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP69k |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PBT |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | CuZn, tin-plated |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
Cable Data
| Cable Number | 342 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | Minimum 2 Million |
| Cable Jacket Material | PUR |
| Cable Jacket Color | green matt similarly RAL 6018 |
| Cable Diameter D | ø 6.50 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.58 ± 0.10 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 50 °C + 80 °C |
| Flammability Class (Cable Jacket) | FT-2 |
| Core Colors | White, Blue, Yellow & Orange |
Technical Data Side 2
| Side 2 Product Sub Family | RJ45 |
|---|---|
| Side 2 Type of Contact/Gender | Male |
| Connector Design, Side 2 | Straight |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | RJ45 |
| Ambient Temperature (Operation), Side 2* | - 20 °C + 70 °C |
| Protection Degree / IP Rating, Side 2** | IP20 |
| Housing Material, Side 2 | Copper alloy PC - Polycarbonate, UL 94V-2 rated |
| Attachment Plating, Side 2 | Gold Plating in contact area |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|
History
| Update and Revision | Revision Number: 0.12 Revision Date: 07-13-2023 |
|---|
