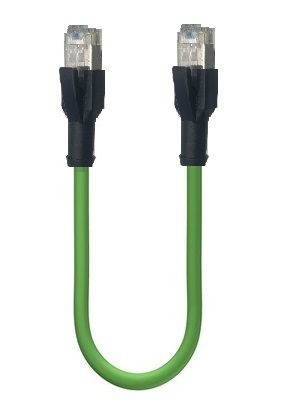

Fast Ethernet Cat5e Data Double-Ended Cordset, male straight black RJ45 to male straight black RJ45, shielded, PUR green cable, 4-wires, 4x0.34 mm2
Fast Ethernet Cat5e Data Double-Ended Cordset, male straight black RJ45 to male straight black RJ45, shielded, PUR green cable, 4-wires, 4x0.34 mm2
- Availability
- Asia Pacific
- Status
- Active
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | RJ45 Male |
| Shielding Type | Shielded |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
Technical Data Side 1
| Side 1 Product Sub Family | RJ45 |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | RJ45 |
| Ambient Temperature (Operation)* | - 20 °C + 70 °C |
| Protection Degree / IP Rating** | IP20 |
| Housing Material | Copper alloy PC - Polycarbonate, UL 94V-2 rated |
| Attachment Plating | Gold Plating in contact area |
Cable Data
| Cable Number | 342 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | Minimum 2 Million |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | green matt similarly RAL 6018 |
| Cable Diameter D | ø 6.50 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.58 ± 0.10 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 50 °C + 80 °C |
| Flammability Class (Cable Jacket) | FT-2 |
| Core Colors | White, Blue, Yellow & Orange |
Technical Data Side 2
| Side 2 Product Sub Family | RJ45 |
|---|---|
| Side 2 Type of Contact/Gender | Male |
| Connector Design, Side 2 | Straight |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | RJ45 |
| Ambient Temperature (Operation), Side 2* | - 20 °C + 70 °C |
| Protection Degree / IP Rating, Side 2** | IP20 |
| Housing Material, Side 2 | Copper alloy PC - Polycarbonate, UL 94V-2 rated |
| Attachment Plating, Side 2 | Gold Plating in contact area |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|
History
| Update and Revision | Revision Number: 0.12 Revision Date: 07-13-2023 |
|---|
