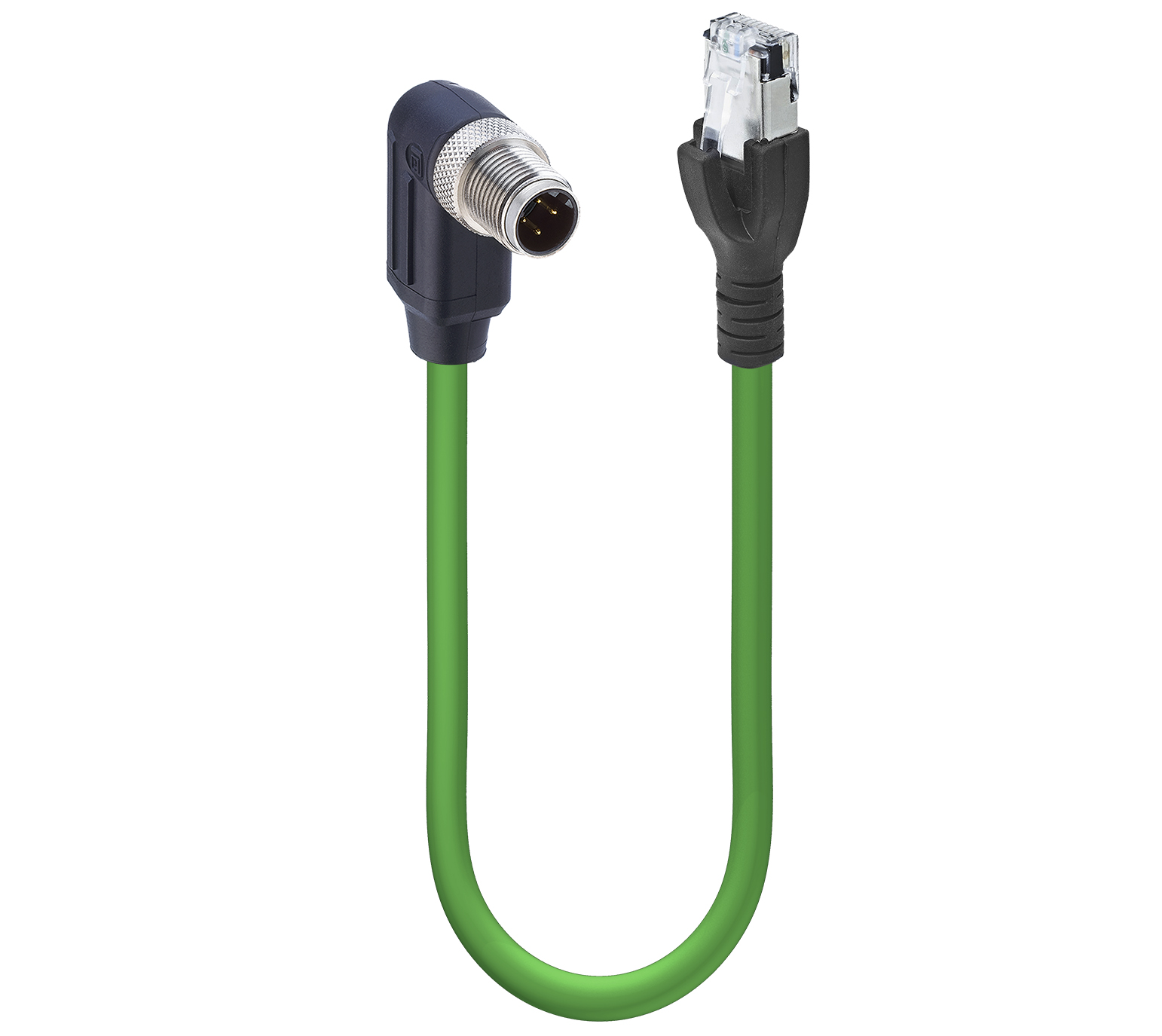

Fast Ethernet Cat5e Data Double-Ended Cordset: Male angled D-coded black M12 Standard to male straight RJ45-coded black RJ45, shielded, 30 V AC / 42 V DC, 1.5 A; PUR green cable, 4-wires, 2x2x0.34 mm2
Fast Ethernet Cat5e Data Double-Ended Cordset: Male angled D-coded black M12 Standard to male straight RJ45-coded black RJ45, shielded, 30 V AC / 42 V DC, 1.5 A; PUR green cable, 4-wires, 2x2x0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 23
Part numbers
0985 342 134 Overmolded is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 12150 | 0985 342 134/0,3 M umspritzt | 0.3 m | Order online |
| 12151 | 0985 342 134/0,5 M umspritzt | 0.5 m | Order online |
| 11995 | 0985 342 134/0,6 M Umspritzt | 0.6 m | Order online |
| 11994 | 0985 342 134/1 M Umspritzt | 1 m | Order online |
| 11983 | 0985 342 134/1,5 M Umspritzt | 1.5 m | Order online |
| 12152 | 0985 342 134/2 M umspritzt | 2 m | Order online |
| 11981 | 0985 342 134/2,5 M Umspritzt | 2.5 m | Order online |
| 12153 | 0985 342 134/3 M umspritzt | 3 m | Order online |
| 11979 | 0985 342 134/4 M Umspritzt | 4 m | Order online |
| 12156 | 0985 342 134/5 M umspritzt | 5 m | Order online |
| 11978 | 0985 342 134/6 M Umspritzt | 6 m | Order online |
| 11976 | 0985 342 134/7,5 M Umspritzt | 7.5 m | Order online |
| 11974 | 0985 342 134/8 M Umspritzt | 8 m | Order online |
| 11964 | 0985 342 134/9 M Umspritzt | 9 m | Order online |
| 12157 | 0985 342 134/10 M umspritzt | 10 m | Order online |
| 12158 | 0985 342 134/15 M umspritzt | 15 m | Order online |
| 12110 | 0985 342 134/20 M Umspritzt | 20 m | Order online |
| 11934 | 0985 342 134/25 M Umspritzt | 25 m | Order online |
| 11948 | 0985 342 134/30 M Umspritzt | 30 m | Order online |
| 11950 | 0985 342 134/35 M Umspritzt | 35 m | Order online |
| 11952 | 0985 342 134/40 M Umspritzt | 40 m | Order online |
| 11953 | 0985 342 134/45 M Umspritzt | 45 m | Order online |
| 11954 | 0985 342 134/50 M Umspritzt | 50 m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1 kV |
| Operating Voltage | 30 V AC / 42 V DC |
| Current Rating | 1.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
| Update and Revision | Revision Number: 0.49 Revision Date: 02-20-2026 |
Face View Side 1
| Pin 1 | yellow |
|---|---|
| Pin 2 | white |
| Pin 3 | orange |
| Pin 4 | blue |
Face View Side 2
| Pin 1 | yellow |
|---|---|
| Pin 2 | orange |
| Pin 3 | white |
| Pin 4 | blue |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Angled |
| Attachment Type | Coupling Screw |
| Number of Pins | 4 |
| Coding, Side 1 | D |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP68 (1 m / 24 h), IP69K |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PBT |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 V-2 |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | Housing: GD-Zn, nickel-plated, Sleeve: CuZn, tin-plated |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 342 |
|---|---|
| Conductor Size | 2x2x0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 2 M |
| Cycles (Torsion) | ˃ 2 M @ ± 360 °/1 m |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | green matt similarly RAL 6018 |
| Cable Diameter D | ø 6.50 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.58 ± 0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant |
| Cable Characteristics | Exclusion of dangerous materials; Line construction similar PROFInet C-Specification; Line requirements similar: IEC 11801, IEC 61156 (CAT 5), EN 50173, EN 50288-2-2 (100MHz-cable and EIA/TIA 568 B (CAT 5e), Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; LABS-free of lacquer wetting disturbing substances; Coldness flexibility |
| Core Colors | star quad: white & blue, yellow & orange |
Technical Data Side 2
| Side 2 Product Sub Family | RJ45 |
|---|---|
| Side 2 Type of Contact/Gender | Male |
| Connector Design, Side 2 | Straight |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | RJ45 |
| Contact Resistance, Side 2 | ≤ 20 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 750 |
| Ambient Temperature (Operation), Side 2* | - 25 °C - + 60 °C |
| Protection Degree / IP Rating, Side 2** | IP20 |
| Design Standard, Side 2 | IEC 60603-7 |
| Overvoltage Category, Side 2 | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | Copper Alloy |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PC |
| Contact Bearer Color, Side 2 | Clear |
| Flammability Class (Contact Bearer), Side 2 | UL 94 V-0 |
| Molded Body Material, Side 2 | PVC |
| Molded Body Color, Side 2 | Black |
| Shielding Material, Side 2 | Copper, nickel-plated |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
|---|---|
| Oil Resistance | EN 60811 Part 2-1 |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
History
| Update and Revision | Revision Number: 0.49 Revision Date: 02-20-2026 |
|---|
