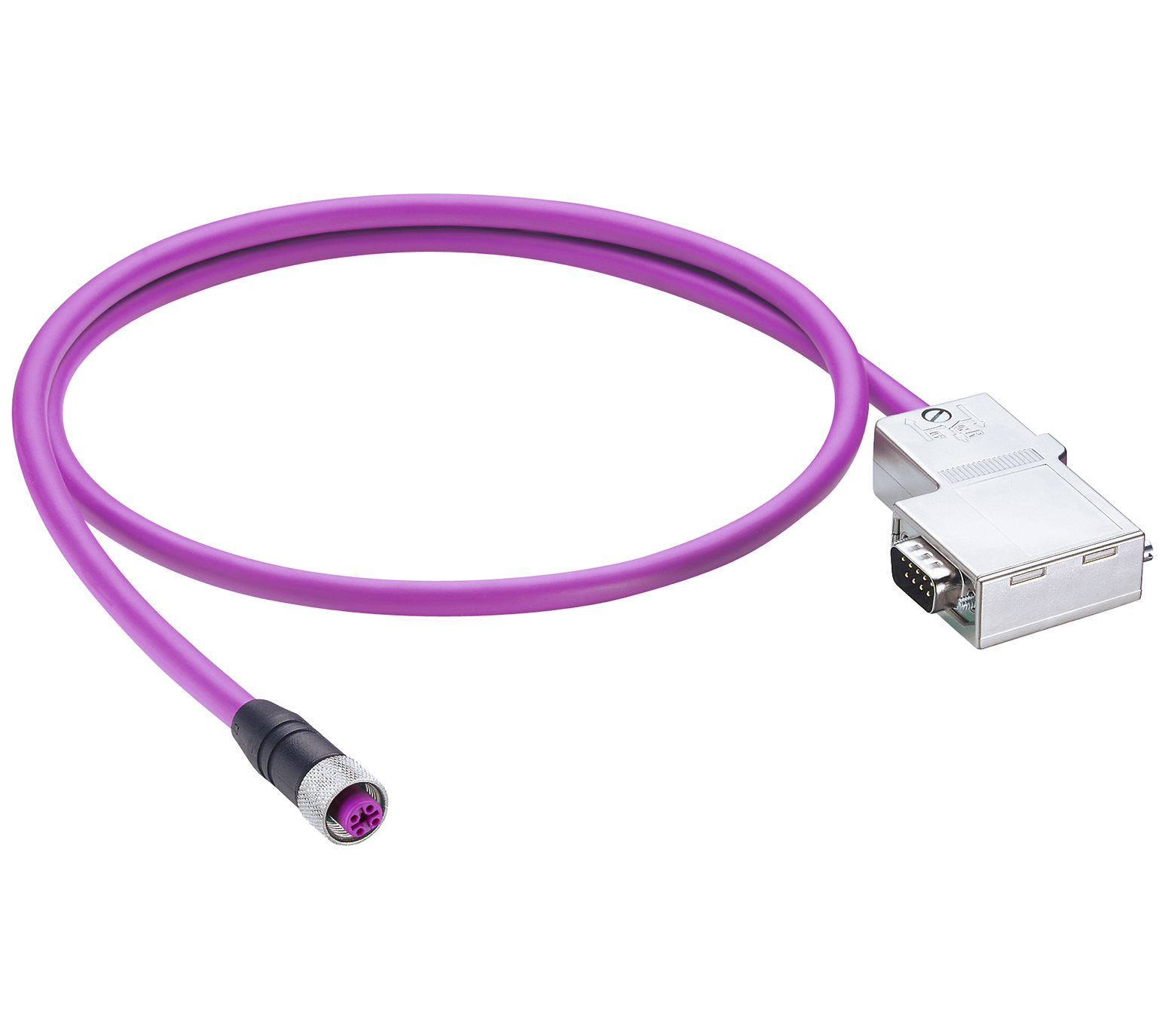

PROFIBUS Data Double-Ended Cordset: Male angled SUB-D-coded SUB-D to female straight B-coded black M12 Standard, shielded, + 4.75 ... +5.25 V DC, 12.5 mA; PUR violet cable, 2-wires, 0.34 mm2
PROFIBUS Data Double-Ended Cordset: Male angled SUB-D-coded SUB-D to female straight B-coded black M12 Standard, shielded, + 4.75 ... +5.25 V DC, 12.5 mA; PUR violet cable, 2-wires, 0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 16
Part numbers
0975 254 104 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 86914 | 0975 254 104/0,3 M | 0.3 M | Order online |
| 86915 | 0975 254 104/0,6 M | 0.6 M | Order online |
| 49301 | 0975 254 104/1 M | 1 M | Order online |
| 900000874 | 0975 254 104/1 M | 1 m | Order online |
| 47811 | 0975 254 104/2 M | 2 M | Order online |
| 900001971 | 0975 254 104/2 M | 2 m | Order online |
| 49254 | 0975 254 104/3 M | 3 M | Order online |
| 47938 | 0975 254 104/5 M | 5 M | Order online |
| 10570 | 0975 254 104/8 M | 8 M | Order online |
| 47939 | 0975 254 104/10 M | 10 M | Order online |
| 900001032 | 0975 254 104/10 M | 10 m | Order online |
| 47940 | 0975 254 104/15 M | 15 M | Order online |
| 47941 | 0975 254 104/20 M | 20 M | Order online |
| 47942 | 0975 254 104/25 M | 25 M | Order online |
| 7462 | 0975 254 104/30 M | 30 M | Order online |
| 1205 | 0975 254 104/40 M | 40 M | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Operating Voltage | + 4.75 ... +5.25 V DC |
| Current Rating | 12.5 mA |
| Data Transmission Type | PROFIBUS |
| Update and Revision | Revision Number: 0.59 Revision Date: 02-20-2026 |
Face View Side 1
| Pin 1 | n.c. |
|---|---|
| Pin 2 | n.c. |
| Pin 3 | green |
| Pin 4 | n.c. |
| Pin 5 | n.c. |
| Pin 6 | n.c. |
| Pin 7 | n.c. |
| Pin 8 | red |
| Pin 9 | n.c. |
Face View Side 2
| Pin 1 | n.c. |
|---|---|
| Pin 2 | green |
| Pin 3 | n.c. |
| Pin 4 | red |
| Pin 5 | n.c. |
Technical Data Side 1
| Side 1 Product Sub Family | SUB-D |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Angled |
| Number of Pins | 9 |
| Coding, Side 1 | SUB-D |
| Side 1 Contact Resistance | ≤ 20 mOhm |
| Ambient Temperature (Operation)* | 0 °C - + 60 °C |
| Protection Degree / IP Rating** | IP40 |
| Overvoltage Category | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuZn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | ABS, nickel-plated |
| Molded Body Color | Nickel |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 254 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 2 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | violet matt similarly RAL 4001 |
| Cable Diameter D | ø 7.60 ± 0.30 mm |
| Wire Insulation Material | PE |
| Insulated Wire Diameter | ø 2.60 ± 0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant |
| Cable Characteristics | Exclusion of dangerous materials; Line fulfills the transmission values RS485 (Type A) of the PROFIBUS user organization; Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; Coldness flexibility |
| Core Colors | red, green |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Standard |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Nut |
| Number of Pins, Side 2 | 5 |
| Coding, Side 2 | B |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 25 °C - + 80 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-101 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuZn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | TPU |
| Contact Bearer Color, Side 2 | Violett |
| Flammability Class (Contact Bearer), Side 2 | UL 94 HB |
| Molded Body Material, Side 2 | TPU |
| Molded Body Color, Side 2 | Black |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Attachment Material, Side 2 | CuZn |
| Attachment Plating, Side 2 | Nickel-plated |
| Shielding Material, Side 2 | CuZn, tin-plated |
| Fastening Torque (Attachment), Side 2 | M 12x1: (50-60) Ncm, hand-tight |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
|---|
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
History
| Update and Revision | Revision Number: 0.59 Revision Date: 02-20-2026 |
|---|
