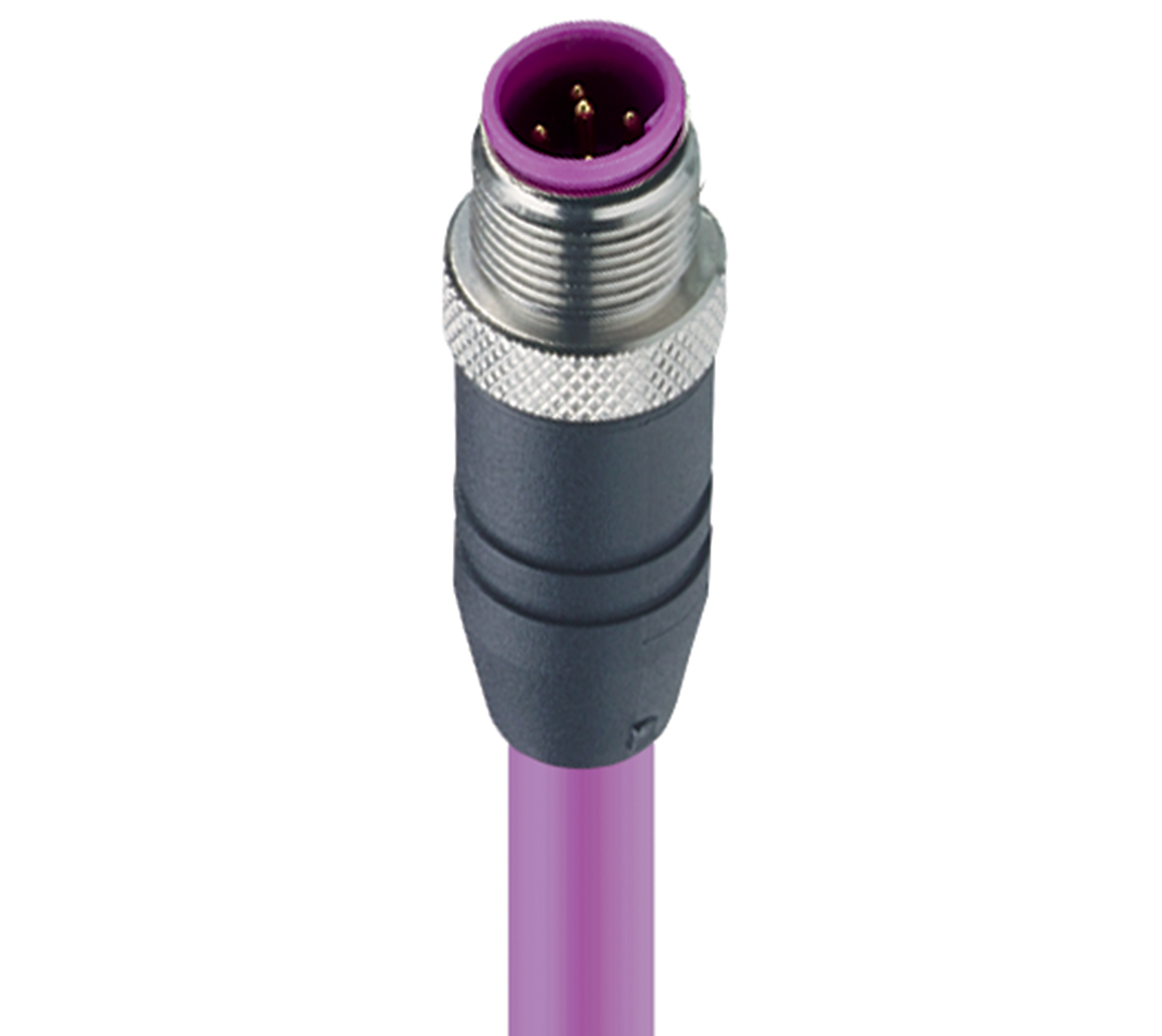

PROFIBUS Data Single-Ended Cordset: M12 Standard, male, straight, 5-pin, B-coded, shielded, black body, 50 V AC / 60 V DC, 4 A; PUR violet cable, 2-wires, 0.34 mm2
PROFIBUS Data Single-Ended Cordset: M12 Standard, male, straight, 5-pin, B-coded, shielded, black body, 50 V AC / 60 V DC, 4 A; PUR violet cable, 2-wires, 0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 20
Part numbers
0975 254 102 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 64206 | 0975 254 102/4,5 M | Order online |
| 63558 | 0975 254 102/0,3 M | Order online |
| 39659 | 0975 254 102/0,5 M | Order online |
| 89452 | 0975 254 102/0,6 M | Order online |
| 12503 | 0975 254 102/1 M | Order online |
| 17062 | 0975 254 102/2 M | Order online |
| 12502 | 0975 254 102/3 M | Order online |
| 900001027 | 0975 254 102/3 M | Order online |
| 27684 | 0975 254 102/4 M | Order online |
| 12501 | 0975 254 102/5 M | Order online |
| 900000317 | 0975 254 102/5 M | Order online |
| 29277 | 0975 254 102/6 M | Order online |
| 56922 | 0975 254 102/8 M | Order online |
| 34625 | 0975 254 102/10 M | Order online |
| 900001028 | 0975 254 102/10 M | Order online |
| 62291 | 0975 254 102/15 M | Order online |
| 47928 | 0975 254 102/20 M | Order online |
| 47929 | 0975 254 102/25 M | Order online |
| 47930 | 0975 254 102/30 M | Order online |
| 47845 | 0975 254 102/40 M | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 5 |
| Coding, Side 1 | B |
| Shielding Type | Shielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Data Transmission Type | PROFIBUS |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 25 °C - + 80 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | n.c. |
|---|---|
| Pin 2 | green |
| Pin 3 | n.c. |
| Pin 4 | red |
| Pin 5 | n.c. |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU-GF |
| Contact Bearer Color | Violett |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | CuZn, tin-plated |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 254 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 2 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | violet matt similarly RAL 4001 |
| Cable Diameter D | ø 7.60 ± 0.30 mm |
| Wire Insulation Material | PE |
| Insulated Wire Diameter | ø 2.60 ± 0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant |
| Cable Characteristics | Exclusion of dangerous materials; Line fulfills the transmission values RS485 (Type A) of the PROFIBUS user organization; Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; Coldness flexibility |
| Core Colors | red, green |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
