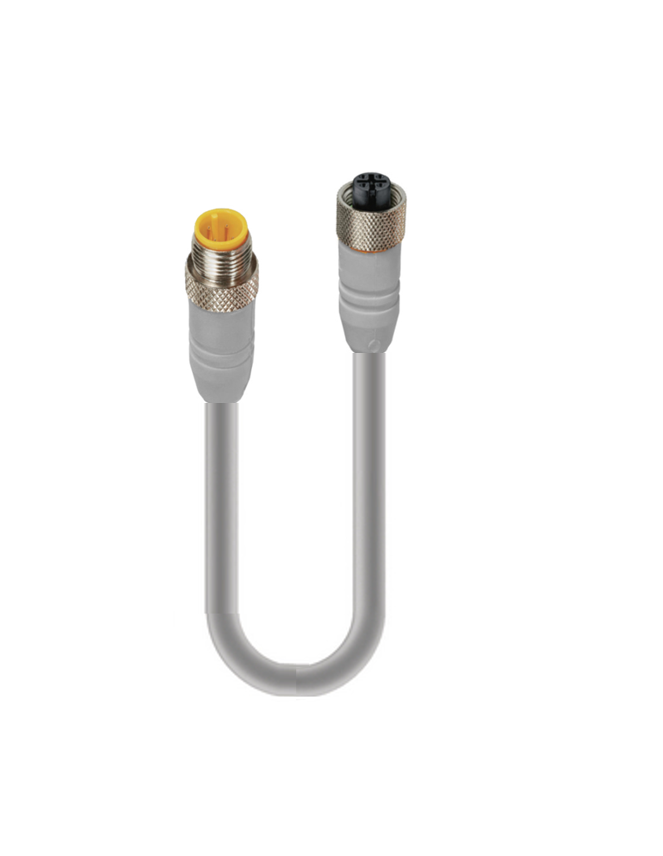

CANopen / DeviceNet, Cordset, double ended: M12 Standard, Male, Straight, 5 pole, to a, M12 Standard, Female, Straight, 5 pole, with cable type, Grey, PVC, DeviceNet-THIN
CANopen / DeviceNet, Cordset, double ended: M12 Standard, Male, Straight, 5 pole, to a, M12 Standard, Female, Straight, 5 pole, with cable type, Grey, PVC, DeviceNet-THIN
- Availability
- Global
- Status
- Active
- Orderable items
- 19
Part numbers
0935 614 103 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 900001635 | 0935 614 103/0.3M | 0.3 m | Order online |
| 900002604 | 0935 614 103/0.6M | 0.6 m | Order online |
| 900001293 | 0935 614 103/1M | 1 m | Order online |
| 900001294 | 0935 614 103/2M | 2 m | Order online |
| 900001295 | 0935 614 103/3M | 3 m | Order online |
| 900001282 | 0935 614 103/4M | 4 m | Order online |
| 910001282 | 0935 614 103/4M-Y | 4 m | Order online |
| 900000479 | 0935 614 103/5M | 5 m | Order online |
| 900001296 | 0935 614 103/6M | 6 m | Order online |
| 900004818 | 0935 614 103/7M | 7 m | Order online |
| 900000481 | 0935 614 103/10M | 10 m | Order online |
| 910000481 | 0935 614 103/10M-Y | 10 m | Order online |
| 900001743 | 0935 614 103/15M | 15 m | Order online |
| 910001743 | 0935 614 103/15M-Y | 15 m | Order online |
| 900004859 | 0935 614 103/20M | 20 m | Order online |
| 900004860 | 0935 614 103/25M | 25 m | Order online |
| 900001633 | 0935 614 103/30M | 30 m | Order online |
| 900004861 | 0935 614 103/35M | 35 m | Order online |
| 900004862 | 0935 614 103/50M | 50 m | Order online |
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 250 V |
| Rated Impulse Voltage | 4.0 kV |
| Current Rating | 4 A |
| Data Transmission Type | CANopen / DeviceNet |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Coupling Screw with external threads |
| Number of Pins | 5 |
| Coding, Side 1 | A |
| Mating Cycles | max. 50 |
| Cable Gland | PG 11 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Clearance / Creepage Distance | EN 60664-1 (2008/01); VDE 0110-1 |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | Yellow |
| Molded Body Material | TPU |
| Molded Body Color | Grey |
| Attachment Material | CuZn, Nickel-plated |
| Gasket Material | SBR/NBR, cable gland |
| Fastening Torque (Cable Gland) | PG11: (250-375) Ncm |
| Fastening torque (mounting screw) | BZ 2,9x14: (40-50) Ncm |
| Accessories to Order Separately | 732-045-001, STASI 3, securing clip |
Cable Data
| Cable Type | 103 |
|---|---|
| Cable Number | 614 |
| Conductor Size | max. 1.5 mm2 |
| Number of Wires | 2 Pair + Drain |
| Minimal Bending Radius (Fixed Inst) | ˃ 7 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | TC - Tinned Copper |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Grey |
| Cable Diameter D | Ã ̃ 7.11 mm |
| Wire Insulation Material | PVC-Power, Data-PE |
| Insulated Wire Diameter | Power à ̃1.80 mm, Data à ̃2.00 mm |
| Overall Shield (Cable) | Braid, TC, 65% Coverage |
| Ambient Temperature (Fixed Installation) | - 20 to + 60°C (60°C UL) |
| UL Cable Type | UL AWM 20201, CSA AWM I/II A/B |
| Flammability Class (Cable Jacket) | FT4, IEC 60332-1-2 |
| Cable Characteristics | Mechanical Resistances, Abrasion, Impact, Weathering; Chemical Resistances to Oils, Acids, Alkalis |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Standard |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Nut with internal threads |
| Number of Pins, Side 2 | 5 |
| Coding, Side 2 | A |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Contact Base Material, Side 2 | CuSn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | TPU |
| Contact Bearer Color, Side 2 | Black |
| Molded Body Material, Side 2 | TPU |
| Molded Body Color, Side 2 | Grey |
| Attachment Material, Side 2 | CuZn, Nickel-plated |
| Note, Side 2 | Do not connect or disconnect under load. |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Oil Resistance | Yes |
|---|
Notes
| Protection Degree / IP Rating Note | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
|---|---|
| Note Derating | Notice derating |
History
| Update and Revision | Revision Number: 0.48 Revision Date: 03-13-2026 |
|---|
