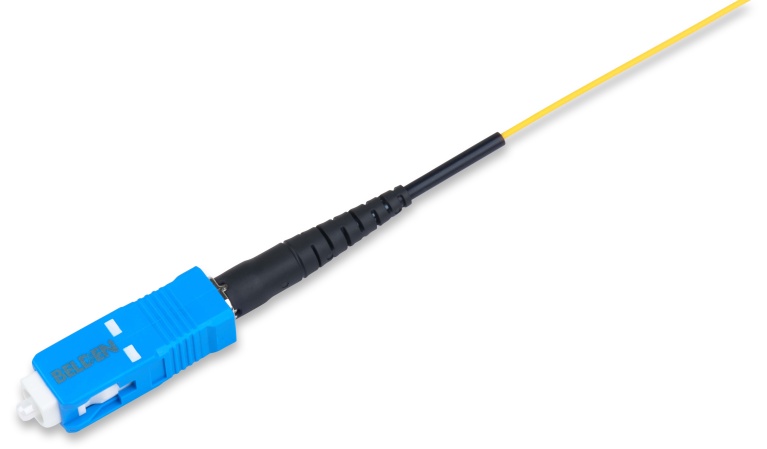

FX Fusion Splice-On Connector OS2 SC Simplex 900μm
FX Fusion Splice-On Connector, OS2, SC Simplex, 900μm Tight Buffer, Blue Housing
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FX Fusion OS2 SC Simplex 900 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Packaging | UPC | Order |
|---|---|---|---|---|
| FTSSC900FS01 | Blue | Single Pack | 611589217521 | Order online |
Specifications
Product Overview
| Environmental Space | Indoor, Outdoor |
|---|---|
| Suitable Applications | Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units). |
Construction
| Weight | 0.021 kg |
|---|---|
| Overall Height | 8.95 mm |
| Overall Width | 8.20 mm |
| Overall Length | 70.63 mm |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Mechanical Characteristics
| Maximum Insertion Loss | 0.30 dB |
|---|---|
| Minimum Reflectance | -55 dB |
| Minimum Reflectance @ 1550nm | -55 dB |
| Termination Style | Splice-On |
| Durabilities@Termination1 | 500 Insertions |
Mechanical Specifications
| Test | GR-326-CORE/1081-CORE (SM) |
|---|---|
| Intermateability Requirement | FOCIS compliant with latest revision of TIA-604-3 (SC) |
| Operating Temp Range | -40° to 75°C |
| Storage Temp Range | -40° to 85°C |
| Durability | 500 Insertions |
| Cable retention, straight pull | 0.51 kg |
| Cable retention, 90 degree pull | 0.2 kg |
| Flex | 0.20 kg |
| Twist | 0.20 kg |
| Transmission with Applied Load | 0.7 kgf (0° & 90°), 0.25kgf (135°) |
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -40° to 75°C |
|---|---|
| Storage Temperature Range | -40° to 85°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Boot | Rubber | Black |
| Protective Ferrule Cap | Plastic | Opaque |
| Connector Front Housing | Plastic | Blue |
| Connector Rear Housing | Nickel plated zinc alloy diecast | Metal |
| Ferrule | Zirconia-Ceramic | White |
Standards
| TIA/EIA Compliance | TIA 568.3 |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Included Parts | 900 μm boot, protective ferrule cap, splice protection sleeve |
|---|---|
| Related Parts | FX Splice-On Installation Kit, FX Pigtails. |
Product Notes
| Packaging | Single Pack |
|---|
History
| Update and Revision | Revision Number: 0.323 Revision Date: 10-24-2025 |
|---|
