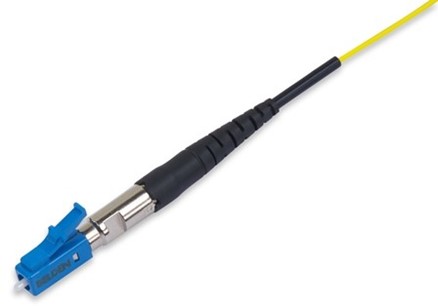

FX Fusion Splice-On Connector OS2 LC Simplex 900μm
FX Fusion Splice-On Connector, OS2, LC Simplex, 900μm Tight Buffer, Blue Housing
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor, Outdoor |
|---|---|
| Suitable Applications | Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units). |
Construction
| Weight | 0.021 lbs |
|---|---|
| Overall Length | 67.54 mm |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Maximum Insertion Loss | 0.30 dB |
|---|---|
| Minimum Reflectance | -55 dB |
| Minimum Reflectance @ 1550nm | -55 dB |
| Termination Style | Splice-On |
Mechanical Specifications
| Test | GR-326-CORE/1081-CORE (SM) |
|---|
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Boot | Rubber | Black |
| Protective Ferrule Cap | Plastic | White |
| Connector Front Housing | Plastic | Blue |
| Connector Rear Housing | Nickel plated zinc alloy diecast | Metal |
| Ferrule | Zirconia-Ceramic | White |
Standards
| TIA/EIA Compliance | TIA 568.3 |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Included Parts | 900 μm boot, protective ferrule cap, splice protection sleeve |
|---|---|
| Related Parts | FX Pigtails. |
Product Notes
| Packaging | Single Pack |
|---|---|
| Notes | This connector is not compatible with UHD Splice Cassettes (FCxHxxLxFxxx type part numbers) and ECX Splice Cassettes (FCxXxxLxFxxx type part numbers). For patch panel termination, please use adapter frames. For workstation outlet applications, use the Multimedia Box (AX107294-6 Port) or the Multi-use Outlet (AX100220-24 Port). For additional information, contact Belden Technical Support. |
History
| Update and Revision | Revision Number: 0.47 Revision Date: 10-24-2025 |
|---|
