Modular Connectors - FX FUSION SC CONNECTOR

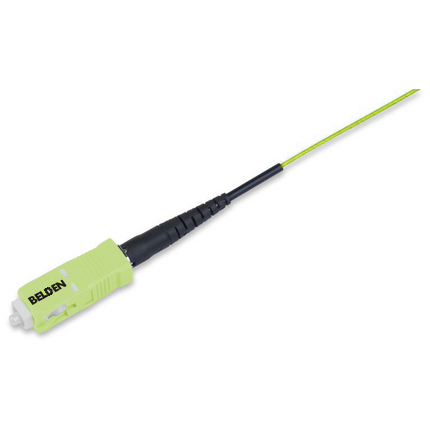

FX FUSION SPLICE-ON CONNECTOR, OM5, SC SIMPLEX, 900UM TIGHT BUFFER/250UM, LIME GREEN HOUSING, 1/PACK
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units). |
|---|
Construction
| Weight | 0.047 lbs |
|---|---|
| Overall Height | 8.95 mm |
| Overall Width | 8.20 mm |
| Overall Length | 70.63 mm |
Fiber Cable Construction
| Fiber Type | OM5 |
|---|
Mechanical Characteristics
| Maximum Insertion Loss | 0.2 dB |
|---|---|
| Minimum Reflectance @ 1550nm | -25 dB |
Mechanical Specifications
| Test | TIA 568.3-D (MM) |
|---|---|
| Operating Temp Range | -40°C to 75°C |
| Storage Temp Range | -40°C to 85°C |
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -40°C to 75°C |
|---|---|
| Storage Temperature Range | -40°C to 85°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Boot | Rubber | Black |
| Protective Ferrule Cap | Plastic | Opaque |
| Connector Front Housing | Plastic | Lime Green |
| Connector Rear Housing | Nickel plated zinc alloy diecast | |
| Ferrule | Zirconia-Ceramic | White |
Standards
| TIA/EIA Compliance | TIA 568-3 |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Included Parts | 900 μm boot, protective ferrule cap, splice protection sleeve |
|---|---|
| Related Parts | FX Splice-On Installation Kit, FX Pigtails. Not to be used with Breakout kits. |
Product Notes
| Packaging | One (1) connector per pack, each in a dust and moisture resistant clam-shell package |
|---|
History
| Update and Revision | Revision Number: 0.23 Revision Date: 10-24-2025 |
|---|
