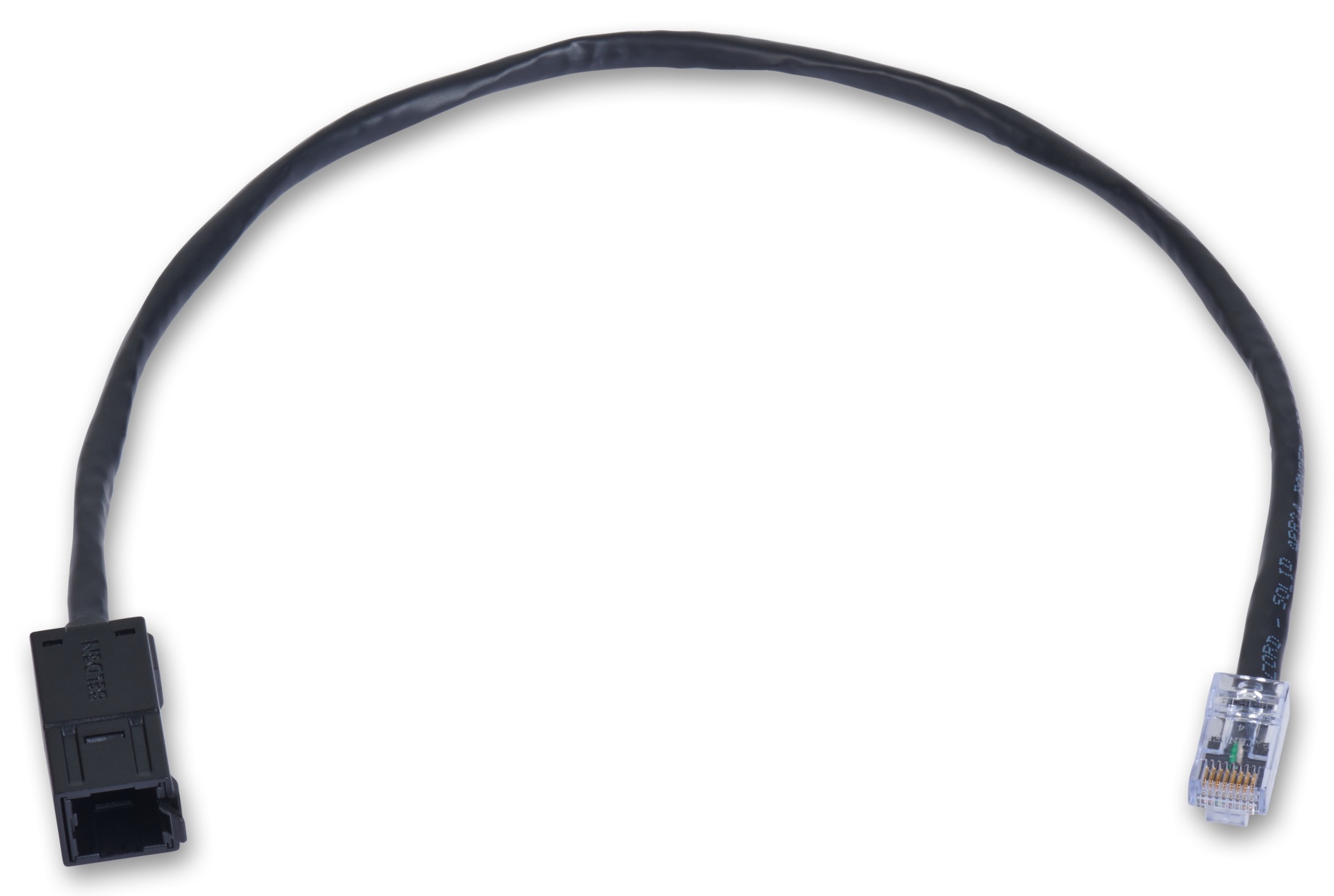

REVConnect 10GX FlexPlug, CAT6A, Bonded-Pair, 1/Pack, 4 Pair, 23 AWG Solid, T568A/B-T568A/B
REVConnect 10GX FlexPlug, CAT6A, Single Packaging (incl. 1 core), Bonded-Pair, 4 Pair, 23 AWG Solid, T568A/B-T568A/B
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
REVConnect 10GX FlexPlug is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Packaging | Put-Up Type | Length | Order |
|---|---|---|---|---|---|
| RVAFFPUBK18-S1 | Black | Individually packaged in a clear plastic bag. | Single Pack | 0.45 m | Order online |
| RVAFFPUBK18-S1 | Black | Individually packaged in a plastic bag | Single Pack | 0.45 m | Order online |
| RVAFFPUEW18-S1 | Electric White | Individually packaged in a plastic bag | Single Pack | 0.45 m | Order online |
Specifications
Product Overview
| Suitable Applications | 10GX System, TIA Category 6A, ISO Class EA, 10G Base-T |
|---|
Physical Characteristics (Overall)
| Overall Nominal Diameter | 0.23 in. |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Wiring Scheme | T568A/B-T568A/B |
| Packaging | Individually packaged in a clear plastic bag. |
| Weight | 0.060 lbs |
Conductor
| AWG | 23 |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
Insulation
| Material | PO - Polyolefin |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Cable End 1, Plug | Polycarbonate | RJ45 |
| Cable End 1, Connection | Phosphor Bronze with 50u inch Gold over Nickel Plating | RJ45 Blades |
| Cable End 2, Connection | 50uin Gold plated contacts | REVConnect |
Electrical Characteristics
| Dielectric Strength | 1,000 V RMS @ 60 Hz |
|---|---|
| Current Rating | 1.500 A |
| Insulation Resistance | 500 M-Ohm Minimum |
| Max Contact Resistance | 20 mOhm |
High Frequency
| Frequency [MHz] | Min. NEXT [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|
| 1 MHz | 65 dB | 19.8 dB |
| 4 MHz | 65 dB | 21.6 dB |
| 8 MHz | 65 dB | 22.5 dB |
| 10 MHz | 65 dB | 22.8 dB |
| 16 MHz | 63 dB | 23.4 dB |
| 20 MHz | 61 dB | 23.7 dB |
| 25 MHz | 59.2 dB | 24 dB |
| 31.25 MHz | 57.3 dB | 23 dB |
| 62.5 MHz | 51.3 dB | 20 dB |
| 100 MHz | 47.3 dB | 18 dB |
| 200 MHz | 41.4 dB | 15 dB |
| 250 MHz | 39.5 dB | 14 dB |
| 300 MHz | 37.2 dB | 12.8 dB |
| 400 MHz | 33.7 dB | 10.9 dB |
| 500 MHz | 30.9 dB | 9.5 dB |
| 625 MHz | 28.3 dB | 8 dB |
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Min Bend Radius (Overall Cable) | 1.040 in. |
|---|---|
| Tool Compatibility | RVUTT01 Termination Tool |
| Plug /Jack Compatibility | RJ45, REVConnect Core |
| Termination Rear Connection | Mated Connection |
Termination Interface
| Termination | Connection | Durabilities |
|---|---|---|
| Cable End 1 - RJ45 | Mated Connection | 750 Cycles |
| Cable End 2 - RevConnect | Mated Connection | 200 Cycles |
Standards
| UL Rating | UL94 V-0, UL1863, UL2043 |
|---|---|
| Data Category | Category 6A |
| TIA/EIA Compliance | Category 6A - TIA 568.2-D, ISO/IEC 11801:2002 Ed.2 |
| IEEE Compliance | Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) |
| Other Standards | FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | No |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL2043 Air Handling Spaces |
|---|---|
| Safety Listing | c(UL)us Listed |
Related Part Numbers
| Related Parts | REVConnect |
|---|
History
| Update and Revision | Revision Number: 0.278 Revision Date: 07-09-2026 |
|---|
