IND RUGG RJ45 T568B AWG24-26 IP20 CAT6A UTP/STP FIELD KIT

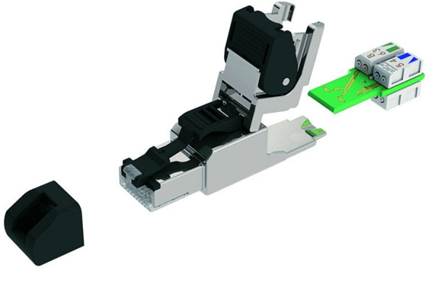

DATATUFF ® INDUSTRIAL ETHERNET RUGGEDIZED RJ45 T568B PLUG CAT6A UTP/STP (FIELD KIT) SUITABLE FOR USE IN IP20 INSTALLATION
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | noisy environment, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
Physical Characteristics (Overall)
| Overall Height | 0.62 |
|---|---|
| Overall Width | 0.54 |
| Overall Depth | 2.06 |
| Wiring Scheme | T568B |
| Packaging | Individually packaged in a plastic bag. |
| Weight | 0.060 lbs |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Clad PCB, Gold plated contacts | RJ45 |
| Rear Connection | Zinc diecast - Nickel plated | Ind DataTuff |
| Connector Body | Nickel plated zinc alloy diecast |
Electrical Characteristics
| Dielectric Strength | 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground) |
|---|---|
| Current Rating | 1.500 A |
| Insulation Resistance | 500 M-Ohm Minimum |
| Max Contact Resistance | 20 mOhm |
| Termination Resistance | 2.5 m-Ohm |
Temperature Range
| Installation Temperature Range | -40°C To +85°C |
|---|---|
| Storage Temperature Range | -40°C To +85°C |
| Operating Temperature Range | -40°C To +85°C |
Mechanical Characteristics
| Connector System Compatibility | Modular |
|---|---|
| Plug /Jack Compatibility | RJ45 |
| Termination Front Connection | Mated Connection |
| Termination Front Connection Durability | 750 cycles |
| Termination Rear Connection | Mated Connection |
| Termination Rear Connection Durability | 750 cycles |
| Connector/Hardware Retention | 20 lbs |
| Plug/Connector Retention | 11.250 lbs |
Standards
| UL Rating | UL94V-0 |
|---|---|
| TIA/EIA Compliance | Category 6A - TIA 568.2-D, Category 6A - ISO/IEC 11801:2002 Ed.2 |
| IEEE Compliance | Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) |
| Other Standards | IEC 60603-7, FCC Part 68-F |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL2043 Air Handling Spaces |
|---|---|
| Safety Listing | c(UL)us Listed |
Related Part Numbers
| Related Parts | DataTuff Cables, Connectors and Accessories |
|---|
Product Notes
| Notes | Please see Installation Guide PX105479. Suitable for use with cables 300V RMS and 600V AWM. Outer Jacket Diameter range: 0.197 to 0.354 in. Insulation Diameter range: 0.033 to 0.042 in. Parallel Pliers-Wrench recommended as per Installation Guide. |
|---|
History
| Update and Revision | Revision Number: 0.80 Revision Date: 02-24-2025 |
|---|
