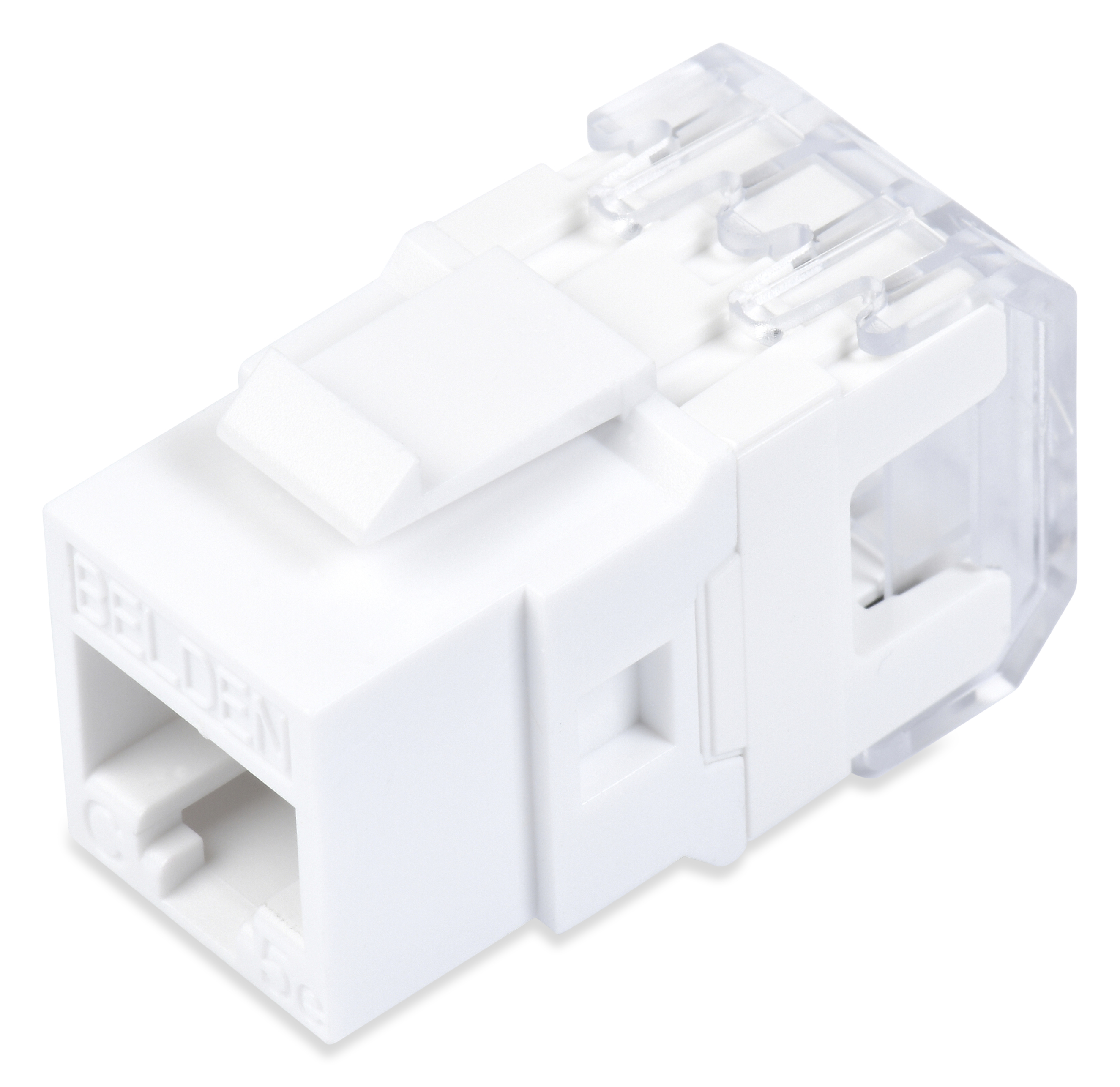

DataConnect CAT5e Shielded Modular Jack, T568 A/B
DataConnect CAT5e Shielded Modular Jack, T568 A/B
- Availability
- Americas
- Status
- Active
- Orderable items
- 1
Part numbers
DataConnect CAT5e STP Jacks is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Packaging | Order |
|---|---|---|---|
| DC5MJKSME-S1 | Metal | Single Pack | Order online |
Specifications
Product Overview
| Suitable Applications | Ethernet 10/ 100/ 1000BASE-T, 2.5GBASE-T |
|---|
Physical Characteristics (Overall)
| Overall Height | 0.93 in |
|---|---|
| Overall Width | 0.64 in |
| Overall Depth | 1.360 in |
| Wiring Scheme | T568A/B |
| Packaging | Individually packaged in a plastic bag. |
| Weight | 0.017 lbs |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Lead Frame Copper Alloy with 50 micro- inch Gold over Nickel | RJ45 |
| Rear Connection | Copper alloy with Nickel Plating | |
| Connector Body | Nickel plated zinc alloy diecast |
Electrical Characteristics
| Dielectric Strength | 1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
| Current Rating | 1.5 A |
| Insulation Resistance | 500 M-Ohm Minimum |
| Max Contact Resistance | 20 mOhm |
| Termination Resistance | 2.5 mOhm |
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Connector System Compatibility | Keystone |
|---|---|
| Tool Compatibility | Belden 110 Connecting Tool (AX100749) MediaFlex Termination Station (AX101852) Belden Rapid TerminationTool (AX105566) |
| Plug /Jack Compatibility | RJ45, RJ11 |
| Termination Front Connection | Mated Connection |
| Termination Front Connection Durability | 750 cycles |
| Termination Rear Connection | (IDC) 110 style termination |
| Termination Rear Connection Durability | ˃20 cycles |
| Cable/Connector Retention | 11.25 lbs. |
| Connector/Hardware Retention | 20 lbs |
| Plug/Connector Retention | 11.250 lbs |
Standards
| UL Rating | UL94V-0 |
|---|---|
| ISO/IEC Compliance | IEC 60603-7 |
| Data Category | Category 5e |
| TIA/EIA Compliance | ANSI/TIA 1096-A (formerly FCC Part 68-F) |
| IEEE Compliance | IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseT TM (POH) up to 100W |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed, UL 1863, UL File E77103 |
|---|
Related Part Numbers
| Related Parts | Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
|---|
Product Notes
| Included Parts | 1 Protective Cap |
|---|---|
| Notes | Please see Installation Guide PX106885. |
History
| Update and Revision | Revision Number: 0.2 Revision Date: 09-26-2024 |
|---|
