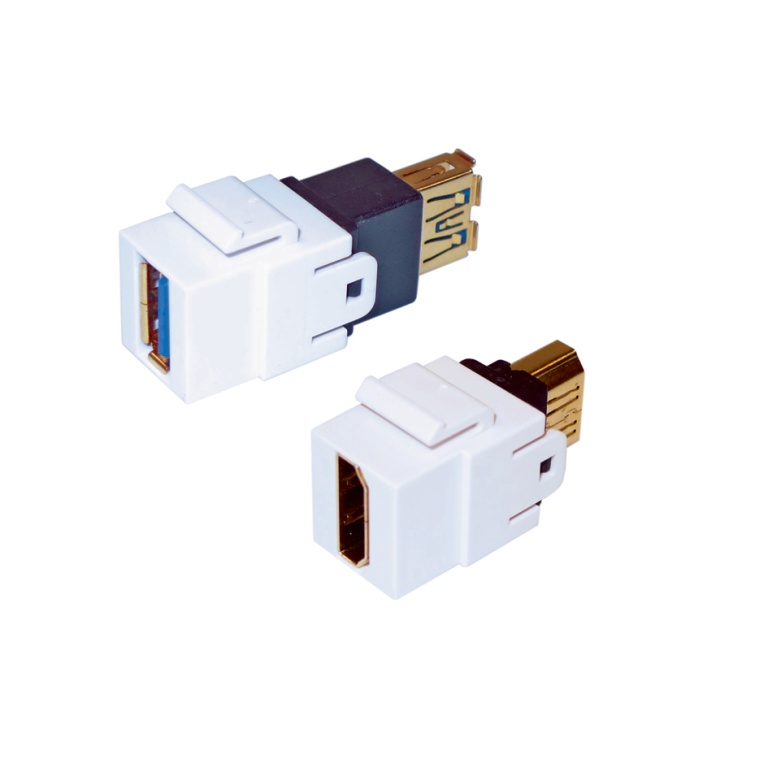

KeyConnect Multimedia Module USB Coupler, F/F, Gold Plated
KeyConnect Multimedia Module USB Coupler, F/F, Gold Plated, Available in several colors and USB types.
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
KEYCONNECT USB COUPLER is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| AX105342-AL | Almond | 611589007207 | Order online |
| AX105344-AL | Almond | 611589007238 | Order online |
| AX105342-BK | Black | 611589007214 | Order online |
| AX105344-BK | Black | 611589007245 | Order online |
| AX105342-EW | Electric White | 611589007221 | Order online |
| AX105344-EW | Electric White | 611589007252 | Order online |
Specifications
Product Overview
| Suitable Applications | USB 3.0 A-A Connection |
|---|
Physical Characteristics (Overall)
| Overall Height | 0.87 m |
|---|---|
| Overall Width | 0.638 |
| Overall Depth | 1.35 |
| Front Connection | Flush, Recessed |
| Packaging | 1 unit packaged in a plastic bag. |
| Weight | 0.022 lbs |
Connectors
Materials
| Material | Plastic - UL94V-0 |
|---|
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Connector System Compatibility | KeyConnect |
|---|---|
| Connector/Hardware Retention | 20 lbs |
Standards
| Environmental Space | Indoor |
|---|
Applicable Environmental and Other Programs
| EU Directive 2002/95/EC (RoHS) | Yes |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | Compatible with KeyConnect Patch Panel and Faceplate, USB 3.0 A-A Cable Assembly |
|---|
Product Notes
| Notes | For proper installation refer to Installation Guide PX103826. Visit our web site at http://www.belden.com |
|---|
History
| Update and Revision | Revision Number: 0.168 Revision Date: 02-20-2026 |
|---|
