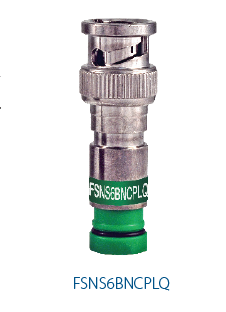

ProSNS RG-6 Plenum BNC Coax Compression Connector
ProSNS RG6 BNC plenum compression connector, non-blind entry with polymer compression sleeve for easy insertion & lowest possible tool compression force. Fits both quad-shield RG6 plenum and man standard RG6 plenum coax cables. 25 per Pack
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FSNS6BNCPLQ-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| FSNS6BNCPLQ-25 | No Color | 845671002652 | Order online |
Specifications
Product Overview
| Suitable Applications | Indoor CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
| Packaging | 25 Pack |
|---|---|
| Number of Pieces | 1 |
Connectors
Materials
| Material |
|---|
| Nickel/Tin Plated Brass |
| Tin Plated Brass |
| Gold Plated |
Electrical Characteristics
| Electrical Characteristics Notes | Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB typical (60% bonded foil), Insertion Loss: < -0.2 dB up to 1 GHz typical |
|---|
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
Return Loss
| Frequency [MHz] | -30 dB up to 1 GHz typical |
|---|
Temperature Range
| Operating Temperature Range | -40 oF (-40 oC) to 140 oF (60 oC) |
|---|
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | BNC |
| Gender | Male - plug |
| Connector Series Name | ProSNS |
| Color Band | Green |
| Locking | No |
| Tool Compatibility | CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip) |
| Termination Type | Compression |
| Cable Center Conductor Diameter Limits | .0399 - .0418 inch |
| Cable Dielectric Diameter Limits | .165 - .193 inch |
| Cable Outer Jacket Diameter Limits | .230 - .281 inch |
Standards
| RG Type | 6 |
|---|---|
| Series Type | 6 |
Applicable Environmental and Other Programs
| EU CE Mark | Yes |
|---|
Suitability
| Suitability - Indoor | Yes |
|---|
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
|---|
History
| Update and Revision | Revision Number: 0.54 Revision Date: 02-20-2026 |
|---|
