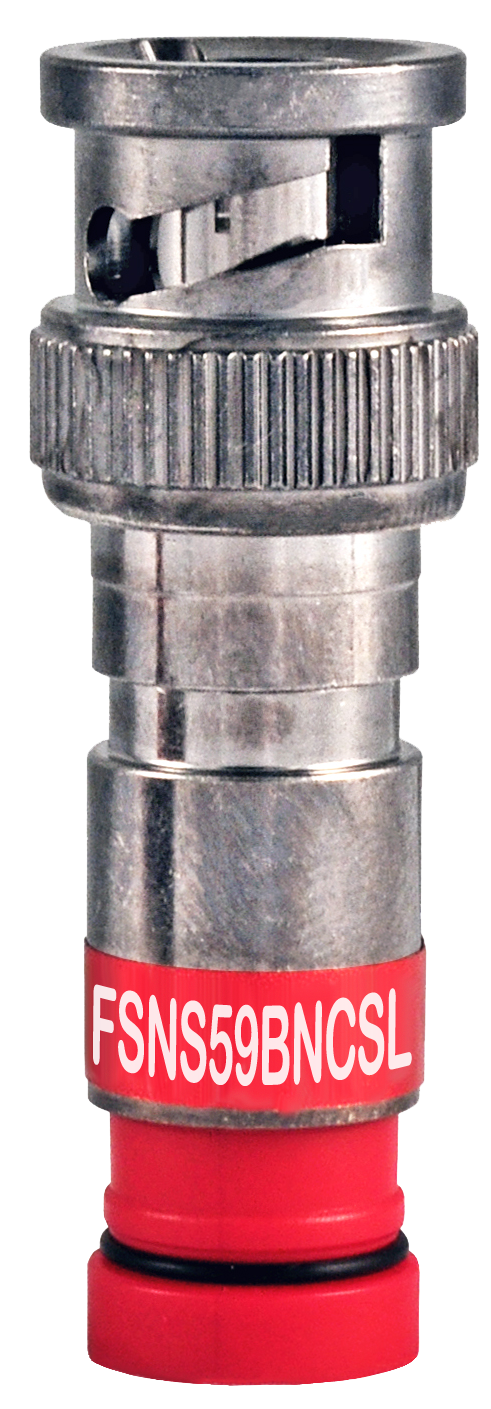

ProSNS RG-59 BNC Coax Compression Connector
ProSNS RG59 BNC compression connector, non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. 25 per Pack
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FSNS59BNCSL-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| FSNS59BNCSL-25 | No Color | 845671003734 | Order online |
Specifications
Product Overview
| Suitable Applications | CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
| Packaging | 25 Pack |
|---|---|
| Number of Pieces | 1 |
Connectors
Materials
| Description | Material |
|---|---|
| Nut | Nickel/Tin Plated Brass |
| O-Ring | Ethylene Propylene |
| Body | Nickel/Tin Plated Brass |
| Contact | Gold Plated |
Electrical Characteristics
| Electrical Characteristics Notes | Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB (60% bonded foil), All Belden ProSNS connectors meet or exceed SCTE return loss standards. |
|---|
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
Return Loss
| Frequency [MHz] | ≥-30 dB up to 1 GHz typical |
|---|
Temperature Range
| Operating Temperature Range | -40°F (-40°C) to 140°F (60°C) |
|---|
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | BNC |
| Gender | Male - plug |
| Connector Series Name | ProSNS |
| Color Band | Red |
| Locking | No |
| Tool Compatibility | CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip) |
| Termination Type | Compression |
| Cable Center Conductor Diameter Limits | .0317 - .0339 inch |
| Cable Dielectric Diameter Limits | .130 - .148 inch |
| Cable Outer Jacket Diameter Limits | .232 - .248 inch |
| Cable Insertion Force | 20 lbf |
| Cable Retention Force | 40 lbf |
Standards
| RG Type | 59 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor/Outdoor |
|---|---|
| EU CE Mark | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Related Part Numbers
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
|---|
History
| Update and Revision | Revision Number: 0.141 Revision Date: 02-20-2026 |
|---|
