Product Number: FSNS59BNCPL3-25

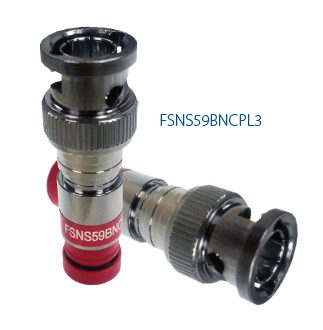

ProSNS RG-59 Plenum BNC Coax Compression Connector 23 AWG

ProSNS RG59 Plenum BNC connector fits 23 AWG only, non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. 25 per Pack

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

FSNS59BNCPL3-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
FSNS59BNCPL3-25	No Color	845671003727	Order online

Specifications

Product Overview

Suitable Applications	CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging	25 Pack
Number of Pieces	1

Connectors

Materials

Material
Nickel/Tin Plated Brass
Nickel plated Brass
Gold Plated

Electrical Characteristics

Electrical Characteristics Notes	RFI Shielding: -85 dB typical (60% bonded foil), Salt Fog: Passes 1,000 hours ANSI/SCTE 143 2007, Insertion Loss: ≤ -0.2 dB up to 1 GHz typical

Impedance

Nominal Characteristic Impedance	75 Ohm

Return Loss

Frequency [MHz]	Return Loss: ≥ -30 dB up to 1 GHz typical

Temperature Range

Operating Temperature Range	-40 oF (-40 oC) to 140 oF (60 oC)

Mechanical Characteristics

Connector System Compatibility	Coax
Connector Interface Type	BNC
Gender	Male - plug
Connector Series Name	ProSNS
Color Band	Red
Locking	No
Tool Compatibility	CPLCCT-SLMR, CPSNSCT-596 (compression), PS59/6/RGB (strip)
Termination Type	Compression
Cable Center Conductor Diameter Limits	.021 - .025 inch
Cable Dielectric Diameter Limits	.130 - .135 inch
Cable Outer Jacket Diameter Limits	.185 - .195 inch
Cable Insertion Force	20 lbs. maximum
Cable Retention Force	40 lbs. minimum per SCTE IPS-SP-401
