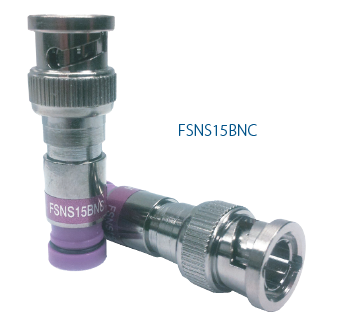

ProSNS Mini BNC Coax Compression Connector 22-24 AWG
ProSNS Mini (22-24 AWG) BNC male connector for coaxial cable. Non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. Fits brands of 22-24 AWG coaxial cables. 25 per Pack. This product is discontinued. Please contact Belden Customer Service to check for existing saleable inventory. It has been replaced by one of Belden's PPC Brand EX Series connectors - EXMBNC. For product information please visit: https://products.ppc-online.com/product/signaltight-exm-bnc/
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FSNS15BNC-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| FSNS15BNC-25 | No Color | 845671004403 | Order online |
Specifications
Product Overview
| Suitable Applications | CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
| Packaging | 25 Pack |
|---|---|
| Number of Pieces | 1 |
Connectors
Materials
| Description | Material |
|---|---|
| Nut | Nickel/Tin Plated Brass |
| O-Ring | Ethylene Propylene |
| Body | Nickel/Tin Plated Brass |
| Contact | Gold Plated |
Electrical Characteristics
| Electrical Characteristics Notes | Operating Voltage: 90V (at 60 Hz continuous AC) |
|---|
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
Return Loss
| Frequency [MHz] | Minimum -30 dB to 3 GHz |
|---|
Temperature Range
| Operating Temperature Range | -40°F (-40°C) to 140°F (60°C) |
|---|
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | BNC |
| Gender | Male - plug |
| Connector Series Name | ProSNS |
| Tool Compatibility | CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip) |
| Termination Type | Compression |
Standards
| RG Type | Mini 59 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor/Outdoor |
|---|---|
| EU CE Mark | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Product Notes
| Notes | Bandwidth: 0 MHz to 3 GHz |
|---|
History
| Update and Revision | Revision Number: 0.274 Revision Date: 02-20-2026 |
|---|
