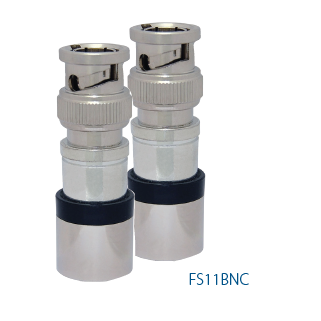

ProSNS RG-11 BNC Coax Compression Connector 7/16" Hex Head
ProSNS RG11 BNC compression connector, non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. Fits most RG11 standard through quad-shield cables. 25 per Pack
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FS11BNC-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| FS11BNC-25 | No Color | 845671000603 | Order online |
Specifications
Product Overview
| Suitable Applications | CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
| Packaging | 25 Pack |
|---|---|
| Number of Pieces | 1 |
Connectors
Materials
| Description | Material |
|---|---|
| Nut | Nickel/Tin Plated Brass |
| O-Ring | Ethylene Propylene |
| Body | Nickel/Tin Plated Brass |
| Contact | Gold Plated |
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | BNC |
| Gender | Male - plug |
| Connector Series Name | ProSNS |
| Color Band | Black |
| Locking | No |
| Tool Compatibility | CPLCCT-11 BNC (compression), PS11 (strip) |
| Termination Type | Compression |
| Cable Center Conductor Diameter Limits | .0634 - .0647 inch |
| Cable Dielectric Diameter Limits | .280 - .294 inch |
| Cable Outer Jacket Diameter Limits | .390 - .417 inch |
Standards
| RG Type | 11 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor/Outdoor |
|---|
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
History
| Update and Revision | Revision Number: 0.134 Revision Date: 02-20-2026 |
|---|
