Product Number: DBDS4BNC

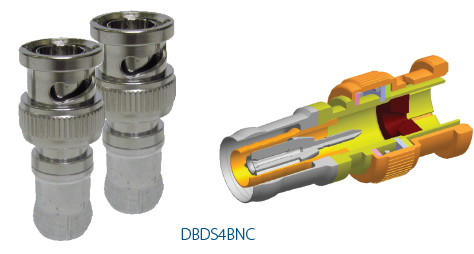

Double Bubble RG-59 DS4 BNC Coax Compression Connector

Double Bubble RG59 DS4 BNC connector, fits Belden 734D1, 734D1T or equivalent coaxial cable sizes. Compression design that molds the metal completely around the cable. 25 per Pack

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

DBDS4BNC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
DBDS4BNC	No Color	845671002188	Order online

Specifications

Product Overview

Suitable Applications	Central Office, DS4

Physical Characteristics (Overall)

Packaging	25 Pack
Number of Pieces	1

Connectors

Materials

Material
Nickel plated Brass
Gold Plated

Electrical Characteristics

Electrical Characteristics Notes	Cable Pullout Force Exceeding 65 in/lbs.

Impedance

Nominal Characteristic Impedance	75 Ohm

Return Loss

Frequency [MHz]
DC-1 GHz 36 dB Return Loss < 1.03 VSWR
DC-2 GHz 32 dB Return Loss < 1.05 VSWR
DC-3 GHz 26 dB Return Loss < 1.10 VSWR

Mechanical Characteristics

Connector System Compatibility	Coax
Connector Interface Type	BNC
Gender	Male - plug
Connector Series Name	Double Bubble
Locking	No
Tool Compatibility	CPLCRBC-BR (compression), PSA59/6 (strip)
Termination Type	Compression
Cable Center Conductor Diameter Limits	.0317 - .0339 inch
Cable Dielectric Diameter Limits	.145 - .155 inch
Cable Outer Jacket Diameter Limits	.220 - .240 inch

Standards

RG Type	59
Series Type	59

Applicable Environmental and Other Programs

EU CE Mark	Yes

Suitability

Suitability - Indoor	Yes
Suitability - Outdoor	Yes

Related Part Numbers

Footnote	Q - STANDARD PACKAGES CANNOT BE BROKEN.
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .
