Product Number: DB6PL2-25

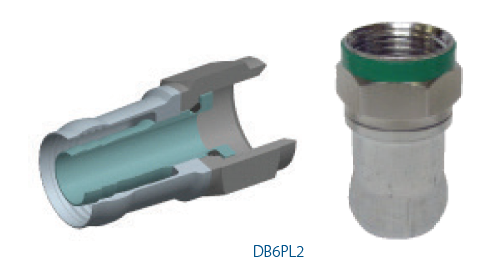

Double Bubble RG-6 Plenum "F" Coax Compression Connector

Double Bubble RG6 "F" Plenum connector, fits most plenum RG6 coaxial cables. Compression design that molds the metal completely around the cable. 25 per Pack. This product is discontinued. Please contact Belden Customer Service to check for existing saleable inventory. It has been replaced by one of Belden's PPC Brand EX Series connectors - EX6XLPLPLUS. For product information please visit: https://products.ppc-online.com/product/signaltight-ex6xlplplus/

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

DB6PL2-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
DB6PL2-25	No Color	845671000405	Order online

Specifications

Product Overview

Suitable Applications	CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging	25 Pack
Number of Pieces	1

Connectors

Materials

Material	Nickel plated Brass

Electrical Characteristics

Impedance

Nominal Characteristic Impedance	75 Ohm

Return Loss

Frequency [MHz]
DC-1 GHz 31 dB Return Loss < 1.05 VSWR
DC-2 GHz 26 dB Return Loss < 1.09 VSWR
DC-3 GHz 21 dB Return Loss < 1.18 VSWR

Mechanical Characteristics

Connector System Compatibility	Coax
Connector Interface Type	F
Gender	Male - plug
Connector Series Name	Double Bubble
Locking	No
Tool Compatibility	CPLCRBC-BR (compression), PS59/6/RGB (strip)
Termination Type	Compression
Cable Center Conductor Diameter Limits	.0399 - .0418 inch
Cable Dielectric Diameter Limits	.165 - .172 inch
Cable Outer Jacket Diameter Limits	.220 - .250 inch
