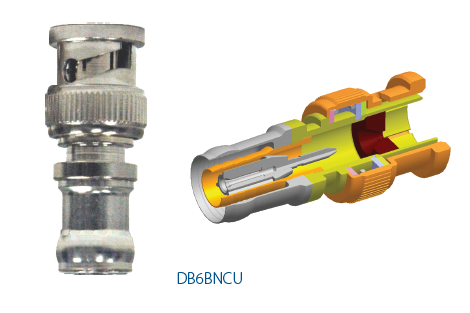

Double Bubble RG-6 BNC Coax Compression Connector
Double Bubble RG6 Universal BNC connector, fits standard, tri-shield and quad-shield coax. Compression design that molds the metal completely around the cable. 25 per Pack
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
DB6BNCU-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| DB6BNCU-25 | No Color | 845671000085 | Order online |
Specifications
Product Overview
| Suitable Applications | CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
| Packaging | 25 Pack |
|---|---|
| Number of Pieces | 1 |
Connectors
Materials
| Description | Material |
|---|---|
| Body | Nickel plated Brass |
| Contact | Gold Plated |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
Return Loss
| Frequency [MHz] |
|---|
| DC-1 GHz 30 dB Return Loss <1.07VSWR |
| DC-2 GHz 25 dB Return Loss <1.10VSWR |
| DC-3 GHz 24 dB Return Loss <1.16VSWR |
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | BNC |
| Gender | Male - plug |
| Connector Series Name | Double Bubble |
| Locking | No |
| Tool Compatibility | CPLCRBC-BR (compression), PS59/6/RGB (strip) |
| Termination Type | Compression |
| Cable Center Conductor Diameter Limits | .0399 - .0418 inch |
| Cable Dielectric Diameter Limits | .180 - .193 inch |
| Cable Outer Jacket Diameter Limits | .265 - .305 inch |
Standards
| RG Type | 6 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor/Outdoor |
|---|---|
| EU CE Mark | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Related Part Numbers
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
|---|
History
| Update and Revision | Revision Number: 0.120 Revision Date: 02-20-2026 |
|---|
