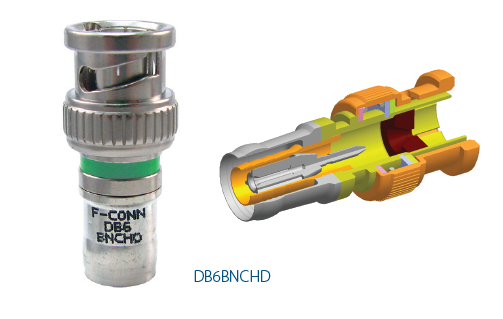

Double Bubble RG-6 HD BNC Coax Compression Connector
Double Bubble RG6 Universal High Definition BNC connector, fits standard, tri-shield and quad-shield coaxial cable. Compression design that molds the metal completely around the cable. 25 per Pack
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
DB6BNCHD-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Order |
|---|---|---|
| DB6BNCHD-25 | No Color | Order online |
Specifications
Product Overview
| Suitable Applications | CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
| Packaging | 25 Pack |
|---|---|
| Number of Pieces | 1 |
Connectors
Materials
| Material |
|---|
| Nickel plated Brass |
| Gold Plated |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
Return Loss
| Frequency [MHz] |
|---|
| DC-1 GHz -33 dB Return Loss < 1.07 VSWR |
| DC-2 GHz -32 dB Return Loss < 1.10 VSWR |
| DC-3 GHz -31 dB Return Loss < 1.16 VSWR |
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | BNC |
| Gender | Male - plug |
| Connector Series Name | Double Bubble |
| Color Band | Green |
| Locking | No |
| Tool Compatibility | CPLCRBC-BR (compression), PS59/6/RGB (strip) |
| Termination Type | Compression |
| Cable Center Conductor Diameter Limits | .0399 - .0418 inch |
| Cable Dielectric Diameter Limits | .180 - .193 inch |
| Cable Outer Jacket Diameter Limits | .265 - .305 inch |
Standards
| RG Type | 6 |
|---|---|
| Series Type | 6 |
Applicable Environmental and Other Programs
| EU CE Mark | Yes |
|---|
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
Related Part Numbers
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
|---|
History
| Update and Revision | Revision Number: 0.113 Revision Date: 02-20-2026 |
|---|
