Product Number: DB59BNCSL-25

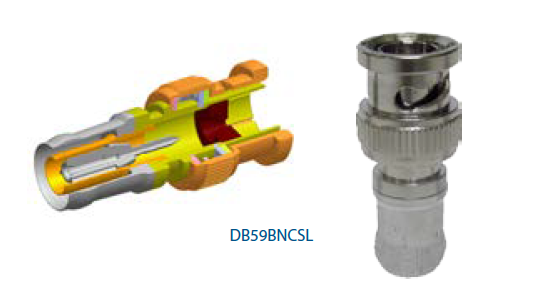

Double Bubble RG-59 BNC Coax Compression Connector

Double Bubble RG59 BNC connector, fits most CCTV Security coaxial cables. Compression design that molds the metal completely around the cable. 25 per Pack

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

DB59BNCSL-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
DB59BNCSL-25	No Color	845671000054	Order online

Specifications

Product Overview

Suitable Applications	Security CCTV

Physical Characteristics (Overall)

Packaging	25 Pack
Number of Pieces	1

Connectors

Materials

Material
Nickel plated Brass
Gold Plated

Electrical Characteristics

Electrical Characteristics Notes	Cable Pullout Force Exceeding 65 in/lbs.

Impedance

Nominal Characteristic Impedance	75 Ohm

Return Loss

Frequency [MHz]
DC-1 GHz 27 dB Return Loss < 1.07 VSWR
DC-2 GHz 27 dB Return Loss < 1.09 VSWR
DC-3 GHz 29 dB Return Loss < 1.09 VSWR

Mechanical Characteristics

Connector System Compatibility	Coax
Connector Interface Type	BNC
Gender	Male - plug
Connector Series Name	Double Bubble
Locking	No
Tool Compatibility	CPLCRBC-BR (compression), PSA59/6 (strip)
Termination Type	Compression
Cable Center Conductor Diameter Limits	.0317 - .0339 inch
Cable Dielectric Diameter Limits	.137 - .148 inch
Cable Outer Jacket Diameter Limits	.232 - .248 inch
