Product Number: DB59BNCHD-25

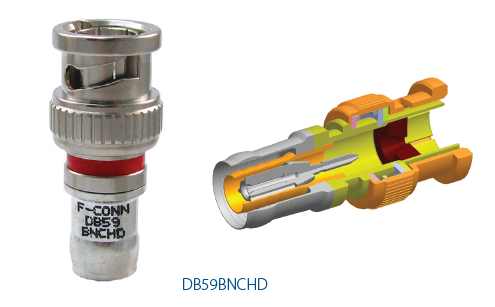

Double Bubble RG-59 HD BNC Coax Compression Connector

Double Bubble RG59 Universal High Definition BNC connector, fits standard, tri-shield and quad-shield coaxial cable. Compression design that molds the metal completely around the cable. 25 per Pack

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

DB59BNCHD-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
DB59BNCHD-25	No Color	845671001624	Order online

Specifications

Product Overview

Suitable Applications	CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging	25 Pack
Number of Pieces	1

Connectors

Materials

Material
Nickel plated Brass
Gold Plated

Electrical Characteristics

Impedance

Nominal Characteristic Impedance	75 Ohm

Return Loss

Frequency [MHz]
DC-1 GHz -35 dB Return Loss < 1.04 VSWR
DC-2 GHz -29 dB Return Loss < 1.07 VSWR
DC-3 GHz -32 dB Return Loss < 1.07 VSWR

Mechanical Characteristics

Connector System Compatibility	Coax
Connector Interface Type	BNC
Gender	Male - plug
Connector Series Name	Double Bubble
Color Band	Red
Locking	No
Tool Compatibility	CPLCRBC-BR (compression), PS59/6/RGB (strip)
Termination Type	Compression
Cable Center Conductor Diameter Limits	.0317 - .0339 inch
Cable Dielectric Diameter Limits	.144 - .157 inch
Cable Outer Jacket Diameter Limits	.232 - .273 inch
