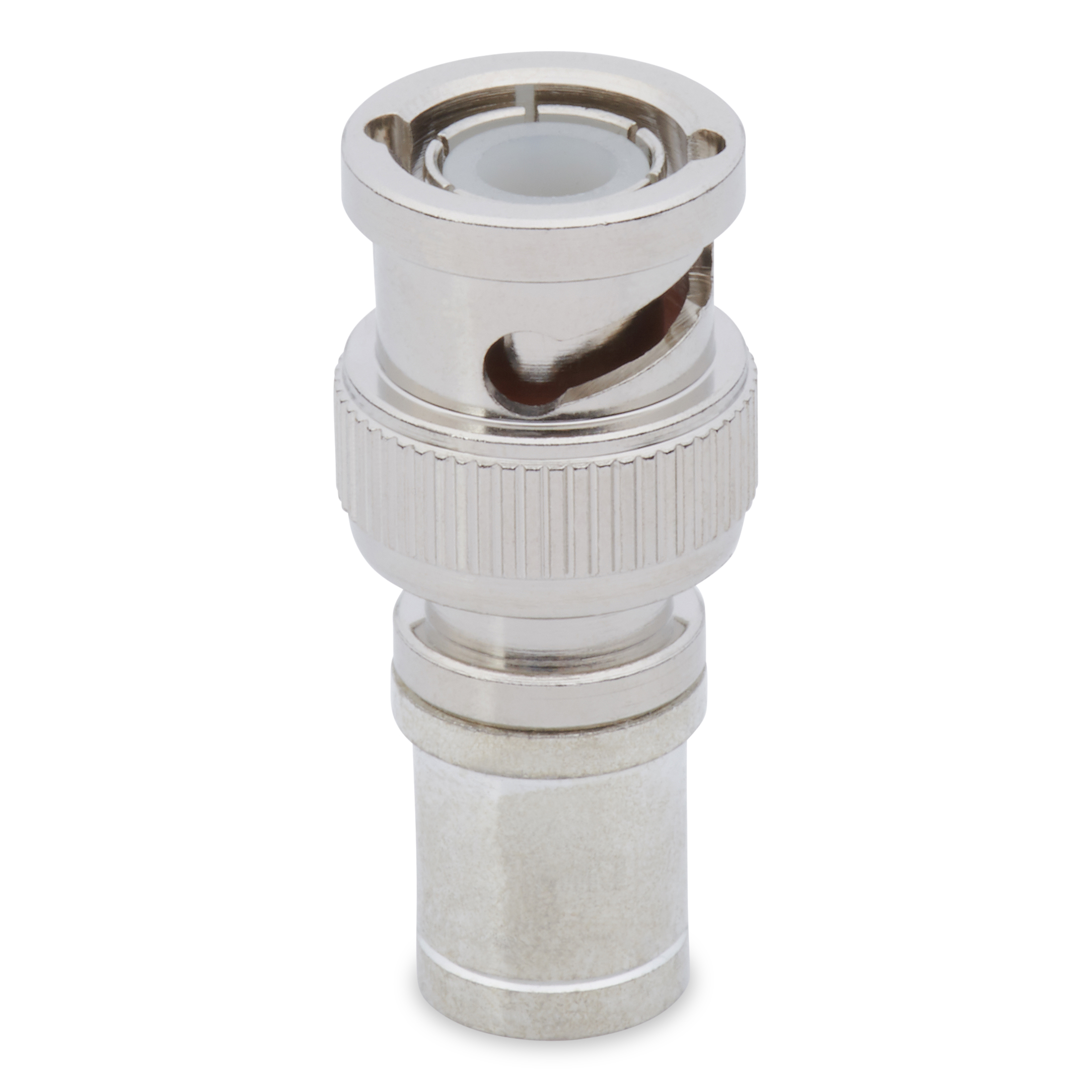

Double Bubble RG-58 BNC Coax Compression Connector
Double Bubble RG58 BNC connector, fits standard RG58 50 Ohm coaxial cable. Compression design that molds the metal completely around the cable. 25 per Pack
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
DB58BNC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| DB58BNC | No Color | 845671002140 | Order online |
Specifications
Product Overview
| Suitable Applications | Antenna, 50 Ohm |
|---|
Physical Characteristics (Overall)
| Packaging | 25 Pack |
|---|---|
| Number of Pieces | 1 |
Connectors
Materials
| Material |
|---|
| Nickel plated Brass |
| Gold Plated |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance | 50 Ohm |
|---|
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | BNC |
| Gender | Male - plug |
| Connector Series Name | Double Bubble |
| Locking | No |
| Tool Compatibility | CPLCRBC-BR (compression) |
| Termination Type | Compression |
| Cable Center Conductor Diameter Limits | .0317 - .0339 inch |
| Cable Dielectric Diameter Limits | .0111 - .121 inch |
| Cable Outer Jacket Diameter Limits | .185 - .201 inch |
Standards
| RG Type | 58 |
|---|
Applicable Environmental and Other Programs
| EU CE Mark | Yes |
|---|
Related Part Numbers
| Footnote | Q - STANDARD PACKAGES CANNOT BE BROKEN. |
|---|---|
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
History
| Update and Revision | Revision Number: 0.115 Revision Date: 02-20-2026 |
|---|
