12 GHz Micro BNC Crimp Connector

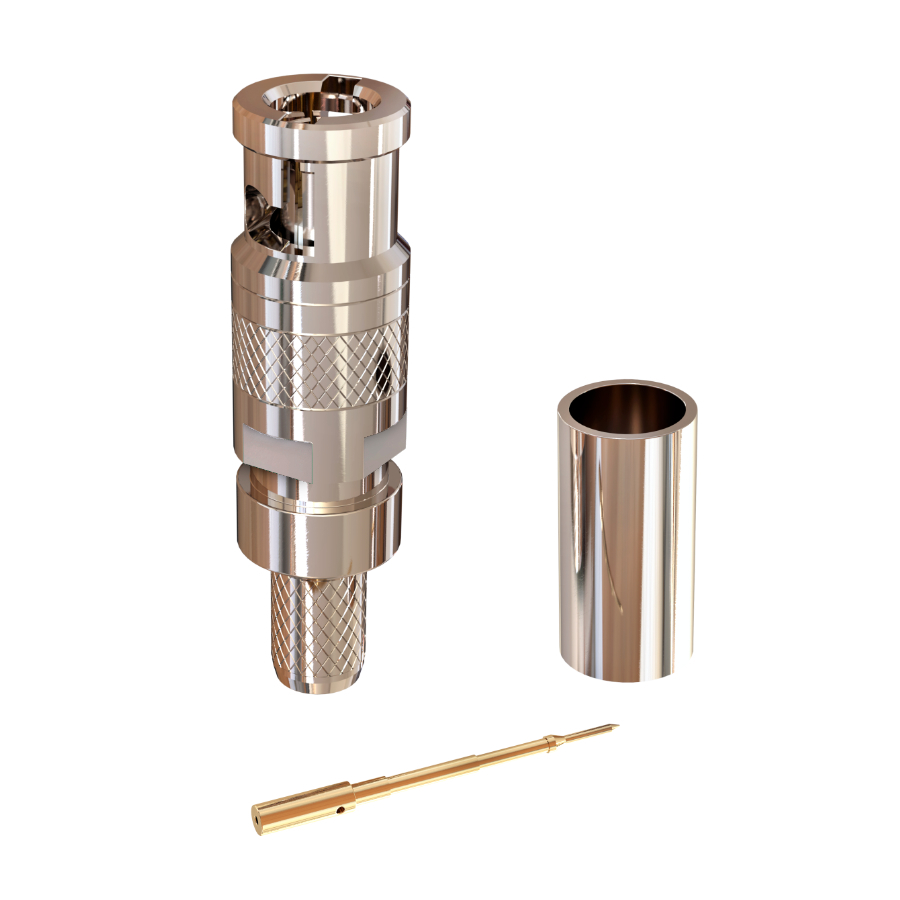

Mini RG-59, 12 GHz, Ultra High Definition, Micro BNC, 3 piece crimp connector
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
4855EMBUHD3 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | UPC | Order |
|---|---|---|
| 4855EMBUHD3 B50 | 612825489108 | Order online |
Specifications
Product Overview
| Suitable Applications | HD-SDI, UHD-SDI, Video, Digital Video, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P |
|---|
Physical Characteristics (Overall)
| Packaging | 50 per package |
|---|---|
| Number of Pieces | 3 |
| Weight | 0.30kgs / 0.650lbs per 50 pack |
Electrical Characteristics
| Electrical Characteristics Notes | SMPTE 2082-1 Return Loss or better |
|---|
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | Micro BNC |
| Gender | Male - plug |
| Connector Series Name | UHD |
| Locking | No |
| Tool Compatibility | BB3PHCT (crimp) & BB3PHCTD5 (crimp) |
| Termination Type | Crimp |
| Cable Center Conductor Diameter Limits | 0.0208 - 0.0244 in |
| Cable Dielectric Diameter Limits | 0.0964 - 0.1043 in |
| Cable Outer Jacket Diameter Limits | 0.1574 - 0.1692 in |
Standards
| RG Type | Mini 59 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | No |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
History
| Update and Revision | Revision Number: 0.19 Revision Date: 11-09-2022 |
|---|
