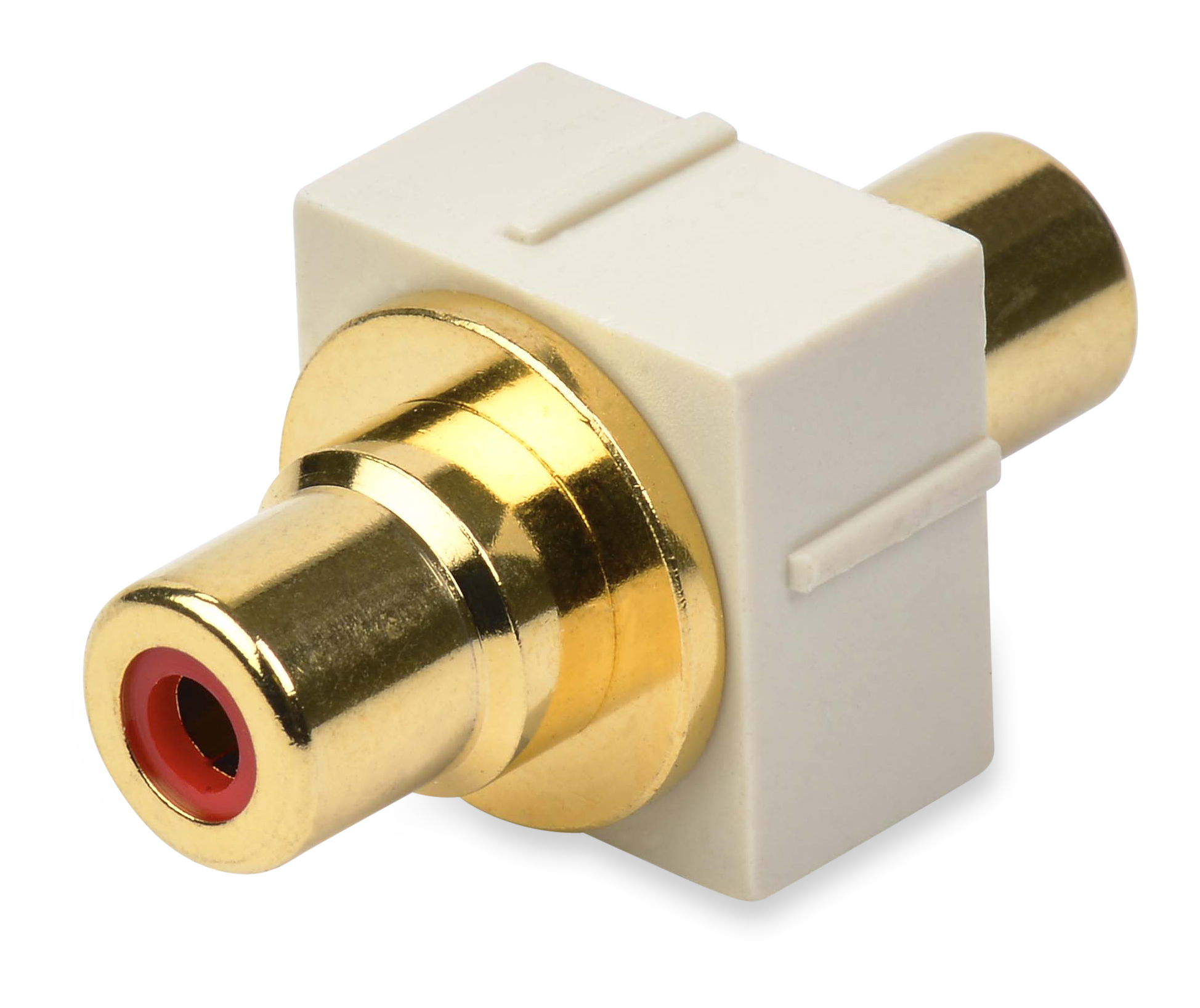

MDVO RCA Faceplate Inserts
MDVO RCA Faceplate Inserts. Available in several colors.
- Availability
- Global
- Status
- Active
- Orderable items
- 18
Part numbers
MDVO RCA INSERT is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| AX101824 | Almond | 611589003643 | Order online |
| AX101828 | Almond | 611589003681 | Order online |
| AX101832 | Almond | 611589003728 | Order online |
| AX101836 | Almond | 611589003766 | Order online |
| AX101826 | Black | 611589003667 | Order online |
| AX101830 | Black | 611589003704 | Order online |
| AX101834 | Black | 611589003742 | Order online |
| AX101838 | Black | 611589003780 | Order online |
| AX101823 | Gray | 611589003636 | Order online |
| AX101827 | Gray | 611589003674 | Order online |
| AX101831 | Gray | 611589003711 | Order online |
| AX102601 | Ivory | 611589027724 | Order online |
| AX102602 | Ivory | 611589027731 | Order online |
| AX102603 | Ivory | 611589027748 | Order online |
| AX101833 | White | 611589003735 | Order online |
| AX101825 | White | 611589003650 | Order online |
| AX101829 | White | 611589003698 | Order online |
| AX101837 | White | 611589003773 | Order online |
Specifications
Product Overview
| Suitable Applications | RCA Cable |
|---|
Physical Characteristics (Overall)
| Overall Height | 0.63 m |
|---|---|
| Overall Width | 0.63 |
| Overall Depth | 1.293 |
| Front Connection | Flush |
| Packaging | 10 units packaged in a plastic bag. |
| Weight | 0.034 lbs |
Connectors
Materials
| Material | Plastic - UL94V-0 |
|---|
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Connector System Compatibility | MDVO |
|---|---|
| Connector/Hardware Retention | 20 lbs |
Standards
| Environmental Space | Indoor |
|---|
Applicable Environmental and Other Programs
| EU Directive 2002/95/EC (RoHS) | Yes |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | Compatible with MDVO Patch Panel and Faceplate, RCA Cable Assembly |
|---|
Product Notes
| Notes | For proper installation refer to Installation Guide P0749391. Visit our web site at http://www.belden.com |
|---|
History
| Update and Revision | Revision Number: 0.183 Revision Date: 02-20-2026 |
|---|
