BeldenMDVO LC DUPLEX MODULE
MDVO LC Duplex Fiber Module
MDVO LC Duplex Fiber Module. Available in several colors and fiber types.
- Availability
- Global
- Status
- Active
- Orderable items
- 8
Part numbers
MDVO LC DUPLEX MODULE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| AX102210 | Almond | 611589004589 | Order online |
| AX102214 | Almond | 611589004626 | Order online |
| AX102212 | Black | 611589004602 | Order online |
| AX102216 | Black | 611589004640 | Order online |
| AX102209 | Gray | 611589004572 | Order online |
| AX102213 | Gray | 611589004619 | Order online |
| AX102211 | White | 611589004596 | Order online |
| AX102215 | White | 611589004633 | Order online |
Specifications
Product Overview
| Suitable Applications | Secured applications over fiber optic |
|---|
Physical Characteristics (Overall)
| Overall Height | 0.63 m |
|---|---|
| Overall Width | 0.63 |
| Overall Depth | 1.14 |
| Packaging | 10 units packaged in a plastic bag. |
| Weight | 0.013 lbs |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Plastic - UL94V-0 | LC-Duplex |
| Rear Connection | Plastic - UL94V-0 | LC-Duplex |
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Connector System Compatibility | MDVO |
|---|---|
| Connector/Hardware Retention | 20 lbs |
Standards
| Environmental Space | Indoor |
|---|
Applicable Environmental and Other Programs
| EU Directive 2002/95/EC (RoHS) | Yes |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | Compatible MDVO Faceplate and Patch Panel |
|---|
Product Notes
| Included Parts | Dust Caps |
|---|---|
| Notes | For additional information about this product, visit our web site at http://www.belden.com . |
History
| Update and Revision | Revision Number: 0.178 Revision Date: 02-20-2026 |
|---|
Resources
Related av multimedia modules
BeldenCAT6+ CLIPSAL STYLE MODULE
CAT6+ CLIPSAL STYLE MODULE
CAT6+ Clipsal Style Module

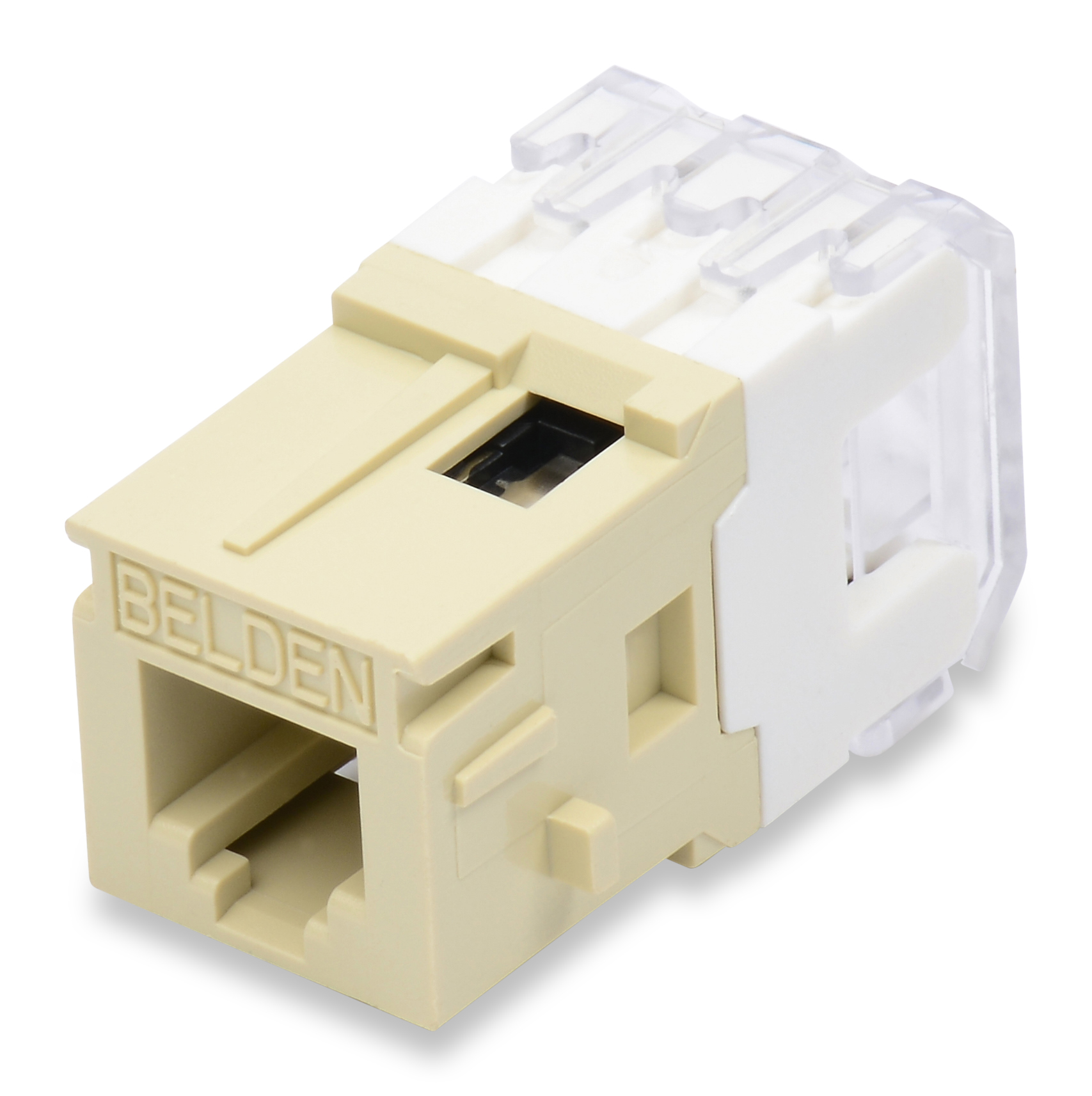

FLEX MODULE USOC
Flex Modular Jack, RJ45, MDVO Style
12 items
BeldenFXWSKC3LDNB25G
FXWSKC3LDNB25G
Faceplates and Panels - KeyConnect LC Duplex Module Aqua Adapter, Green Holder

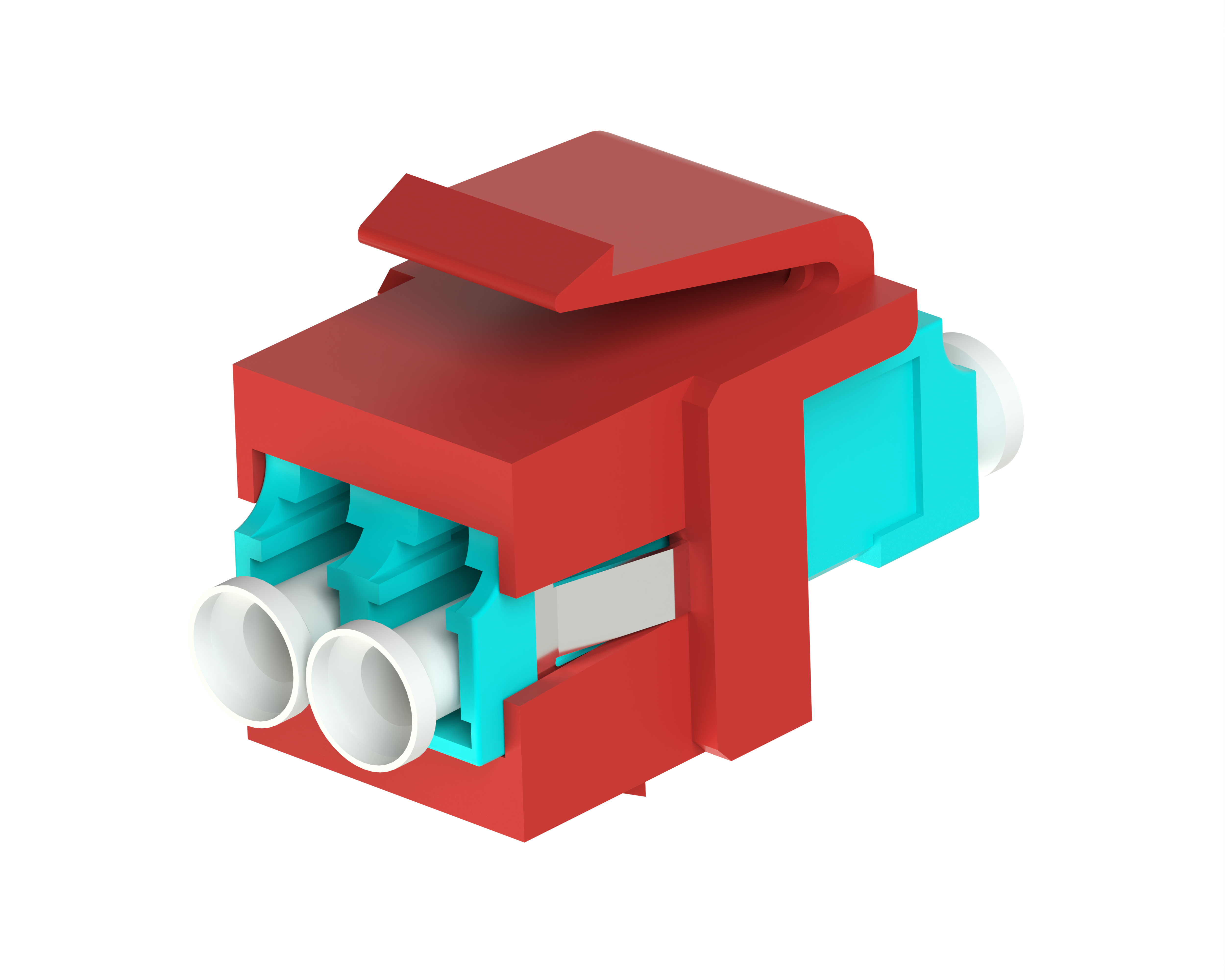

FXWSKC3LDNB25R
