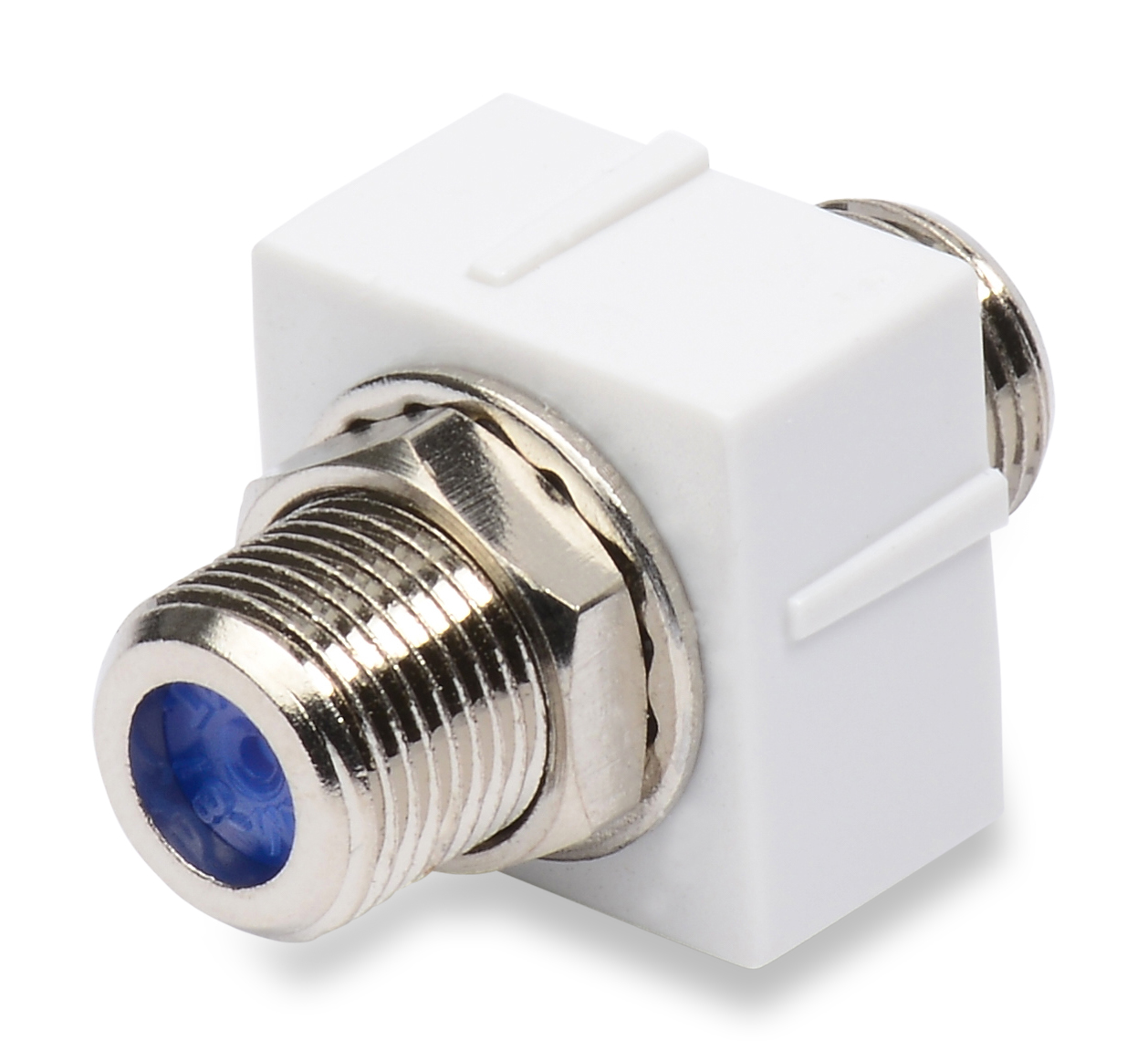

Product Number: MDVO F COAXIAL VIDEO MODULE

MDVO Insert, 1-Port, F Coaxial Video Module

Name: Belden MDVO F COAXIAL VIDEO MODULE
Brand: Belden
SKU: MDVO F COAXIAL VIDEO MODULE

MDVO Insert, 1-Port, F Coaxial Video Module, Available in several colors.

Ships from and sold by A5 IT.

Part numbers

MDVO F COAXIAL VIDEO MODULE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
A0407000	Almond	611589000482	Order online
A0407002	Black	611589000505	Order online
A0406999	Gray	611589000475	Order online
AX102599	Ivory	611589027700	Order online
A0407001	White	611589000499	Order online

Suitable Applications	Audio and Video applications

Overall Height	0.63 m
Overall Width	0.63
Overall Depth	1.14
Packaging	10 units packaged in a plastic bag.
Weight	0.010 lbs

Material	Plastic - UL940V-0, Metal

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	MDVO
Connector/Hardware Retention	20 lbs

Environmental Space	Indoor

EU Directive 2002/95/EC (RoHS)	Yes
MII Order #39 (China RoHS)	EUP 50

Safety Listing	c(UL)us Listed

Related Parts	Compatible MDVO Faceplate and Patch Panel

Notes	For additional information about this product, visit our web site at http://www.belden.com .

Update and Revision	Revision Number: 0.188 Revision Date: 02-20-2026
