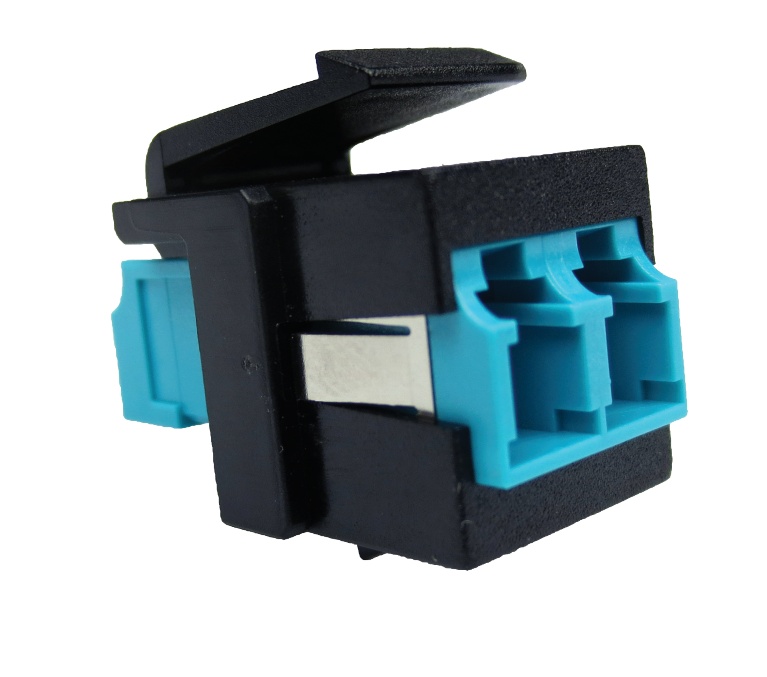

KeyConnect Fiber Module LC Duplex
KeyConnect Fiber Module LC Duplex. Available in several colors and fiber types.
- Availability
- Global
- Status
- Active
- Orderable items
- 15
Part numbers
KEYCONNECT LC DUPLEX MODULE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| AX102415 | Almond | 611589005098 | Order online |
| AX102419 | Almond | 611589005128 | Order online |
| AX104937 | Almond | 611589084376 | Order online |
| AX105641-AL | Almond | 611589152891 | Order online |
| AX105642-AL | Almond | 611589152921 | Order online |
| AX102417 | Black | 611589005111 | Order online |
| AX102421 | Black | 611589005142 | Order online |
| AX104939 | Black | 611589084390 | Order online |
| AX105641-BK | Black | 611589152907 | Order online |
| AX105642-BK | Black | 611589152938 | Order online |
| AX102416 | Electric White | 611589005104 | Order online |
| AX102420 | Electric White | 611589005135 | Order online |
| AX104938 | Electric White | 611589084383 | Order online |
| AX105641-EW | Electric White | 611589152914 | Order online |
| AX105642-EW | Electric White | 611589152945 | Order online |
Specifications
Product Overview
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room |
|---|
Physical Characteristics (Overall)
| Overall Height | 0.85 m |
|---|---|
| Overall Width | 0.65 |
| Overall Depth | 0.79 |
| Front Connection | Flush |
| Packaging | 10 units packaged in a plastic bag. |
| Weight | 0.010 lbs |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Plastic - UL94V-0 | LC-Duplex |
| Rear Connection | Plastic - UL94V-0 | LC-Duplex |
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Connector System Compatibility | KeyConnect |
|---|---|
| Connector/Hardware Retention | 20 lbs |
Standards
| TIA/EIA Compliance | TIA 568.C.3 |
|---|---|
| Environmental Space | Indoor |
Applicable Environmental and Other Programs
| EU Directive 2002/95/EC (RoHS) | Yes |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | Compatible KeyConnect-style Faceplate and Patch Panel |
|---|
Product Notes
| Included Parts | Dust Caps |
|---|---|
| Notes | For additional information about this product, visit our web site at http://www.belden.com . |
History
| Update and Revision | Revision Number: 0.184 Revision Date: 02-20-2026 |
|---|
