Product Number: KEYCONNECT BNC 75 MODULE

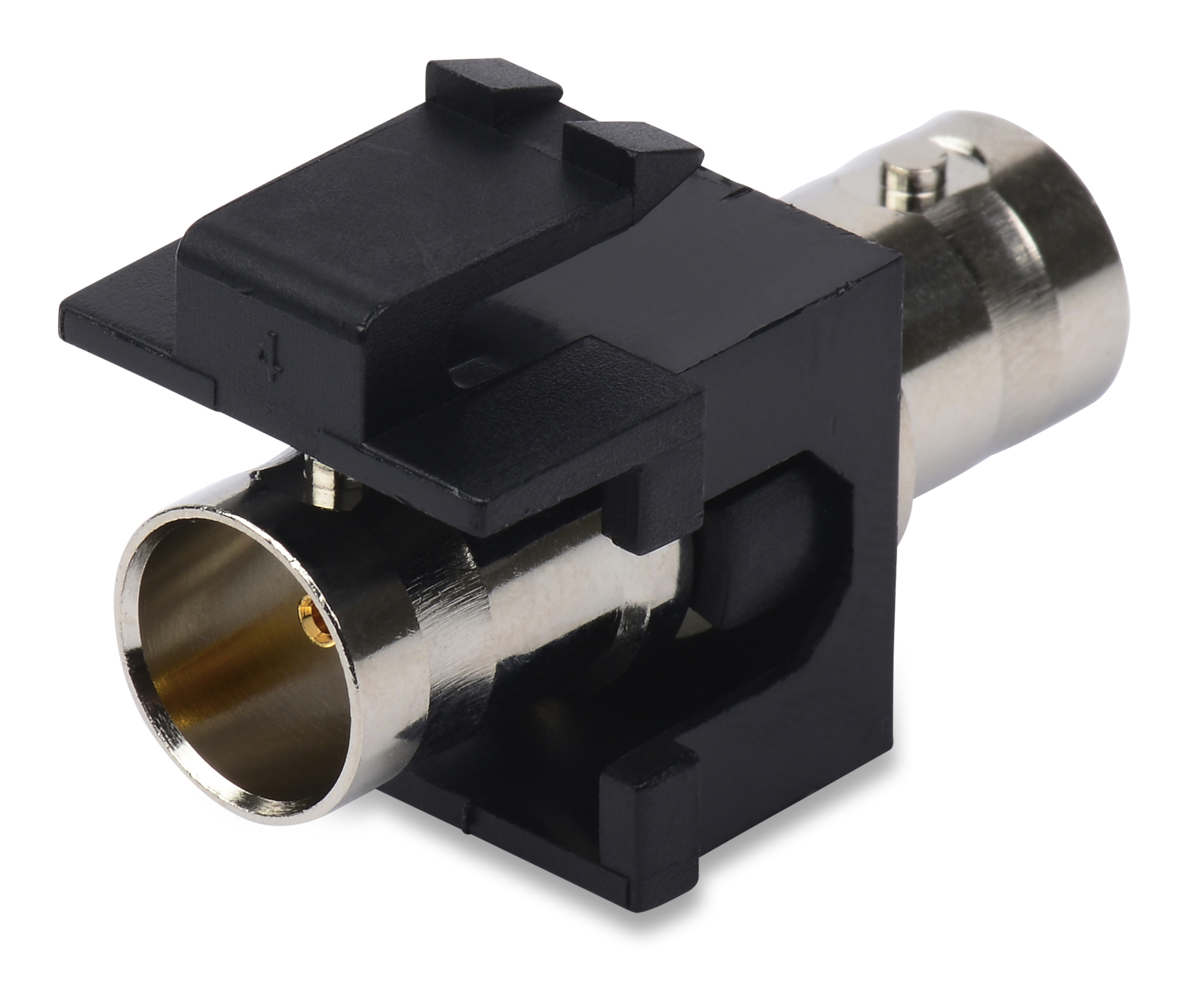

KeyConnect Video BNC 50 or 75 ohm, Surface Module

Name: Belden KEYCONNECT BNC 75 MODULE
Brand: Belden
SKU: KEYCONNECT BNC 75 MODULE

KeyConnect Video BNC 50 or 75 ohm, Surface Module. Available in several colors.

Ships from and sold by A5 IT.

Part numbers

KEYCONNECT BNC 75 MODULE is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX104573	Almond	611589006811	Order online
AX104574	Black	611589006828	Order online
AX104575	Electric White	611589006835	Order online

Suitable Applications	BNC Coax

Overall Height	0.87 m
Overall Width	0.66
Overall Depth	1.28
Front Connection	Flush
Packaging	10 units packaged in a plastic bag.
Weight	0.011 lbs

Material	Plastic - UL94V-0

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	KeyConnect
Connector/Hardware Retention	20 lbs

Environmental Space	Indoor

EU Directive 2002/95/EC (RoHS)	Yes
MII Order #39 (China RoHS)	EUP 50

Safety Listing	c(UL)us Listed

Related Parts	Compatible with KeyConnect Patch Panel and Faceplate, BNC Coax Cable Assembly

Notes	For proper installation refer to Installation Guide PX103826. Visit our web site at http://www.belden.com

Update and Revision	Revision Number: 0.181 Revision Date: 02-20-2026
