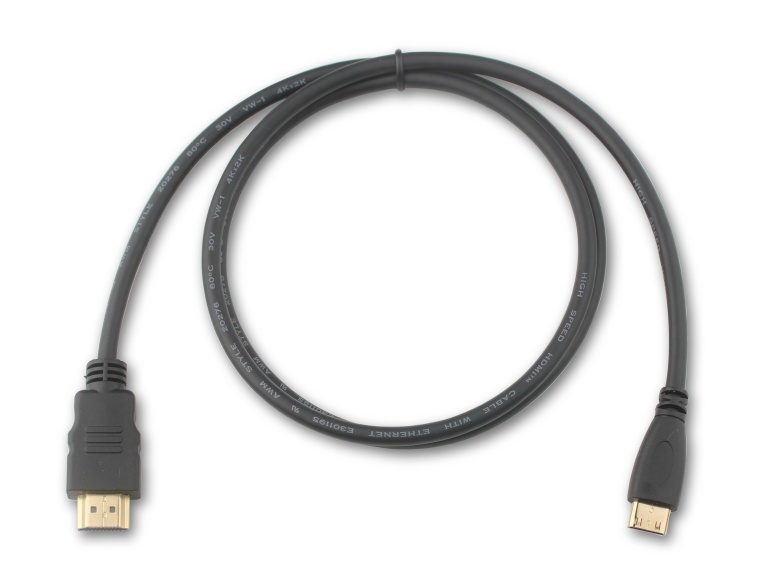

Mini HDMI to Standard HDMI
Mini to Standard High Speed Ethernet Capable HDMI Cable Assembly, supports ultra HD, 4K @ 50/60 (2160p), 3D, audio return channel & DTS-HD master audio, HDMI-CEC & dual viewing. Connector HDMI type A to type C w/PCB with gold plating.
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
HDM Series Mini HighSpeed HDMI is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| HDM001MB | Black | 1 m | Order online |
| HDM002MB | Black | 2 m | Order online |
| HDM003MB | Black | 3 m | Order online |
Specifications
Product Overview
| Suitable Applications | Digital Signage, Computer Monitors, Projectors, Gaming Consoles, DVD Players |
|---|
Physical Characteristics (Overall)
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter | .197 in |
Electrical Characteristics
Voltage
| Voltage Rating [V] | 30V |
|---|
Temperature Range
| Operating Temperature Range | 0°C To +80°C |
|---|
Mechanical Characteristics
| Maximum Recommended Pulling Tension | 11 lbs |
|---|
Termination Interface
| Connection |
|---|
| HDMI Type A |
| HDMI Type C w/PCB |
Standards
| UL Rating | AWM 20276 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|
Suitability
| Suitability - Indoor | Yes |
|---|
Flammability, LS0H, Toxicity Testing
| UL Flammability | VW-1 |
|---|
History
| Update and Revision | Revision Number: 0.66 Revision Date: 11-21-2024 |
|---|
Resources
Related commercial hdmi cable

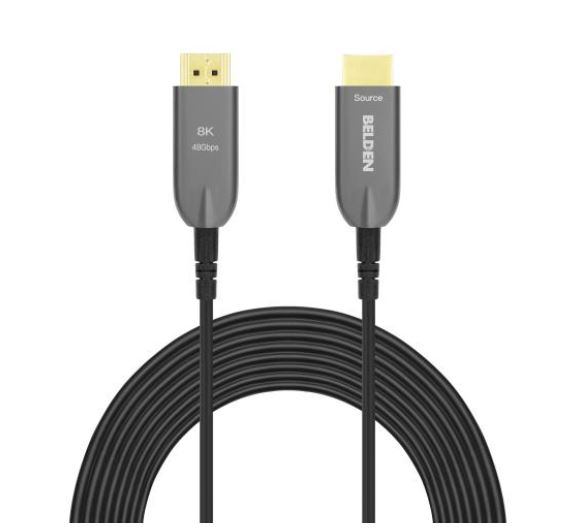

HA21AAxxxx
HDMI 2.1 Active Optical cable, 4K@60Hz, 4K@100Hz, 4K@100Hz, 8K@60Hz
14 items

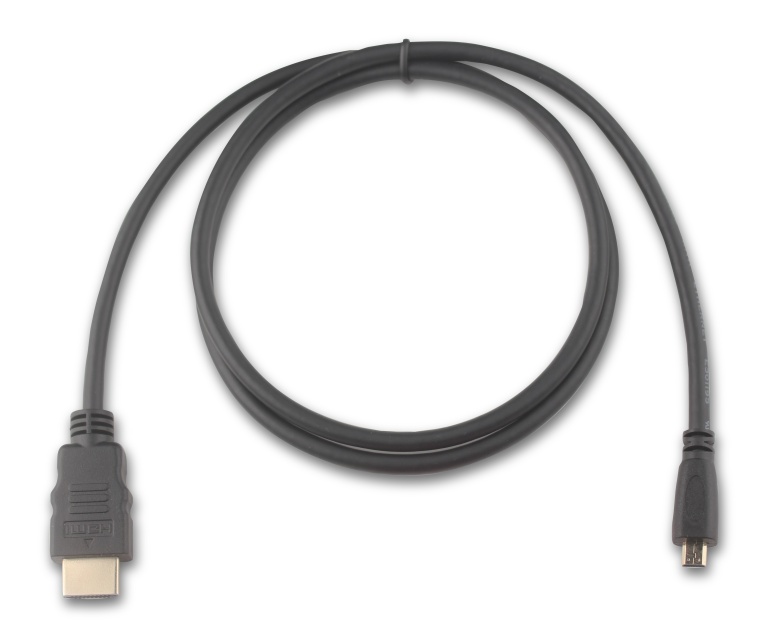

HDC Series MicroHighSpeed HDMI
Micro HDMI to Standard HDMI
PVC - Polyvinyl Chloride
3 items

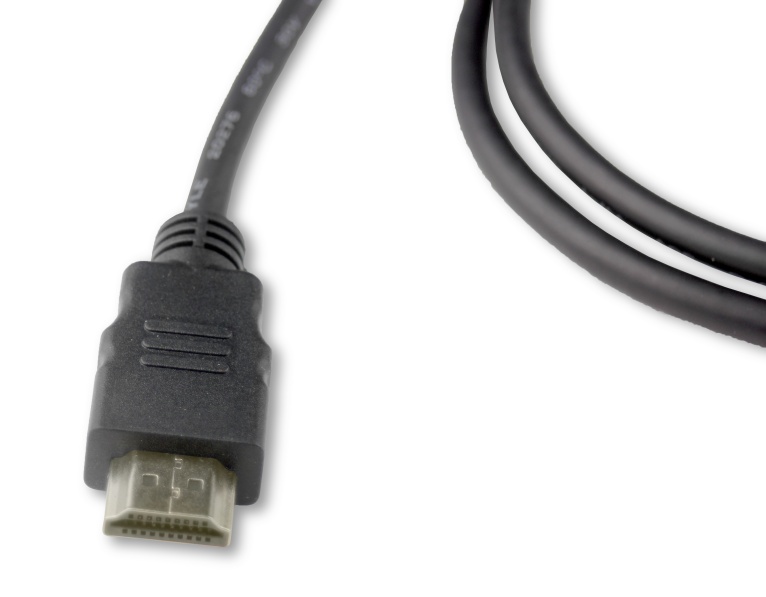

HDE Series High Speed HDMI
High Speed HDMI
17 items

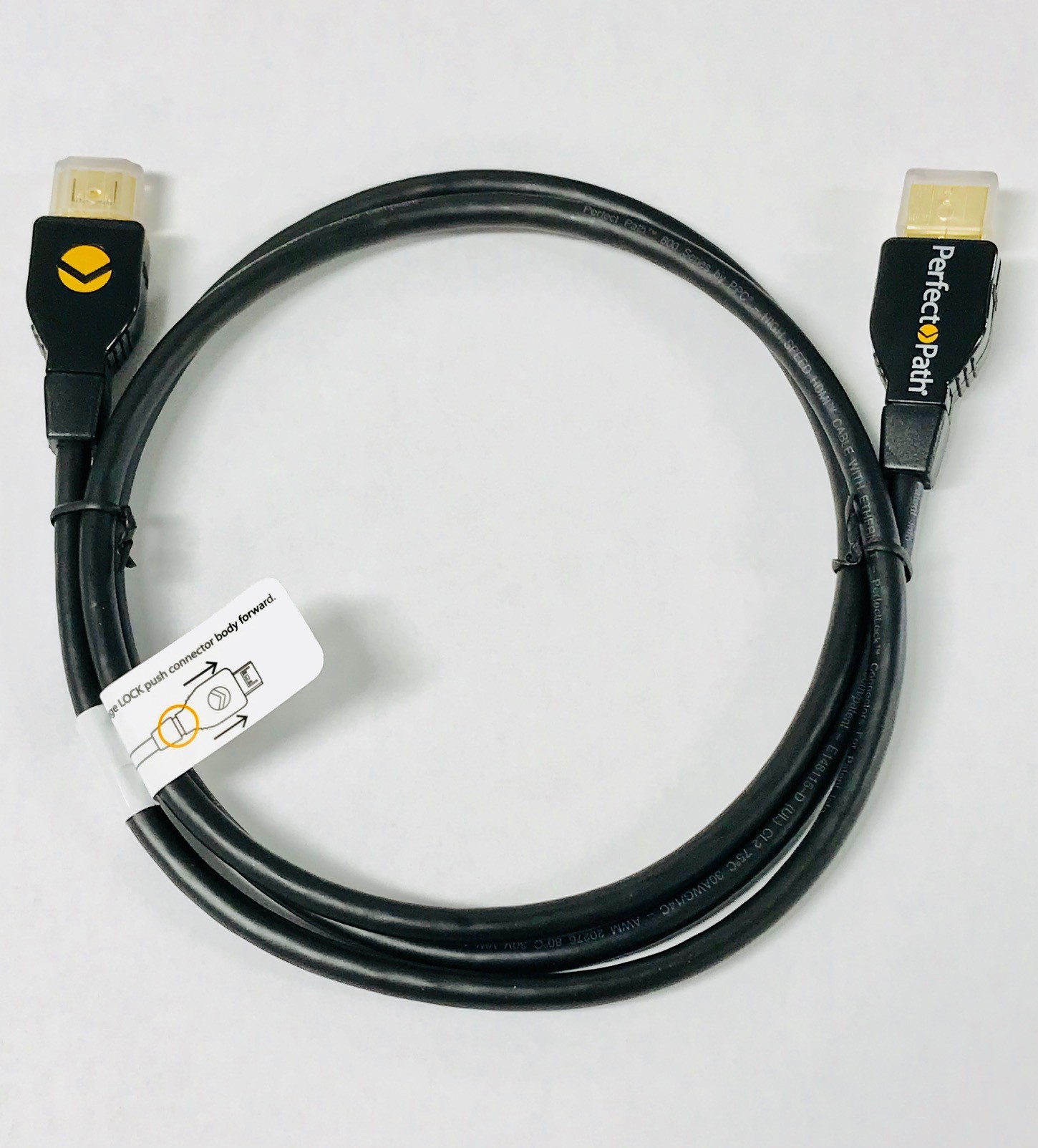

Perfect Path Locking HDMI
