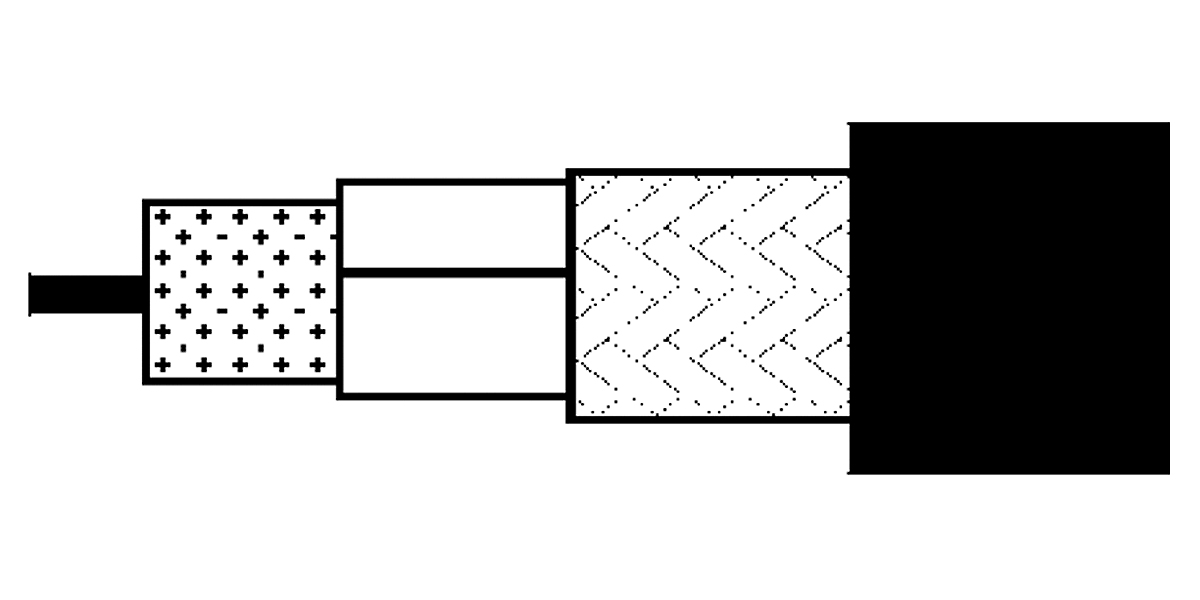

PRG7C01 - Broadband Coax, RG7 Type, 17 AWG Solid BC, CU-Foil + 30% BC Braid, PE Jkt
Broadband Coax, RG7 Type, 17 AWG Solid Bare Copper Conductor, PE Insulation, Copper Foil + 30% Bare Copper Braid Shield, PE Jacket
- Availability
- EMEA | Asia Pacific
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
|---|
Construction Details
| RG Type | 7/U Type |
|---|---|
| Outer Jacket1 Table Notes | According to EN 50290-2-20 |
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 17 AWG |
| Stranding | Solid |
| Nom. Diameter | 1.2 mm |
| Material | BC - Bare Copper |
Insulation
| Element | Insulated Conductor |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 5.4 mm (0.21 in) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Bi-Laminate (Bare Copper+Poly) | 100% |
| 2 | Braid | Bare Copper (BC) | 30% |
Outer Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 7.1 mm |
Electrical Characteristics
| Regularity of Impedance | Min. 40 dB |
|---|---|
| Return Loss Table Notes | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Attenuation Table Notes | Max. attenuation 10% higher |
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 - 30 MHz | 23 dB |
| 30 - 470 MHz | 23 dB |
| 470 - 1000 MHz | 20 dB |
| 1000 - 2000 MHz | 18 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 1.2 dB/100m |
| 50 MHz | 3.6 dB/100m |
| 100 MHz | 5.2 dB/100m |
| 200 MHz | 7.9 dB/100m |
| 400 MHz | 10.5 dB/100m |
| 600 MHz | 13 dB/100m |
| 800 MHz | 15.2 dB/100m |
| 1000 MHz | 17.1 dB/100m |
| 1350 MHz | 20.1 dB/100m |
| 1600 MHz | 22.1 dB/100m |
| 1750 MHz | 23.2 dB/100m |
| 2150 MHz | 26 dB/100m |
| 2400 MHz | 27.7 dB/100m |
Electricals
| Max. Conductor DCR | 15.6 Ohm/km (4.75 Ohm/1000ft) |
|---|---|
| Nom. Outer Shield DCR | 19 Ohm/km (5.8 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 54 pF/m (16 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 83% |
Screening
| Frequency | 30 - 1000 MHz |
|---|---|
| Min. Screening Attenuation | 85 dB |
Mechanical Characteristics
| Bulk Cable Weight | 42.1 kg/km |
|---|
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 70 mm (2.8 in) |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| ISO/IEC Compliance | IEC 61196 |
| CENELEC Compliance | EN 50117-1 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.262 Revision Date: 02-20-2026 |
|---|
