Product Number: PRG11D3

PRG11D3 - Broadband Coax, RG11 Type, 15 AWG Solid BC, Tri Shield, 70% TC Braid, PE Jkt

Broadband Coax, RG11 Type, 15 AWG Solid Bare Copper Conductor, PE Insulation, Duobond Plus® + 70% Tinned Copper Braid Shield, PE Jacket

Availability: EMEA | Asia Pacific
Status: Discontinued
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

PRG11D3 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
PRG11D3.00500	Black	Reel	500 m	8719605106407	Order online

Specifications

Product Overview

Suitable Applications	Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

Product Life Cycle

Life Cycle	Discontinued - the product is no longer manufactured

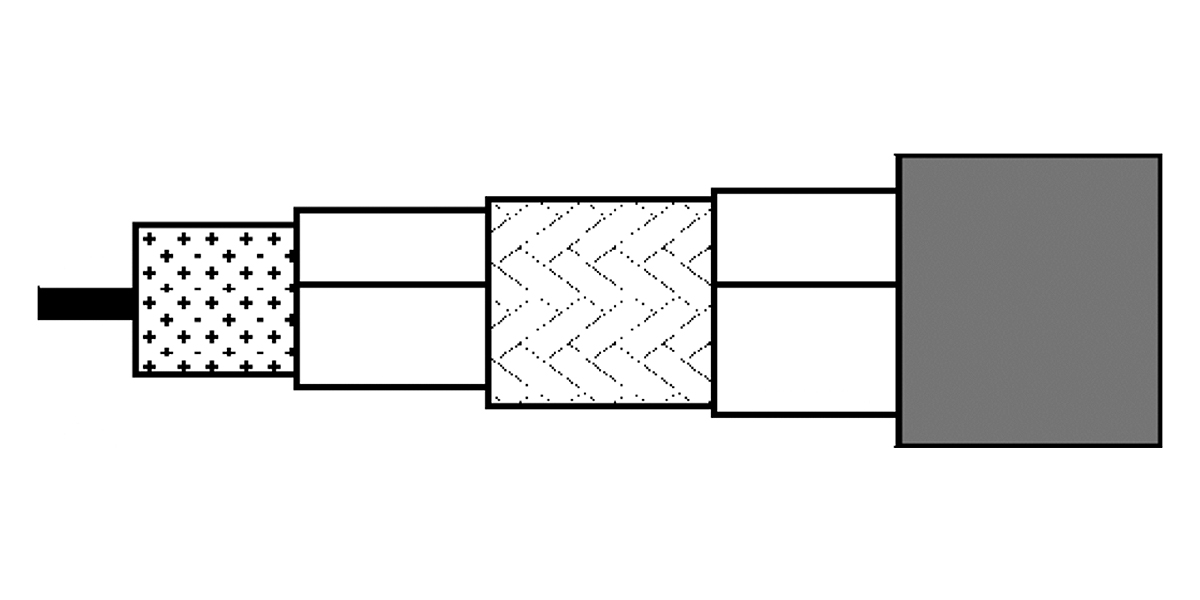

Construction Details

RG Type	11
Outer Jacket1 Table Notes	According to EN 50290-2-20

Conductor

No. of Elements	1
Size	15 AWG
Stranding	Solid
Nom. Diameter	1.55 mm
Material	BC - Bare Copper

Insulation

Element	Insulated Conductor
Material	PE - Polyethylene (Foam)
Nom. Insulation Diameter	7.25 mm (0.285 in)

Outer Shield

Layer	Outer Shield Type	Material	Coverage
1	Tape	Tri-Laminate (Alum+Poly+Alum)	100%
2	Braid	Tinned Copper (TC)	70%
3	Tape	Bi-Laminate (Alum+Poly)	100%

Outer Jacket

Material	PE - Polyethylene
Nom. Diameter	10.1 mm

Electrical Characteristics

Regularity of Impedance	Min. 46 dB
Return Loss Table Notes	In each frequency band, 3 peak values up to 4 dB lower are allowed
Attenuation Table Notes	Max. attenuation 10% higher
Screening Class	A+

Return Loss

Frequency	Min. Return Loss
5 - 30 MHz	26 dB
30 - 470 MHz	26 dB
470 - 100 MHz	23 dB
1000 - 2000 MHz	18 dB

Attenuation

Frequency	Nom. Attenuation
5 MHz	0.9 dB/100m
50 MHz	2.8 dB/100m
100 MHz	3.9 dB/100m
200 MHz	5.7 dB/100m
400 MHz	8.2 dB/100m
600 MHz	10.2 dB/100m
800 MHz	12 dB/100m
1000 MHz	13.6 dB/100m
1350 MHz	16.1 dB/100m
1600 MHz	17.8 dB/100m
1750 MHz	18.7 dB/100m
2150 MHz	21.1 dB/100m
2400 MHz	22.5 dB/100m
3000 MHz	25.2 dB/100m

Electricals

Max. Conductor DCR	9.4 Ohm/km (2.9 Ohm/1000ft)
Nom. Outer Shield DCR	7.0 Ohm/km (2.1 Ohm/1000ft)
Nom. Capacitance Cond-to-Shield	55 pF/m (17 pF/ft)
Nom. Characteristic Impedance	75 Ohm
Nom. Velocity of Prop.	81%

Transfer Impedance

Max. Transfer Impedance
Max. 2.5 mOhm/m
Typ. 1.9 mOhm/m

Screening

Frequency	30 - 1000 MHz
Min. Screening Attenuation	95 dB

Mechanical Characteristics

Temperature

Operating	-40°C To +70°C
Installation	-5°C To +50°C
Storage	-40°C To +70°C

Bend Radius

Stationary Min.	100 mm (3.9 in)

Standards and Compliance

Environmental Suitability	Outdoor
CENELEC Compliance	EN 50117-1, EN 50117-9-2, EN 50290-2-20
European Directive Compliance	EU CE Mark

History

Update and Revision	Revision Number: 0.307 Revision Date: 02-20-2026
