H126D04 - Broadband Coax, H126D, 18 AWG Solid BC, Tri-shield, PE Jkt

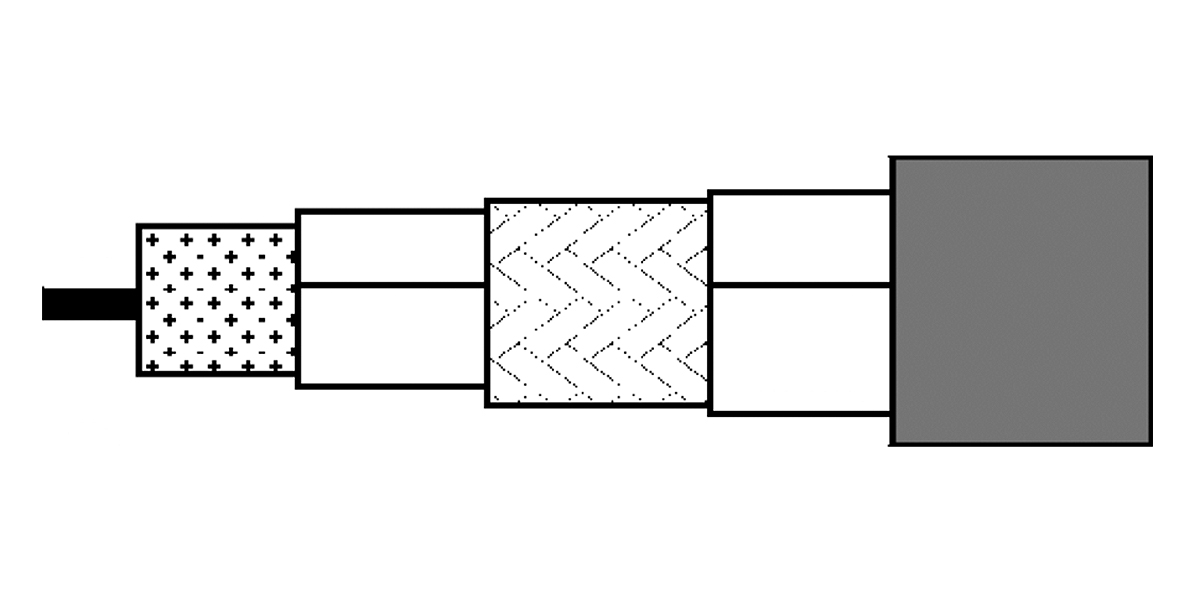

Broadband Coax, H126D, 18 AWG Solid Bare Copper Conductor, PE Insulation, Duofoil + 50% Tinned Copper Braid + Foil Shield, PE Jacket
- Availability
- EMEA | Asia Pacific
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
|---|
Construction Details
| RG Type | 6 |
|---|---|
| Outer Jacket1 Table Notes | According to European Standard EN 50290-2-20 |
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 18 AWG |
| Stranding | Solid |
| Nom. Diameter | 1 mm |
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 4.57 mm (0.180 in) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | 100% |
| 2 | Braid | Tinned Copper (TC) | 45% |
| 3 | Tape | Bi-Laminate (Alum+Poly) | 100% |
Outer Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 6.9 mm |
Electrical Characteristics
| Regularity of Impedance | Min. 40 dB |
|---|---|
| Return Loss Table Notes | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Attenuation Table Notes | Max. attenuation 10% higher |
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 - 470 MHz | 20 dB |
| 470 - 1000 MHz | 18 dB |
| 1000 - 2000 MHz | 16 dB |
| 2000 - 3000 MHz | 15 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 1.8 dB/100m |
| 50 MHz | 4.7 dB/100m |
| 100 MHz | 6.5 dB/100m |
| 230 MHz | 9.8 dB/100m |
| 400 MHz | 13 dB/100m |
| 800 MHz | 18.7 dB/100m |
| 862 MHz | 19.5 dB/100m |
| 1000 MHz | 21.1 dB/100m |
| 1350 MHz | 24.9 dB/100m |
| 1750 MHz | 28.8 dB/100m |
| 2150 MHz | 32.3 dB/100m |
| 2400 MHz | 34.4 dB/100m |
| 3000 MHz | 39.2 dB/100m |
Electricals
| Max. Conductor DCR | 23 Ohm/km (7.0 Ohm/1000ft) |
|---|---|
| Nom. Outer Shield DCR | 14 Ohm/km (4.3 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 54 pF/m (16 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 82% |
Screening
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 95 dB |
| 1000 - 2000 MHz | 85 dB |
| 2000 - 3000 MHz | 75 dB |
Mechanical Characteristics
| Bulk Cable Weight | 40 kg/km |
|---|
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 65 mm (2.6 in) |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| ISO/IEC Compliance | IEC 61196 |
| CENELEC Compliance | EN 50117-1 |
History
| Update and Revision | Revision Number: 0.247 Revision Date: 02-20-2026 |
|---|
