CX4C1 - Broadband Coax 4, 11 AWG Solid BC, BC Foil, PE Jkt
Broadband Coax 4,11 AWG Solid Bare Copper Conductor, PE Insulation, Copper Foil Shield, PE Jacket.
- Availability
- EMEA | Asia Pacific
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | Broadband, Cable Television (CATV) |
|---|

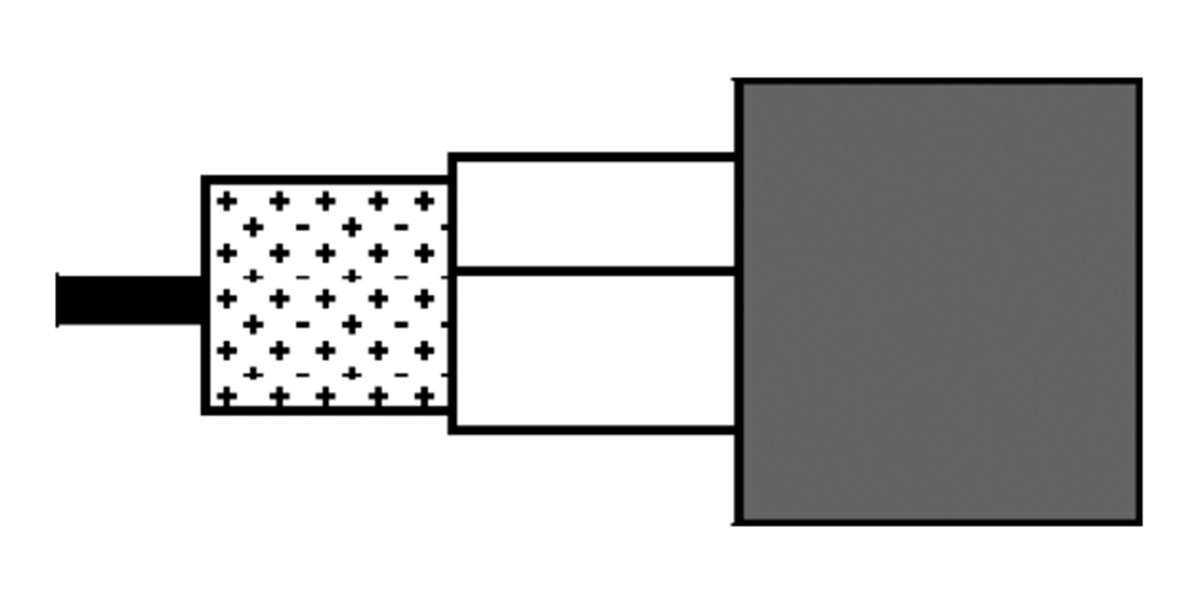

Construction Details
| Series Type | CATV-Trunk Type |
|---|---|
| Insulation Table Notes | Centricity min. 85% |
| Outer Jacket1 Table Notes | According to European Standard EN 50290-2-20 |
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 12 AWG |
| Stranding | Solid |
| Nom. Diameter | 2.23 mm |
| Material | BC - Bare Copper |
Insulation
| Element | Insulated Conductor |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 10.2 mm (0.402 in) |
Outer Shield
| Outer Shield Type | Tape |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 100% |
Outer Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 13.8 mm |
Electrical Characteristics
| Regularity of Impedance | Min. 46 dB |
|---|---|
| Return Loss Table Notes | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Attenuation Table Notes | Max. attenuation 10% higher |
| Screening Class | A+ |
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 - 30 MHz | 26 dB |
| 30 - 470 MHz | 26 dB |
| 470 - 862 MHz | 23 dB |
| 862 - 2400 MHz | 18 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 0.6 dB/100m |
| 50 MHz | 1.9 dB/100m |
| 100 MHz | 2.8 dB/100m |
| 200 MHz | 4 dB/100m |
| 400 MHz | 5.9 dB/100m |
| 600 MHz | 7.4 dB/100m |
| 800 MHz | 8.8 dB/100m |
| 1000 MHz | 10 dB/100m |
| 1350 MHz | 11.9 dB/100m |
| 1750 MHz | 13.9 dB/100m |
| 2150 MHz | 15.7 dB/100m |
| 2400 MHz | 16.8 dB/100m |
Electricals
| Max. Conductor DCR | 4.5 Ohm/km (1.4 Ohm/1000ft) |
|---|---|
| Nom. Outer Shield DCR | 4.5 Ohm/km (1.4 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 54 pF/m (16 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 82% |
Transfer Impedance
| Max. Transfer Impedance | Max. 1.9 mOhm/m |
|---|
Screening
| Frequency | 30 - 1000 MHz |
|---|---|
| Min. Screening Attenuation | 90 dB |
Mechanical Characteristics
| Max. Pull Tension | 600 N (130 lbf) |
|---|---|
| Bulk Cable Weight | 164 kg/km |
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 150 mm (5.9 in) |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| ISO/IEC Compliance | IEC 61196 |
| CENELEC Compliance | EN 50117-1 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.247 Revision Date: 02-20-2026 |
|---|
