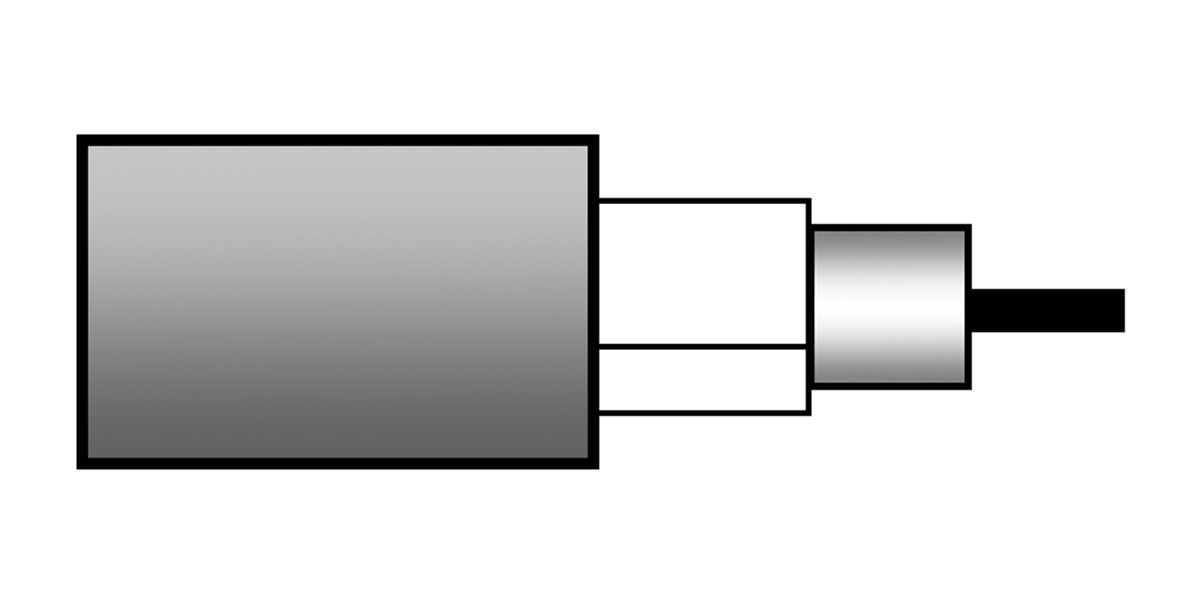

CX3C1 - Broadband Coax 3, 8 AWG Solid BC, BC Foil, PE Jkt
Broadband Coax 3, 8 AWG Solid Bare Copper Conductor, PE Insulation, Copper Foil Shield, PE Jacket.
- Availability
- EMEA | Asia Pacific
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | Broadband, Cable Television (CATV) |
|---|
Construction Details
| Series Type | CATV-Trunk Type |
|---|---|
| Insulation Table Notes | Centricity min. 85% |
| Outer Jacket1 Table Notes | According to European Standard EN 50290-2-20 |
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 8 AWG |
| Stranding | Solid |
| Nom. Diameter | 3.38 mm |
| Material | BC - Bare Copper |
Insulation
| Element | Insulated Conductor |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 14.9 mm (0.587 in) |
Outer Shield
| Outer Shield Type | Tape |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 100% |
Outer Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 18 mm |
Electrical Characteristics
| Regularity of Impedance | Min. 46 dB |
|---|---|
| Return Loss Table Notes | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Attenuation Table Notes | Max. attenuation 10% higher |
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 - 30 MHz | 26 dB |
| 30 - 470 MHz | 26 dB |
| 470 - 862 MHz | 22 dB |
| 862 - 2400 MHz | 18 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 0.4 dB/100m |
| 50 MHz | 1.3 dB/100m |
| 100 MHz | 1.8 dB/100m |
| 200 MHz | 2.6 dB/100m |
| 400 MHz | 3.9 dB/100m |
| 600 MHz | 4.8 dB/100m |
| 800 MHz | 5.7 dB/100m |
| 1000 MHz | 6.5 dB/100m |
| 1350 MHz | 7.7 dB/100m |
| 1750 MHz | 9 dB/100m |
| 2150 MHz | 10.2 dB/100m |
| 2400 MHz | 10.9 dB/100m |
Electricals
| Max. Conductor DCR | 1.9 Ohm/km (0.58 Ohm/1000ft) |
|---|---|
| Nom. Outer Shield DCR | 2.6 Ohm/km (0.79 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 54 pF/m (16 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 84% |
Screening
| Frequency | 30 - 1000 MHz |
|---|---|
| Min. Screening Attenuation | 100 dB |
Mechanical Characteristics
| Max. Pull Tension | 1200 N (270 lbf) |
|---|---|
| Bulk Cable Weight | 267 kg/km |
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 180 mm (7.1 in) |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| ISO/IEC Compliance | IEC 61196 |
| CENELEC Compliance | EN 50117-1 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.259 Revision Date: 02-20-2026 |
|---|
