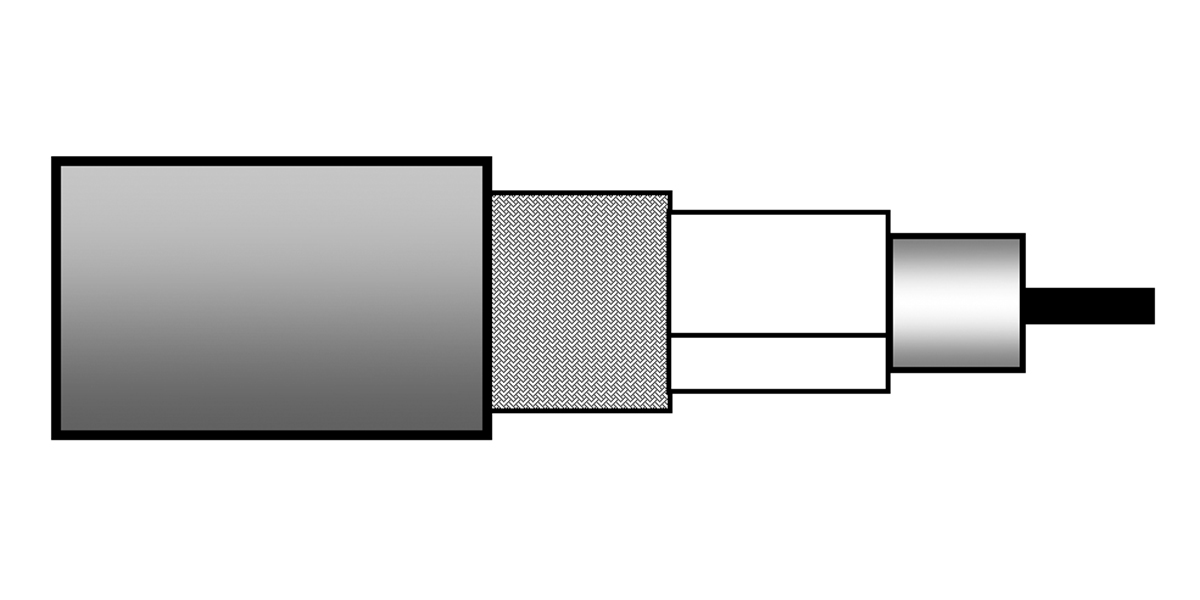

CTF167P - Broadband Coax, 14 AWG Solid BC, Foil + 50% BC Braid, PE Jkt
Broadband Coax, 14 AWG Solid Bare Copper Conductor, PE Insulation, Copper Foil + 50% Bare Copper Braid Shield, PE Jacket.
- Availability
- Global
- Status
- Discontinued
- Orderable items
- 1
Part numbers
CTF167P is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| CTF167P.00100 | Black | Reel | 100 m | 8719605047403 | Order online |
Specifications
Product Overview
| Suitable Applications | Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
|---|
Product Life Cycle
| Life Cycle | Discontinued - the product is no longer manufactured |
|---|
Construction Details
| RG Type | 11 |
|---|
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 14 AWG |
| Stranding | Solid |
| Nom. Diameter | 1.63 in |
| Material | BC - Bare Copper |
Insulation
| Element | Insulated Conductor |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 7.28 mm (0.287 in) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Bi-Laminate (Bare Copper+Poly) | 100% |
| 2 | Braid | Bare Copper (BC) | 50% |
Outer Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 10.1 mm |
Electrical Characteristics
| Regularity of Impedance | Min. 40 or max. 1% dB |
|---|---|
| Return Loss Table Notes | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Screening Table Notes | Flexing with 5 test cylces and 120 mm radius |
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5-470 MHz | 23 dB |
| 470 - 1000 MHz | 20 dB |
| 1000 - 2000 MHz | 18 dB |
| 2000 - 3000 MHz | 16 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 0.9 dB/100m |
| 50 MHz | 2.8 dB/100m |
| 100 MHz | 3.9 dB/100m |
| 200 MHz | 5.7 dB/100m |
| 460 MHz | 9.2 dB/100m |
| 800 MHz | 12.2 dB/100m |
| 860 MHz | 12.6 dB/100m |
| 1000 MHz | 14 dB/100m |
| 1750 MHz | 19.2 dB/100m |
| 2150 MHz | 21.9 dB/100m |
| 2400 MHz | 23.2 dB/100m |
| 3000 MHz | 26.1 dB/100m |
Electricals
| Max. Conductor DCR | 8.5 Ohm/km (2.6 Ohm/1000ft) |
|---|---|
| Nom. Outer Shield DCR | 10 Ohm/km (3.0 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 54 pF/m (16 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 81% |
Screening
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 75 dB |
| 1000 - 2000 MHz | |
| 2000 - 3000 MHz |
Mechanical Characteristics
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 50 mm (2.0 in) |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| CENELEC Compliance | EN 50117-1, EN 50117-9-2, EN 50290-2-20 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.291 Revision Date: 02-20-2026 |
|---|
