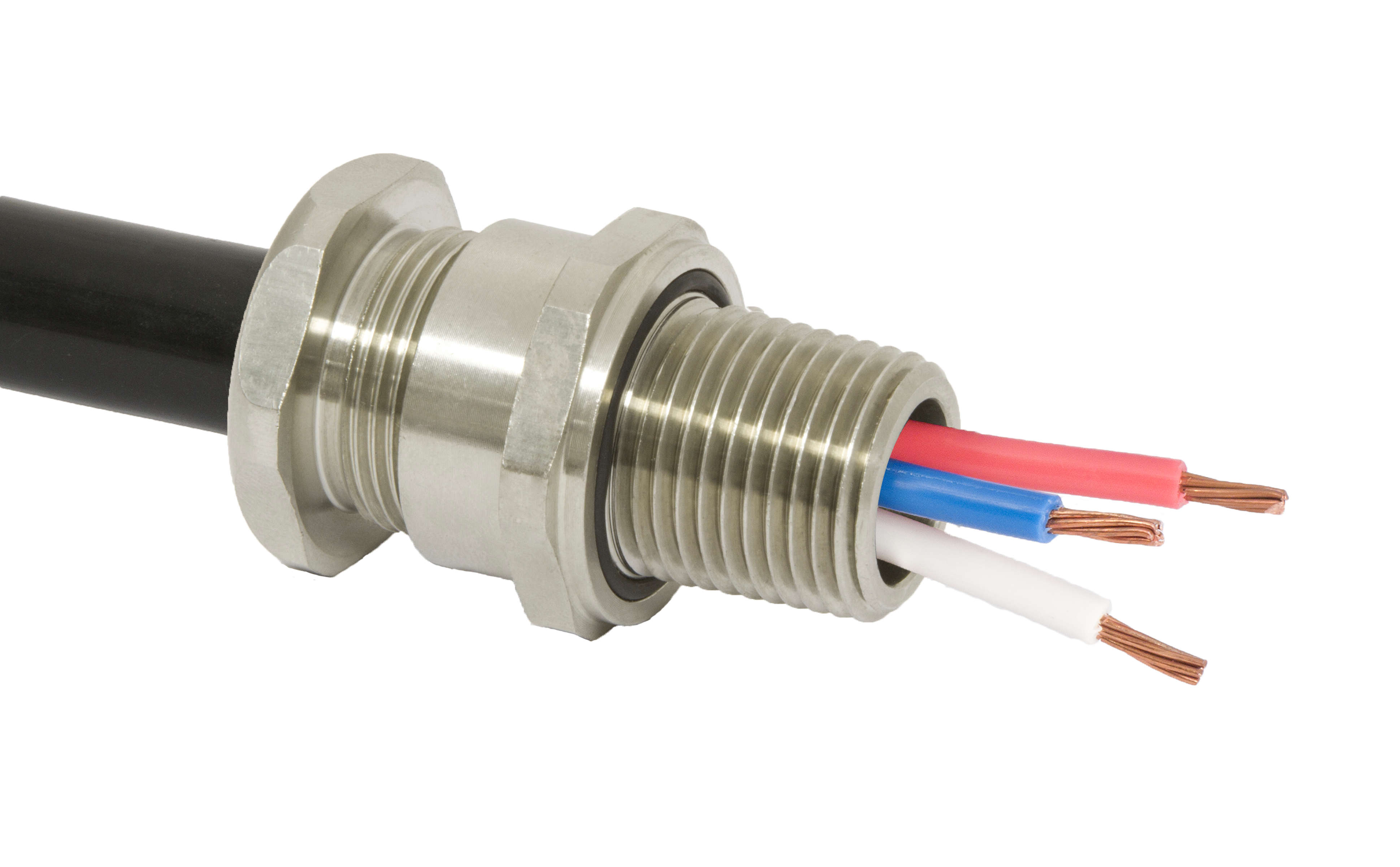

Product Number: BTC250A2201RA

Cable Gland 3/4 NPT, Cable Range 1.86" -2.20"

Cable Gland For All Types Of Unarmored Tray Cables, Flexible Cables & Cords. Pass-Through Design for Shield/Ground Isolation. Suitable For Wet And Hazardous Locations, Class I division 2. Globally Marked, cCSAus, IECEx and ATEX. Ingress Protection to Nem 4X and IP66/IP67/IP68 Includes Removable Insert for Increased Cable Range. Min Cable Size 1.86", Max Cable Size 2.20".

Availability: Americas
Status: Active

Ships from and sold by A5 IT.

Specifications

Product description

Strain-Relief	Displacement Seal with Removable Insert

Product Materials

Material	Copper Free (0.4%) Aluminum

Resistances

Vibration Resistance	EMC resistance

Product Packaging

Packaging	Individual Boxed

Accessories

Accessories to Order Separately	B250NPTCLN6 - Locknut

Additional technical data

Weight	13.58 Oz

Other standards

Update and Revision	Revision Number: 0.14 Revision Date: 02-24-2026
