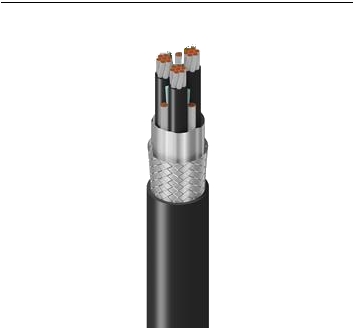

VFD, 3C #14 Str TC XLPE Ins + #18 Symm. Seg. Gnd (3 of #18) Str TC, OS +TC Brd, Blk PVC Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V CSA AWM I/II A/B
Belden Premium VFD, 12 AWG (41 x 30) Tinned Copper, 3 Conductor, XLPE Insulation M4 Color Code, Duofoil Beldfoil Shield With 3 #18 AWG (41 x 34) Tinned Copper Ground Wire in Continuous Contact with Overall Beldfoil® (100%) + Tinned Copper Braid Coverage (85%), Black Outer PVC Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V, CSA AWM I/II A/B Sun Res Dir Bur Oil Resistant.
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Variable Frequency Drives (VFD); AC Motor and Drive Systems; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0791RA |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.42 in (11 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Conductor(s) | 3 | 14 AWG | 41x30 | TC - Tinned Copper | ASTM B3 Copper B8 Class B Stranding |
| Ground Wire | 3 | 18 AWG | 41x34 | TC - Tinned Copper | Segmented Ground 18AWG |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLPO - Crosslink Polyolefin | 0.030 in (0.76 mm) | 0.032 in (0.81 mm) | ICEA Chart M4 |
| Ground |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Tinned Copper (TC) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.047 in (1.2 mm) |
| Nom. Diameter | 0.42 in (11 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Conductor(s) | 2.282 Ohm/1000ft (7.487 Ohm/km) | 23.0 pF/ft (75.5 pF/m) | 42 pF/ft (140 pF/m) | 80 Ohm | 55% | 25 Amps per Conductor at 30oC |
| Ground | 1.9 Ohm/1000ft (6.2 Ohm/km) |
Voltage
| UL Voltage Rating | 600 / 1000V (TC-ER) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 186 lbs (84.4 kg) |
|---|---|
| Bulk Cable Weight | 136 lbs/1000ft (202 kg/km) |
Temperature
| UL Temperature | 90C Dry, 90C Wet |
|---|---|
| Operating | -20C To +90C |
| Installation | -20C |
Bend Radius
| Stationary Min. | 3.15 in (80.0 mm) |
|---|---|
| Installation Min. | 3.15 in (80.0 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL Loading, IEEE 1202 FT4 |
| NEC / UL Compliance | Article 336, TC, XHHW-2 |
| ICEA Compliance | S-95-658 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.54 Revision Date: 04-02-2026 |
|---|
