Product Number: 29513

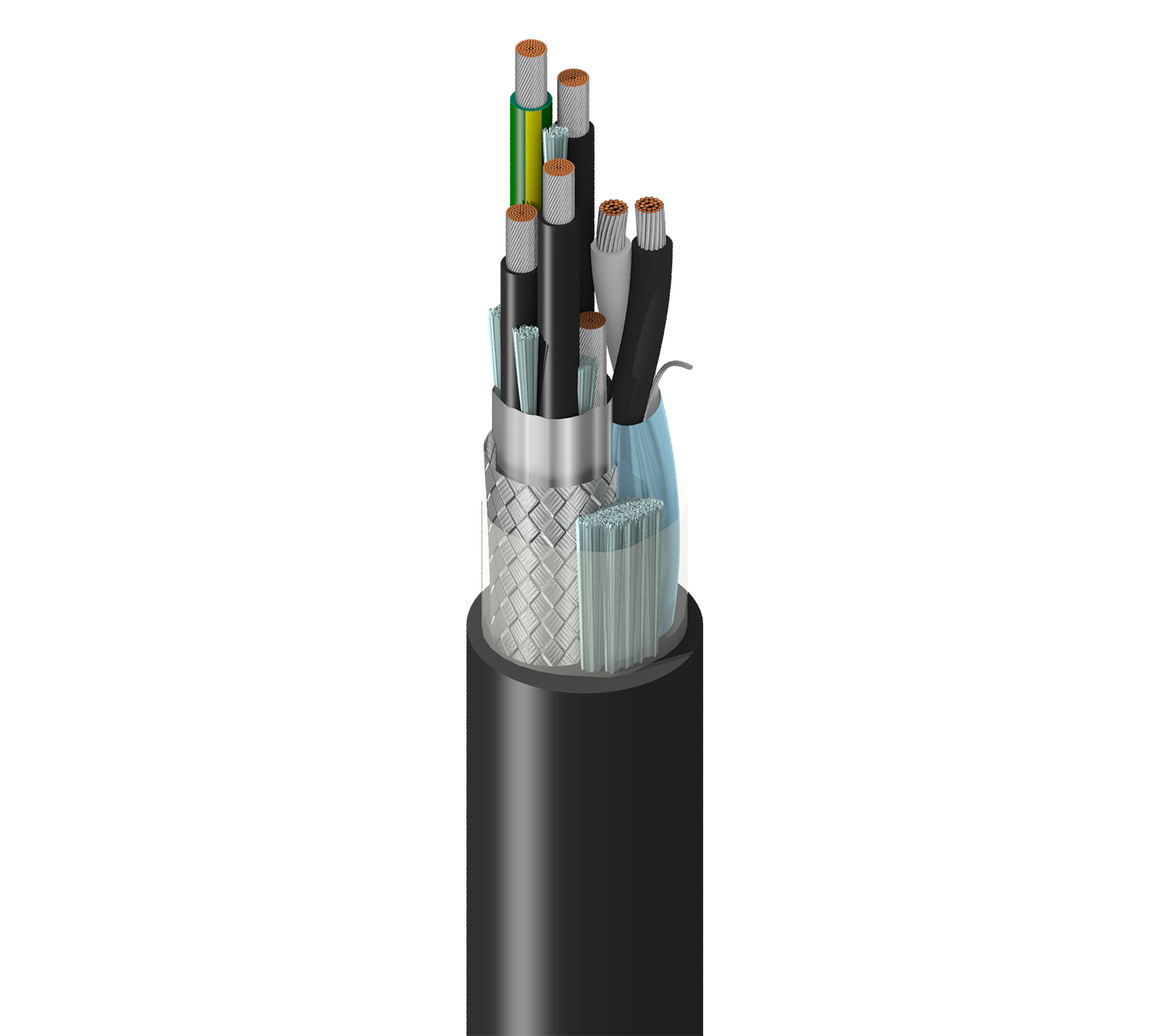

VFD 300% Gnd, 3C+G #10 Str TC, XLPE Ins+PVC Gnd, OS+TC Brd, 1 Pr #16 Str TC XLPE IS, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable

Belden 300% Ground Flexible VFD, 3 Conductor 10AWG (105x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, 1 Pair 16AWG (26x30) Tinned Copper XLPE Beldfoil, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant -- Shielded Pair is Outside the Power Group Braid Shield for Isolation

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

29513 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
29513 010100	Black	Reel	100 ft	612825137580	C	Order online
29513 0101000	Black	Reel	1,000 ft	612825137597	C	Order online
29513 0103000	Black	Reel	3,000 ft	612825137603	C	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.713 Revision Date: 04-01-2026
Footnote	C - CRATE REEL PUT-UP.

Product Overview

Suitable Applications	Variable Frequency Drives (VFD); AC Motor and Drive Systems; Class 1 Division 2 Hazardous Locations

Construction Details

Outer Shield Table Notes	Foil+braid shield on power conductors & Ground only; extra pair has own foil shield.
Overall Cable Diameter (Nominal)	0.985 in (25.0 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material	Notes
Conductor(s)	3	10 AWG	105x30	TC - Tinned Copper
Pair(s)	1	16 AWG	26x30	TC - Tinned Copper	Used as control or brake pair
Ground Wire	1	10 AWG	105x30	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLPE - Cross Linked Polyethylene	0.046 in (1.2 mm)	0.212 in (5.38 mm)	ICEA Chart M4
Pair(s)	XLPE - Cross Linked Polyethylene	0.032 in (0.81 mm)	0.123 in (3.12 mm)	Black, White
Ground	PVC - Polyvinyl Chloride	0.046 in (1.2 mm)	0.212 in (5.38 mm)	Green/Yellow Stripe

Inner Shield

Element	Pair(s)
Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	18 AWG (19x30) TC
Notes	Foil-In, Shorting fold

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Tri-Laminate (Alum+Poly+Alum)	100%	10 AWG (105x30) TC
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.105 in (2.67 mm)
Nom. Diameter	0.985 in (25.0 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	0.72 Ohm/1000ft (2.4 Ohm/km)

Electricals

Element	Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Shield	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence	Nom. Inductance	Nom. Velocity of Prop.	Max. Current
Conductor(s)	0.969 Ohm/1000ft (3.18 Ohm/km)		46 pF/ft (150 pF/m)	53 pF/ft (170 pF/m)	83 pF/ft (270 pF/m)	37 Ohm	0.184 μH/ft (0.604 μH/m)	55%	40 Amps per Conductor at 30oC
Pair(s)	4.0 Ohm/1000ft (13 Ohm/km)	4.99 Ohm/1000ft (16.4 Ohm/km)	34 pF/ft (110 pF/m)						18 Amps per Conductor at 30oC (per NEC)
Ground	1.080 Ohm/1000ft (3.543 Ohm/km)

Voltage

UL Voltage Rating	1000 V (UL Flexible Motor Supply Cable), 600 V (TC, C(UL) TC)
Voltage Rating	1000 V (AWM I/II A/B)

Mechanical Characteristics

Max. Pull Tension	857 lbs (389 kg)
Bulk Cable Weight	493 lbs/1000ft (734 kg/km)

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-40°C To +90°C

Bend Radius

Stationary Min.	11.8 in (300 mm)
Installation Min.	11.8 in (300 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1685 UL Loading, FT4, IEEE 1202 FT4
NEC / UL Compliance	Article 336, Article 310, TC-ER, RHW-2, UL Flexible Motor Supply Cable
AWM Compliance	AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
ICEA Compliance	S-95-658
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	P-07-KA070003-MSHA

History

Update and Revision	Revision Number: 0.713 Revision Date: 04-01-2026
Footnote	C - CRATE REEL PUT-UP.
