Product Number: 29512

VFD 300% Gnd, 3C+G #12 Str TC, XLPE Ins+PVC Gnd, OS+TC Brd, 1 Pr #16 Str TC XLPE IS, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable

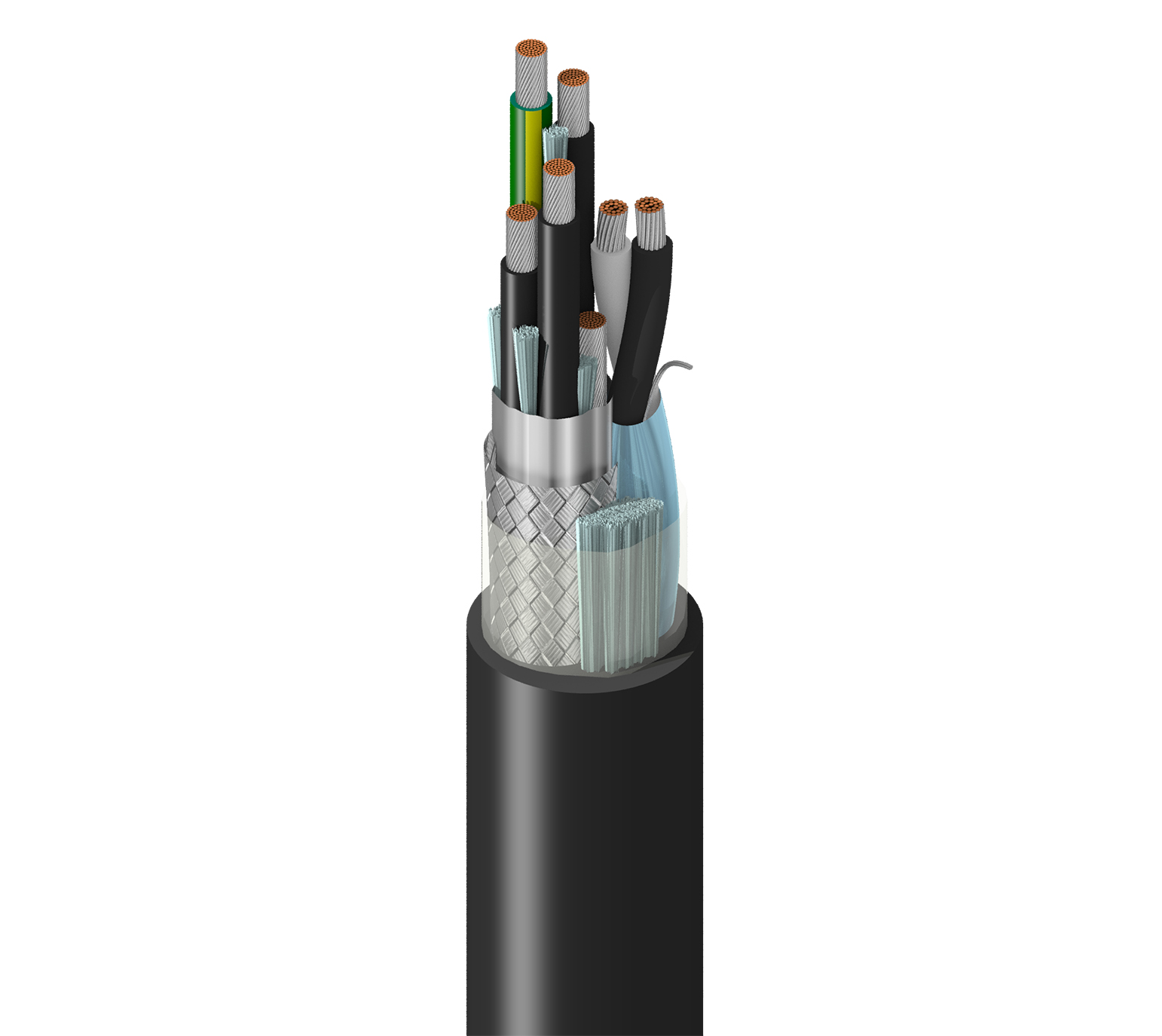

Belden 300% Ground Flexible VFD, 3 Conductor 12AWG (65x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, 1 Pair 16AWG (26x30) Tinned Copper XLPE Beldfoil, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant -- Shielded Pair is Outside the Power Group Braid Shield for Isolation

Availability: Global
Status: Active
Orderable items: 4

Ships from and sold by A5 IT.

Part numbers

29512 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
29512 010100	Black	Reel	100 ft	612825137542	C	Order online
29512 010500	Black	Reel	500 ft	612825137573	C	Order online
29512 0101000	Black	Reel	1,000 ft	612825137559	C	Order online
29512 0104000	Black	Reel	4,000 ft	612825137566	C	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.724 Revision Date: 04-01-2026
Footnote	C - CRATE REEL PUT-UP.

Product Overview

Suitable Applications	Variable Frequency Drives (VFD); AC Motor and Drive Systems; Class 1 Division 2 Hazardous Locations

Construction Details

Outer Shield Table Notes	Foil+braid shield on power conductors & Ground only; extra pair has own foil shield.
Overall Cable Diameter (Nominal)	0.895 in (22.7 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material	Notes
Conductor(s)	3	12 AWG	65x30	TC - Tinned Copper
Pair(s)	1	16 AWG	26x30	TC - Tinned Copper	Used as control or brake pair
Ground Wire	1	12 AWG	65x30	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLPE - Cross-Linked Polyethylene (Thermoset)	0.046 in (1.2 mm)	0.187 in (4.75 mm)	ICEA Chart M4
Pair(s)	XLPO - Crosslink Polyolefin	0.032 in (0.81 mm)	0.123 in (3.12 mm)	Black & White
Ground Wire	PVC - Polyvinyl Chloride	0.047 in (1.2 mm)	0.187 in (4.75 mm)	Green/Yellow Stripe

Inner Shield

Element	Pair(s)
Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	18 AWG (19x30) TC
Notes	Foil-In, Shorting fold

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Tri-Laminate (Alum+Poly+Alum)	100%	12 AWG (65x30) TC
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.080 in (2.0 mm)
Nom. Diameter	0.895 in (22.7 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	0.9 Ohm/1000ft (3.0 Ohm/km)

Electricals

Element	Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Shield	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence	Nom. Inductance	Nom. Velocity of Prop.	Max. Current
Conductor(s)	1.569 Ohm/1000ft (5.148 Ohm/km)		46 pF/ft (150 pF/m)	47 pF/ft (150 pF/m)	83 pF/ft (270 pF/m)	37 Ohm	0.197 μH/ft (0.646 μH/m)	55%	30 Amps per Conductor at 30oC
Pair(s)	4.0 Ohm/1000ft (13 Ohm/km)	4.99 Ohm/1000ft (16.4 Ohm/km)	34 pF/ft (110 pF/m)						18 Amps per Conductor at 30oC (per NEC)
Ground	1.6 Ohm/1000ft (5.2 Ohm/km)		26 pF/ft (85 pF/m)	47 pF/ft (150 pF/m)			0.197 μH/ft (0.646 μH/m)

Voltage

UL Voltage Rating	1000 V (UL Flexible Motor Supply Cable), 600 V (TC, C(UL) TC)
Voltage Rating	1000 V (AWM I/II A/B)

Mechanical Characteristics

Max. Pull Tension	597 lbs (271 kg)
Bulk Cable Weight	373 lbs/1000ft (555 kg/km)

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-40°C To +90°C

Bend Radius

Stationary Min.	10.7 in (272 mm)
Installation Min.	10.7 in (272 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1685 UL Loading, FT4, IEEE 1202 FT4
NEC / UL Compliance	Article 336, Article 310, TC-ER, RHW-2, UL Flexible Motor Supply Cable
AWM Compliance	AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
ICEA Compliance	S-95-658
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	P-07-KA070003-MSHA

History

Update and Revision	Revision Number: 0.724 Revision Date: 04-01-2026
Footnote	C - CRATE REEL PUT-UP.
