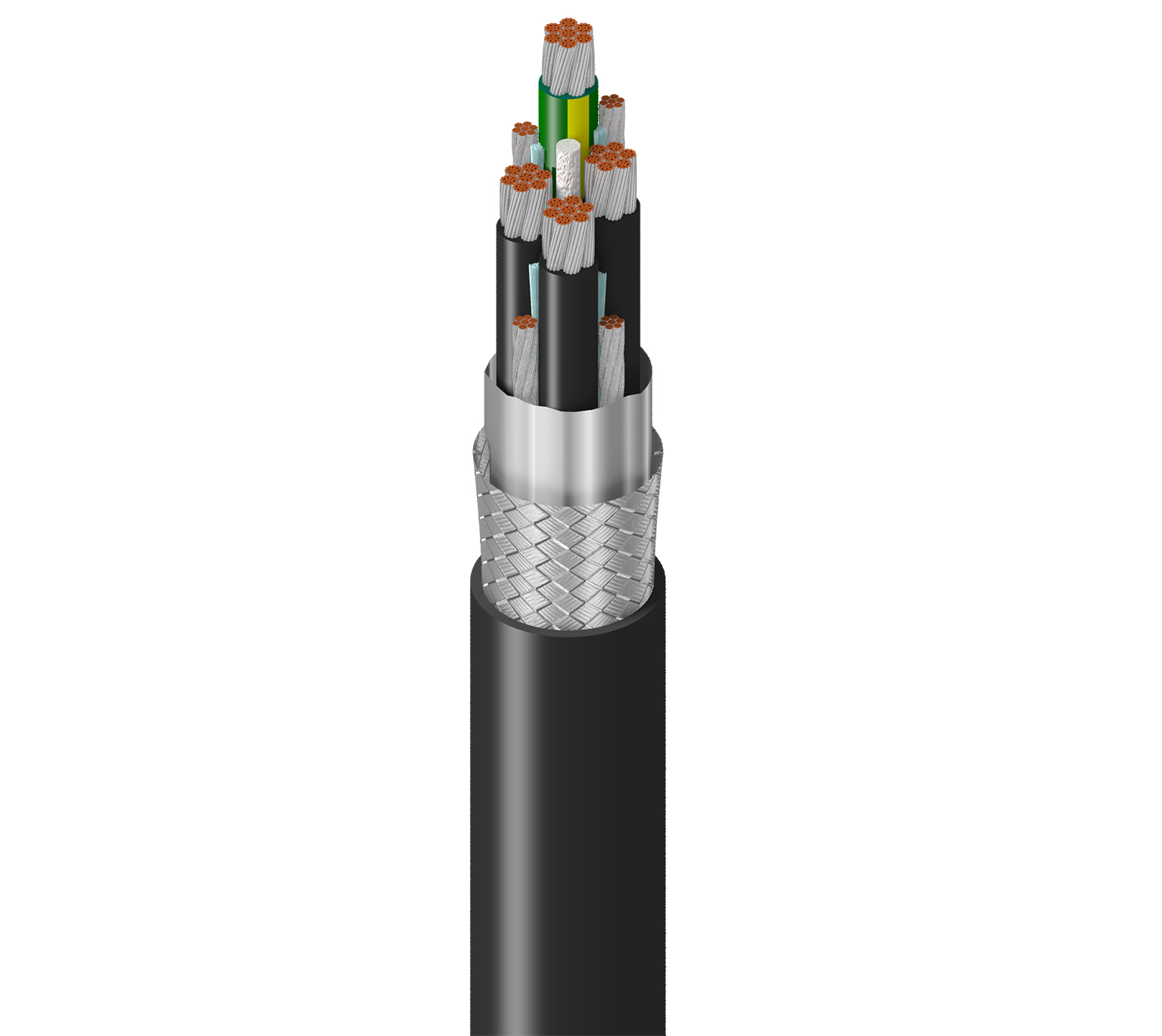

VFD 300% Gnd, 3C+G #2 Str TC, XLPE Ins+PVC Grd, OS+TC Brd w/4-#8 TC Drains, Blk LSZH Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC
Belden 300% Ground Flexible VFD, 3 Conductor 2AWG (7x19x23) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/4-8AWG Tinned Copper Drains, Black LSZH Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC SUN RES DIR BUR
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
29507T is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| 29507T 0101000 | Black | Reel | 612825137405 | Order online |
| 29507T 0102000 | Black | Reel | 612825137412 | Order online |
Specifications
Information
| Put-Up Type | Reel |
|---|---|
| Update and Revision | Revision Number: 0.374 Revision Date: 02-20-2026 |
Product Overview
| Suitable Applications | Variable Frequency Drives (VFD); AC Motor and Drive Systems; Human safety applications with flame or toxicity concerns (low smoke, zero halogen); Class 1 Division 2 Hazardous Locations |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 1.344 in (34.14 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 2 AWG | 7x19x23 | TC - Tinned Copper |
| Ground | 1 | 2 AWG | 7x19x23 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Conductor(s) | XLPE - Cross-Linked Polyethylene (Thermoset) | 0.062 in (1.6 mm) | Black and Numbered |
| Ground | PVC - Polyvinyl Chloride | 0.062 in (1.6 mm) | Green/Yellow Stripe |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.105 in (2.67 mm) |
| Nom. Diameter | 1.344 in (34.14 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 0.15 Ohm/1000ft (0.49 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 48 pF/ft (160 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 86 pF/ft (280 pF/m) |
| Nom. Characteristic Impedence | 37 Ohm |
| Nom. Velocity of Prop. | 55% |
| Max. Current | 130 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 1000 V (TC, WTTC, UL Flexible Motor Supply Cable) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 3327 lbs (1509 kg) |
|---|---|
| Bulk Cable Weight | 1655 lbs/1000ft (2463 kg/km) |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | -25°C To +90°C |
Bend Radius
| Stationary Min. | 16.1 in (409 mm) |
|---|---|
| Installation Min. | 16.1 in (409 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL1685 FT4 Loading |
| NEC / UL Compliance | Article 336, TC-ER, WTTC, UL Flexible Motor Supply Cable |
| ICEA Compliance | S-95-658 |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.374 Revision Date: 02-20-2026 |
|---|
