Product Number: 29505T

VFD 300% Gnd, 3C+G #6 Str TC, XLPE Ins+PVC Grd, OS+TC Brd w/4-#12 TC Drains, Blk LSZH Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC

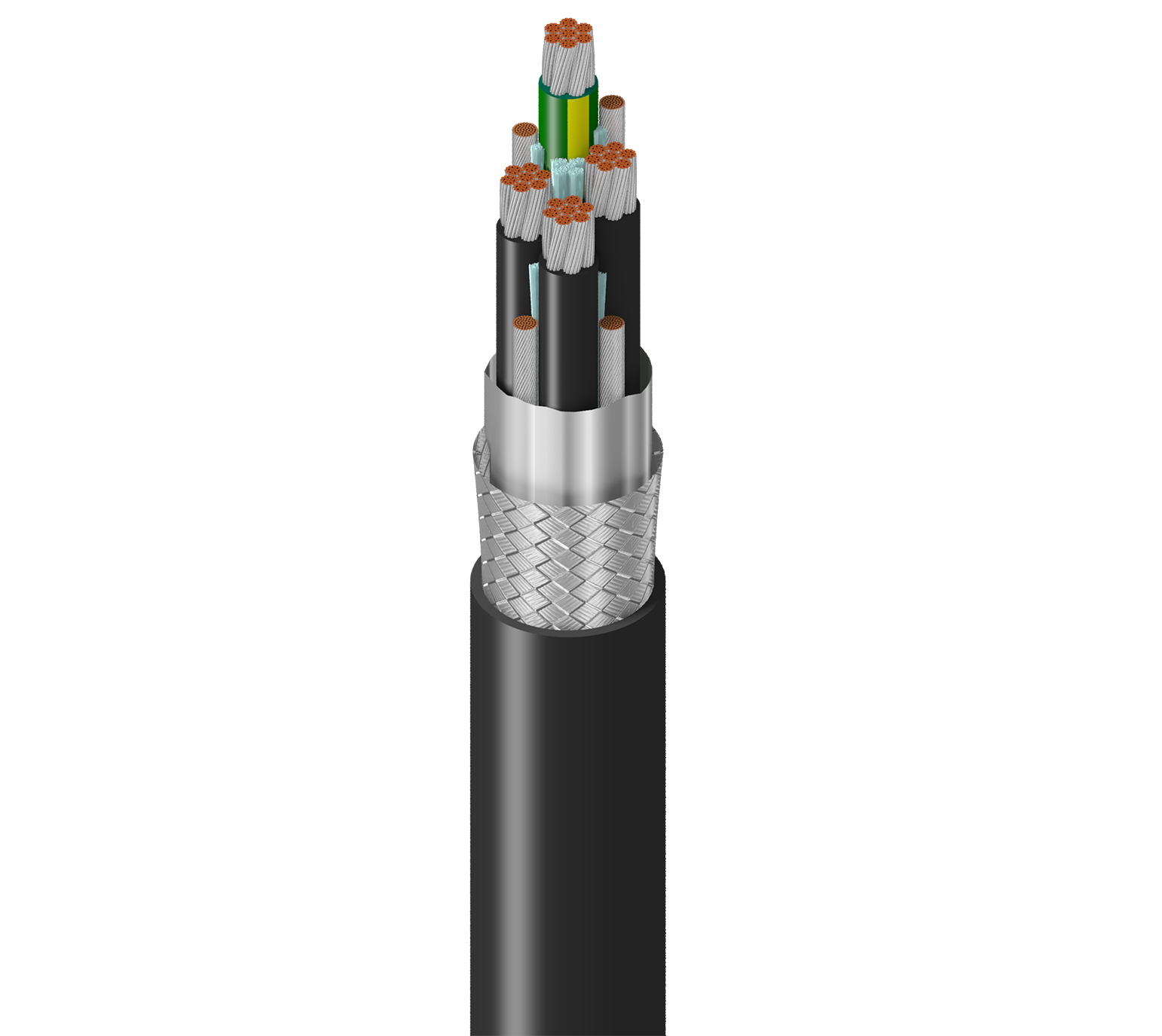

Belden 300% Ground Flexible VFD, 3 Conductor 6AWG (7x19x27) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/4-12AWG Tinned Copper Drains, Black LSZH Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

29505T is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
29505T 0101000	Black	Reel	612825137191	Order online
29505T 0103500	Black	Reel	612825137207	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.264 Revision Date: 02-20-2026

Product Overview

Suitable Applications	Variable Frequency Drives (VFD); AC Motor and Drive Systems; Human safety applications with flame or toxicity concerns (low smoke, zero halogen)

Construction Details

Overall Cable Diameter (Nominal)	1.002 in (25.45 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	6 AWG	7x19x27	TC - Tinned Copper
Ground	1	6 AWG	7x19x27	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Color Code
Conductor(s)	XLPE - Cross-Linked Polyethylene (Thermoset)	0.062 in (1.6 mm)	Black and Numbered
Ground	PVC - Polyvinyl Chloride	0.062 in (1.6 mm)	Green/Yellow Stripe

Outer Shield

Shield Type	Material	Coverage
Tape	Tri-Laminate (Alum+Poly+Alum)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	0.095 in (2.4 mm)
Nom. Diameter	1.002 in (25.45 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Conductor(s)
Nom. Conductor DCR	0.384 Ohm/1000ft (1.26 Ohm/km)
Nom. Inner Shield DCR	4.99 Ohm/1000ft (16.4 Ohm/km)
Nom. Capacitance Cond-to-Cond	23 pF/ft (75 pF/m)
Nom. Capacitance Cond-to-Shield	42 pF/ft (140 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	42 pF/ft (140 pF/m)
Nom. Characteristic Impedence	80 Ohm
Nom. Velocity of Prop.	55%
Max. Current	75 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	1000 V (TC, WTTC, UL Flexible Motor Supply Cable)

Mechanical Characteristics

Max. Pull Tension	1358 lbs (616.0 kg)
Bulk Cable Weight	782 lbs/1000ft (1160 kg/km)

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-25°C To +90°C

Bend Radius

Stationary Min.	12.0 in (305 mm)
Installation Min.	12.0 in (305 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL1685 FT4 Loading
NEC / UL Compliance	Article 336, TC-ER, WTTC, UL Flexible Motor Supply Cable
ICEA Compliance	S-95-658
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.264 Revision Date: 02-20-2026
