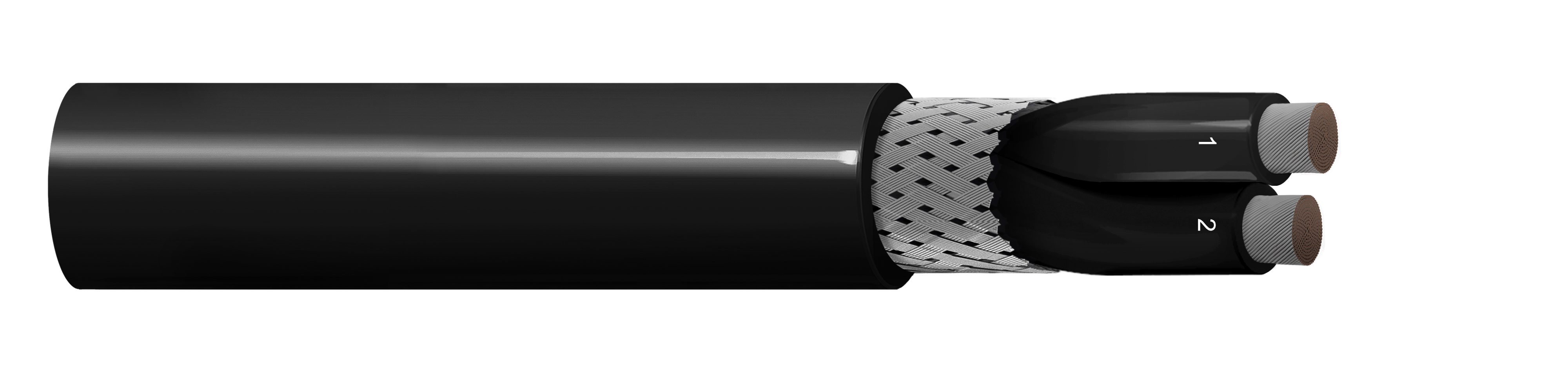

RailTuffTM Medium wall cable EN 50264-3-2 600V 2C50 MMS
RailTuffTM Rolling stock medium wall power cable, RMM2C50mm2, EN 50264-3-2, 600V, Tinned Copper Conductor, XLPO Insulation, XLPO Outer Jacket.
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 27.20 mm (1.071 in) |
|---|
Conductor
| Size | 50 mm2 |
|---|---|
| Stranding Class | Class 5 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | XLPO - Crosslink Polyolefin |
| Nom. Insulation Diameter | 11.60 mm (0.4567 in) |
| Color Code | Black 1, Black 2 |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 80% |
Outer Jacket
| Material | XLPO - Crosslink Polyolefin |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | 0.393 Ohms @ 20 Deg C |
|---|
Voltage
| Voltage Rating | 600/1000 V |
|---|---|
| Breakdown Voltage | 3.5 kVac/5min. |
Mechanical Characteristics
| Bulk Cable Weight | 1312 kg/km (881.6 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C to +120°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-24, EN 50266-2-4 |
|---|---|
| ISO/IEC Compliance | IEC 60228 |
| CENELEC Compliance | EN 45545-2 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 , IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | TJ/CL 313 |
Product Notes
| Notes | EN 50264-3-2 Table 5 Category MMS; Toxicity test on both insulation and jacket as per EN 50305 Clause 9.2: ≦ 3; Toxicity test on both insulation and jacket as per EN 45545-2 Table 5-R15 and R16-HL3: ≦ 6 |
|---|
History
| Update and Revision | Revision Number: 0.14 Revision Date: 05-31-2024 |
|---|
