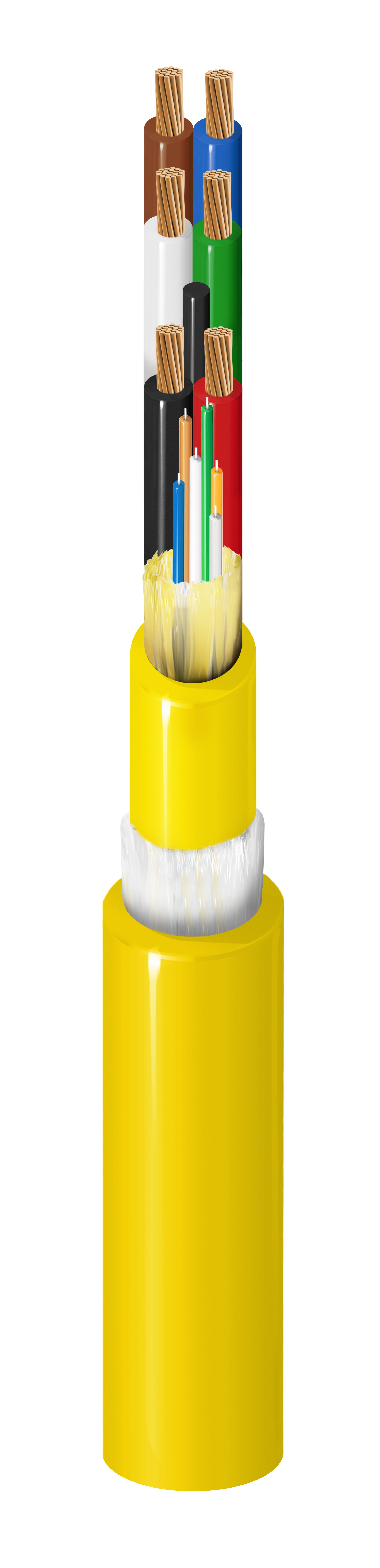

HYBRID INDOOR OS2 DISTRIBUTION 6 FIBERS 06 x 14AWG CMP-OF 5MM SUB X 900UM
FX HYBRID INDOOR, OS2, DISTRIBUTION, 6 FIBERS, 06 x 14AWG, CMP-OF, 5MM SUB X 900UM, YELLOW JACKET
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Distributed Antenna Systems (DAS), Passive Optical Network (PON), Wireless Access Points (WAP), Security (Cameras) |
|---|
Fiber Specifications
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|---|
| Fiber Buffer Material | Plenum PVC |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 6 |
| Fiber Color Code | TIA-598-D |
Fiber Construction
| Fiber SubUnit Strength Members | Aramid yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nominal Jacket Diameter | 0.195" (5 mm) |
| Jacket Color Fiber Unit | Yellow |
Conductor Specifications
| AWG Size | 14 |
|---|---|
| Number of Conductors | 6 |
| Insulation Material | PVC |
| Nom. Insulation Diameter | 0.090" (2.3 mm) |
Outer Jacket Specifications
| Strength Member | Fiberglass Yarns |
|---|---|
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.426" (10.8 mm) |
| Outer Jacket Color | Yellow |
Optical Characteristics
| Wavelength | Max. Attenuation |
|---|---|
| 1310 nm | 0.5 dB/km |
| 1550 nm | 0.5 dB/km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15 x cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 600 lbf (2670 N) |
| Max. Tensile Strength During Operation | 180 lbf (800 N) |
| Crush Resistance | 220 N/cm |
Temperature Range
| Installation Temperature Range | 0°C to +60°C |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| NEC / UL Compliance | CMP-OF |
|---|
History
| Update and Revision | Revision Number: 0.6 Revision Date: 05-05-2026 |
|---|
