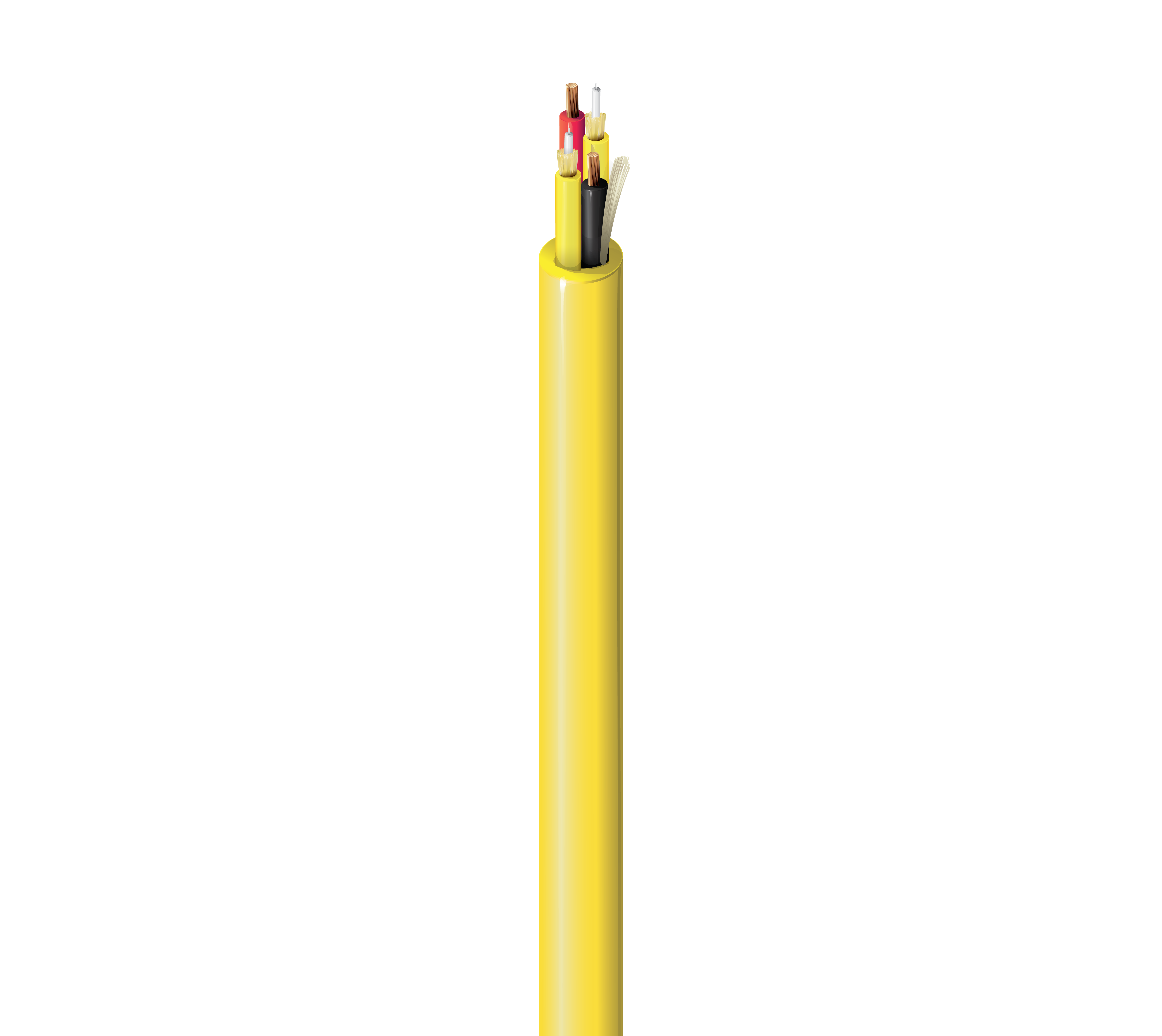

Indoor Hybrid Copper-Fiber Cable, OS2, 2 Breakout Fibers, #1-2c, CMR-OF
FX HYBRID INDOOR, OS2, BREAKOUT, 2 FIBERS, 02 x 16AWG, CMR-OF, SUB-UNIT 2.0MM (1F X 900UM), YELLOW JACKET
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Distributed Antenna Systems (DAS), Passive Optical Network (PON), Wireless Access Points (WAP), Security (Cameras) |
|---|
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Core Diameter | 8.2/125 μm |
| Fiber Buffer Material | PVC - Polyvinyl Chloride |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 2 |
| Fiber Color Code | TIA-598-D |
Fiber Construction
| Fiber SubUnit Strength Members | Aramid yarns |
|---|---|
| Fibers Per Subunit | 1 |
| Nominal Jacket Diameter | 0.078 in. (2.0 mm) |
| Jacket Color Fiber Unit | Yellow |
Conductor Specifications
| AWG Size | 16 |
|---|---|
| Number of Strands | 19x29 |
| Conductor Type | TC - Tinned Copper |
| Number of Conductors | 2 |
| Insulation Material | PVC |
| Nom. Insulation Diameter | 0.087 in. (2.2 mm) |
Outer Jacket Specifications
| Jacket Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.303 in (7.7 mm) |
| Outer Jacket Color | Yellow |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.50 dB/km | 0.50 dB/km |
| Mode Field Diameter | 9.2 μm | 10.4 μm |
| 1 Gigabit Ethernet Performance | 5000 m | -- |
| 10 Gigabit Ethernet Performance | 10,000 m | 40,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 1335 N (300 lbf) |
| Max. Tensile Strength During Operation | 400 N (90 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 49 lbs/kft (73 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| NEC / UL Compliance | CMR-OF |
| ICEA Compliance | S-120-742 |
| TIA/EIA Compliance | ICEA S-120-742 |
History
| Update and Revision | Revision Number: 0.25 Revision Date: 02-15-2024 |
|---|
